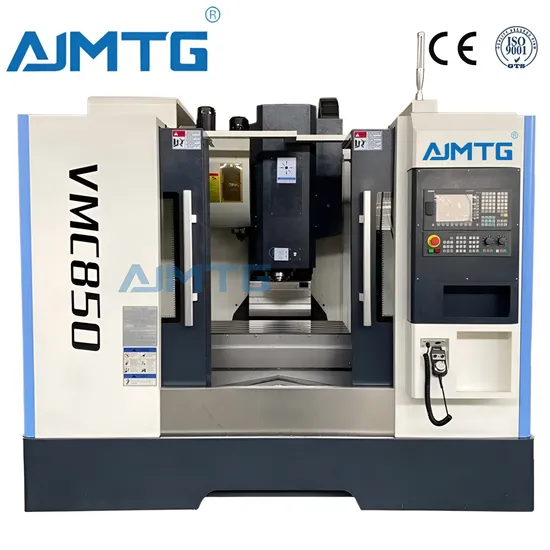

Ajmtg Graphite Milling Machine Origin China
Basic Info.
Model NO.
VMC850A
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Transport Package
Good Wooden Case
Specification
2800x2500x2700
Trademark
AJMTG
Origin
China
HS Code
8457101000
Production Capacity
1200 Sets Per Year
Product Description
Welcome to Nantong AJ Industry Limited! Explore our AJMTG Graphite Milling Machine from China. We offer high precision CNC equipment for efficient metal cutting. Contact us for customized CNC solutions!Discover the AJMTG Graphite Milling Machine from Nantong AJ Industry Limited, offering high precision vertical CNC machining with advanced Japan technology. Elevate your metal cutting capabilities with this quality CNC equipment.
Vmc650 Vmc850 Vmc1270 Vmc1060 CNC Machining Center
Nantong AJ Industry Limited
Introducing our well-sold Vmc650 Vmc850 Vmc1270 Vmc1060 CNC Machining Center, designed for precision metal cutting and drilling. This 3/4/5-axis horizontal machine offers versatility and accuracy for various machining tasks.
Key Features:
X-axis Travel: 800mm
Y-axis Travel: 500mm
Z-axis Travel: 500mm
Spindle Speed: 8,000 RPM
Spindle Motor: 7.5kW
Tool Magazine Capacity: 24
Table Size: 1,000mm x 500mm
Spindle Taper: BT40
Control System: CNC (any brand)
Our CNC Machining Center is ideal for mechanical processing and mold making, offering precise milling, drilling, tapping, and boring capabilities. With high-quality components like Japan-made spindles and Taiwan ball screws, this machine ensures top-level machining accuracy.
Don't miss the opportunity to enhance your machining capabilities with our Vmc series. Contact us today for inquiries and establish a reliable partnership for your machining needs!
Specifications :
| Machining range | X axis travel | 800mm |
| Y axis travel | 500mm | |
| Z axis travel | 500mm | |
| Spindle nose to worktable | 150-650mm | |
| Spindle to column guide | 550mm | |
| Worktable | Worktable size | 1000x500mm |
| T slot | 18X5X90mm | |
| Weight load | 500kgs | |
| Spindle specification | Spindle | 8000rpm belt drive Japan make |
| Spindle motor | 7.5kw | |
| Spindle taper | BT40(Ø140) | |
| Feed system | G00 fast feed | 48/48/36m/min |
| G01 cutting feed | 1-10000mm/min | |
| Servo motor | 2*2*3kw | |
| Tool system | Capacity | 24 tools arm type Taiwan make |
| Main parts | Make | |
| Ball screw | Taiwan C3 grade diameter 40mm, pitch 12/16mm | |
| Linear guide | Taiwan HIWIN or Germany 35mm pin roller type | |
| Spindle | Taiwan diameter 140mm , 8000 rpm | |
| Tool magazine | Taiwan BT40-24 tools arm type | |
| Bearing for 3 axis | Germany or Japan Nachi, Screw Angle Support Bearing 30X62 | |
Export Certificate for AJMTG Graphite Milling Machine from Nantong AJ Industry Limited, China. High precision CNC equipment for metal cutting tools.
