Straw Pellet Making Machine Straw Pelletizer Machine Biomass Straw Fuel Pellet Production

Product Description

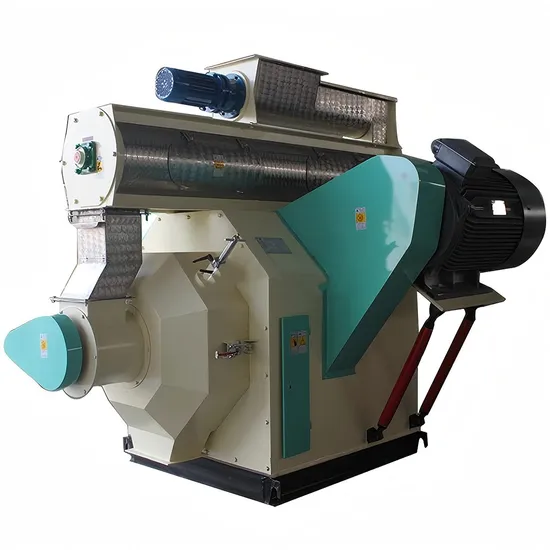

Straw Pellet Making Machine
Application: Straw fuel pellet plant, straw pellet feed plant
Capacity:0.7-40 T/H
Main Power:22-280 KW
Model:HKJ45J
The straw pellet making machine is a biomass pelletizing machine that uses corn straw, cotton straw, flax straw, soybean straw, rice straw, wheat straw and other agricultural waste as raw materials. It has the advantages of high efficiency, environmental protection, and energy saving. It is solidified and formed into high-density pellet fuel and pellet feed through pretreatment and processing, which can not only save energy but also reduce emissions, economic benefits and social benefits. This straw pellet machine is widely used in the field of agricultural production, greatly It facilitates people's work and saves time.
Features of straw pellet making machine Jastec straw pellet making machine can be applied to a wide range of raw materials, has good pellet forming effect, and has strong support from the governments of many countries. It has the following technical advantages:
The main drive adopts high-precision gear rotation, and the efficiency is about 15% higher than that of the belt drive type. The ring die adopts a quick-release hoop type; The transmission part of the whole straw biomass pellet mill machine uses high-quality imported bearings and oil seals to ensure efficient, stable transmission and low noise; Internationally advanced compensating serpentine spring coupling, with novel structure, compactness, safety and low failure performance; Intensify the working intensity of the main working parts in terms of materials, heat treatment and other processes, so as to meet the granulation requirements of straw pellets; There are a number of innovative designs on the ring die, which mainly improve the ring die's cracking prevention, increase in hourly output, and increase in total output; Configure an overload protection device to increase the service life of the straw pellet press equipment; The feeding auger, conditioner, and door cover are made of stainless steel to avoid contamination of raw materials due to equipment corrosion and have a longer service life.
Our straw pellet making machine can be used for processing fuel pellets, feed pellets and fertilizer pellets. However, for different pellet products, the designs of the agri straw pellet machines we provide are different, but their working principles are basically the same.
However, when processing feed, due to the differences in customer formulas, a conditioner needs to be configured to increase the content of the material. Ripeness for feeding to livestock.
working principle of straw pellet making machine
Stainiess steel feeder,jmported inverter contral,feeding evently corredily.
Suiriess stoel conditioner it an keep stcan conlact with an material completely big opening. window for checking and cleaning
Double motor d tiven,high strengh SPB bel,stable workingJow noise.
The size confimmed by cushomer,i can produce difle rent size of feed pellet its easy to dhange ring die,t can save time and incremse the eficiency

Parameters of straw pellet making machine

Model	HKJ45
Capacity	6-12t/h
Die Diameter	400 mm
Pellet Size	2-8 mm
Main Power	55 kW*2
Conditioner Power	4 kW
Feeder Power	1.5 kW
Die Type	Ring Die
Voltage	380V / 50Hz
Dimensions	2300x2330x2090mm(Single layer conditioner)
	2300×2330×2525mm(Double layer conditioner)
Weight	3200kg(Single layer conditioner)
	3500kg(Double layer conditioner)
Noise Level	≤75 dB

straw pellet making machine projects Straw pellet business plan Uses of straw pelletsIn rural areas, discarded straw is often piled randomly or burned directly, causing serious pollution and waste. After using a straw pellet making machine to make straw into granules, it can be widely used in large biomass power plants, cooperatives, farms, straw processing and other fields:
As Biomass Fuel:
When burning straw pellets, almost no dust, residue and harmful gases are produced. It is an environmentally friendly, low-carbon, renewable fuel. Therefore, straw pellets can be widely used in biomass boilers, water heaters, industrial furnaces and other equipment to replace traditional fossil fuels. As Animal Feed:
Straw is rich in nutrients such as cellulose, hemicellulose, and minerals. However, due to the particularity of the raw materials, it is difficult to be directly digested by animals. However, during the production process of straw pellets, high temperature and pressure can be used to make the nutrients in the straw easier to digest, and thus can be used as high-quality animal feed. As Soil Conditioner:
Straw particles can become high-quality organic fertilizer after biodegradation, which can change soil properties and improve soil fertility and water and fertilizer retention capabilities. At the same time, straw particles contain nutrients such as trace elements and minerals, which can provide rich nutrients for the growth of crops. FAQ
1.Why make straw pellets?
Straw pellets processed by a straw pelletizing machine have the following advantages:
Environmental protection:
Straw pellets are a low-carbon fuel that does not produce harmful gases and exhaust gases when burned, and has no pollution to the environment. Renewable:
Straw is a rich agricultural resource, and its cultivation and harvesting will not damage the environment and ecological balance. Instead, waste straw is made into pellets, which can be fully utilized and regenerated. Economic:
The raw materials of straw pellets can be directly sourced from rural areas, reducing energy costs and employment problems for the rural poor.
2.Complete wood pellet manufacturing process?
3.Why Choose Jastec?
More professional and better understand you. 1. Engineers who can work for machinery overseas (all prefectures).
2. JASTEC overseas service centers are available (Showroom in europe,north america,southeast asia).
3. Overseas third-party support is available (europe,north america,asia).
4. JASTEC engineers have more than 15 years of professional experience in the drying industry, engaged in design,mechanical drawing, electrical automation editing, etc.
5. JASTEC have rich experience in project management and advanced on-site construction technology; We have gained
good performanceand a well-known reputation.
Company Profile
Jastec(Shanghai) Technology Co., Ltd is a professional supplier of food deep processing (include food additive) machinery. It integrates develop, sales, after-sale services as a whole, being a professional supplier for extraction equipment, drying equipment, mixing equipment, grinding equipment and turnkey project for food(include food additive)and agriculture industry etc. Jastec has passed the Occupational health and Safety Management System Conforms to the standard CE,SGS etc. As the members of China National Standardization technique Committee for Industrial Equipment,testified by experience of long-term users, our machine and production line have very high stability and reliability, which have been sold to more than 160 foreign countries like Asian, African,European, American. Jastec have established branch offices and showrooms in Europe and North America. For many years, we`re stick to the principle of "Customers First" taken the initiative to manage customers` demands, to develop and research high-quality, low energy cost but efficiency equipment, set up a perfect after-sale service system, and brought up the concept of" Star service" The Jastec equipment is worth of your trust, Let`s join hands to co-develop a brilliant future in the 21st century full of opportunities! Brand from concentration--Our pursuit is to supply the best cost-effective machines in the world. In this 21-century full of opportunities and challenges, Jastec will provide new equipment and more pragmatic spirit of innovation, cooperate with you and create brilliance!
