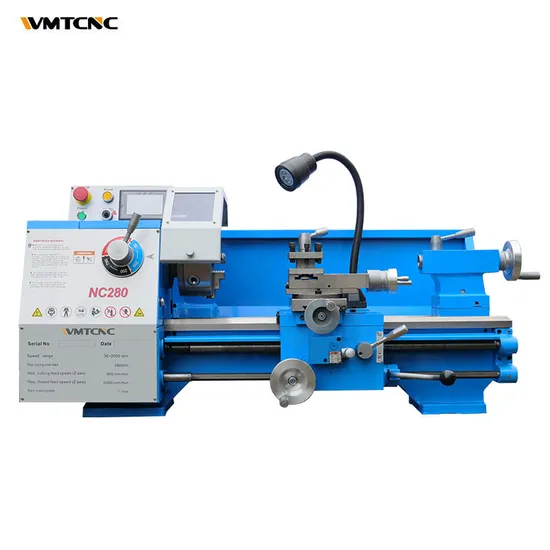

NC280 High Precision New Metal Manual Lathe Machine Digital Bench Lathe

Product Description

Product Description
Main Features:1. Suitable for turning internal and external cylindrical surfaces, end faces, tapered surfaces and metric and imperial threads, etc.
2. Widely used at home and abroad in small and medium-sized enterprises, research institutes,individual industries and repair industries.
3. With the corresponding function modules, other special cutting processes can be achieved.

Specification	NC280/500	NC280/750
Max. swing over bed	280mm
Max. swing over cross slide	165mm
Distance between centers	500mm	750mm
Main spindle hole diameter	38mm
Spindle taper	MT5#
Speed number	3 steps + changing within the range
Cross slide travel	185mm
Top slide travel	75mm
Max.feed speed of thread tooling	6000mm/min(choosing suitable tooling depth)
Thread pitches	Any pitches within the max. feed speed
Max.toolpostlongitudinal feed per revolution	0.01~2mm/r
Max.toolpost longitudinal feed speed	900mm/min(choosing suitable tooling depth)
Max.toolpost cross feed per revolution	0.005~1mm/r
Max. toolpost cross feed speed	450mm/min(choosing suitable tooling depth)
Max. tailstock barrel travel	75mm
Tailstock barrel taper	MT3#
Spindle speed range	30~2000 rpm
Tailstock quill taper and travel	MT4/100mm
Main motor power	1.1kW
Overall Dimension	117×73×60cm	142×73×60cm
Packing size	131×77×75cm	153×77×75cm
N.w/G.w	260/300kg	270/320kg

Detailed Images
Company Profile

FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
