Small Lightweight Foam Gas Beton Autoclaved Aerated Concrete AAC Acc Alc Flyash Block Panel Machine Plant Indonesia

Product Description

50cbm small lightweight aac flyash block plant(2.4m)

NO.	Main Equipment	Model	Qty.
1	Ball mill		No need
2	Slurry tank	15m3	3
3	Slurry pump	80YS80-20	4
4	Pouring mixer	Dia1.6m,37kw	1
5	Ferry car	3kw	1
6	Cement silo	50t	1
7	Lime silo	50t	1
8	Batching Control system	PLC: Siemens Inventor:Schneder	1
9	Demould crane	Travel,lift,open mold semiautomatic	1
10	mold	2.4*1.2*0.6	14
11	Side plate	2.4*1.2*0.6	62
12	Steam trolley	2.4*1.2*0.6	24
13	autoclave	Dia2*16m	2
14	boiler	3ton,coal	1

Basic Introduction:
Lightweight Autoclaved Aerated Concrete AAC Block Machine and Good Price
Autoclaved Aerated Concrete (AAC) is a siliceous material (sand, fly ash and silicon tailings such
as waste porcelain clay, stone processing waste materials, blast furnace slag, etc.) and calcareous
materials (lime, cement) as the main raw material, mixing fat gas agent (aluminum powder), by
ingredients, mixing, casting, pre-raising, cutting, autoclave, curing process made of light porous
silicate products, because by the hair contains a lot of gas even after the small pores, hence the
name of aerated concrete.
Advantage of AAC:
1. Lightweight: Porosity achieve 70% to 85%, volume density is generally 500 ~ 900kg/m3, as 1/5 of
general concrete the 1/4of clay, the 1/3 of hollow brick, and similar with wood can float in water. It can
reduce building weight, reduction in the cost of integrated building.
2. Fireproof: Most of the major raw materials is inorganic materials, so it has good fire resistance,
and do not emit harmful gases when meet fire. Fire 650 degrees, as a refractory material, the thick
up of 90mm walls can reach to 245 minutes fire resistance, 300mm thick up wall can reach to 520
minutes fire resistance.
3. Sound insulation: Due to a unique porous structure, so it has a sound absorption capacity. The
sound absorption capacity can reach of 10mm thick wall up to 41 db.
4. Insulation: As the material inside has a large numbers of the pores and porous, which has a
good thermal insulation properties. The Thermal conductivity is 0.11-0.16W/MK, as 1/4-1/5 of
brick. Typically, the insulation effect of 20cm thick aerated concrete wall is equivalent to 49cm
thick solid brick walls ordinary.
5. Permeability: Result of material by the composition of many independent small pores,
the moisture absorption is slow, in the volume of absorbent is 5 times of clay saturation do.
When used in the bathroom, the wall can be treated to interface directly paste tiles.
6. Anti-seismic: The same building structure, improve the two seismic than the brick level.
7. Green: Manufacturing, transportation, all use the process of pollution, to protect arable land,
saving energy, is one kind of a green building material.
8. Durability: material strength is stability, in the specimens tested after one year of atmospheric
exposure; the intensity increased by 25%, and remained stable after ten years.
9. Shortcut: it has good machinability, can be sawed, planed, drilled, nailed, and available
appropriate as bonding of adhesive material, so create favorable conditions for building construction.
10. Economies: An integrated lower cost than using more than 5% of solid clay bricks, and can
increase the usable area, greatly enhance the utilization of floor space.

Requirements for Raw Materials:

1	Sand		JC/T622-1996
				Excellent goods	First-class goods	Qualified goods
	SiO2	silicon dioxide	≥	85%	75%	65%
	K2O+Na2O	kalia+sodium oxide	≤	1.50%	3.00%	5.00%
	SO3	sulfur trioxide	≤	1.00%		2.00%
		clay	≤	3.00%	5.00%	8.00%
		water ratio	≤	8.00%
		calcium carbonate (coral, sehll, etc.)	≤	10.00%
		impurity (bark, grass roots)		N/A
2	Flyash		JC409-91
				Excellent goods	First-class goods	Qualified goods
	Finess(0.045mm square screen left)		≤	30%	45%	55%
	Water requirement of normal consistency		≤	50%	58%	60%
	loss on ignition		≤	7%	12%	15%
		SiO2	≥	40%	40%	40%
		SO3	≥	2%	2%	2%
3	Lime		JC/T621-1996
				Excellent goods	First-class goods	Qualified goods
	A(CaO+MgO)	Available calcium	≥	90%	75%	0.65
	MgO	magnesia	≤	2%	5%	8%
	SiO2	silicon dioxide	≤
	CO2	carbon dioxide	≤			0.07
		degesting speed min	≤	5--15
		degesting temperature ºC	≥	60--90
		undigested residue	≤	5%	10%	0.15
	Fineness of finished product (remainder above 0.08mm hole screen)		≤	10%	15%	0.2
4	Cement		GB175-1999
					Chemical composition
	SiO2	silicon dioxide			21-23 %
	Al2O3	aluminium sesquioxide			5-7 %
	Fe2O3	iron sesquioxide			3-5 %
	CaO	calcium oxide			64-48 %
	MgO	magnesia			4-5 %
5	Aluminium powder		JC407-2000
	Type	Code	Solids content		activated aluminium in solids	Foaming rate (%)
			≥		≥	4min	16min	30min
	Oil-based formulation	GLY-75	75%		90%	50-80%	90%	99%
		GLY-65	65%
	Water-based formulation	GLS-70	70%		85%	40-60%
		GLS-65	65%

Main Equipments in AAC Production Line:
· Material-milling Equipments:
a. Crusher: Lime, gypsum, and such kind of bulk material need to be crushed as the first step in AAC Plant.
b. ball mill: The AAC material must be fully grinded in order to make better reaction. Ball Mill is used widely,
it has two types: dry and wet, can be chosen upon requirement.
· Material Metering Equipments: Computer Control Automatic Metering System is commonly used as measurement
of raw materials.
· Material mixing and casting equipments: Mixer, it's the slurry mixing machine, also is slurry casting machine.

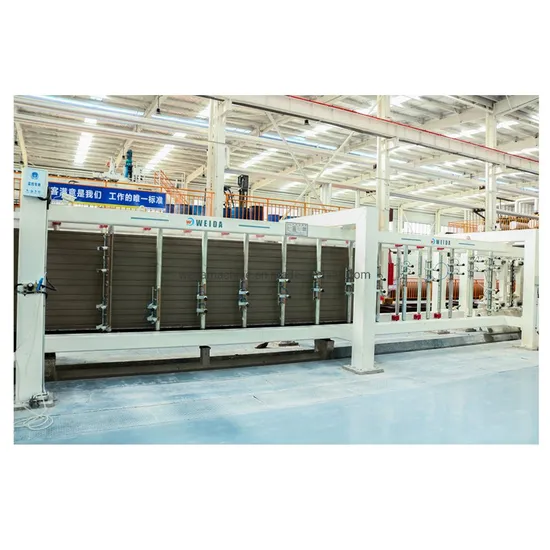

· Cutting Machine: the AAC block is formed after casting and pre-curing, as the size is too large, it must be
cut to achieve the required product size.
· Autoclave: Autoclave is a device for silicate hydration products to get physical and mechanical properties.
· Boiler: the boiler supports for the autoclave and pre-heat furnace and other facilities with heat.
· Auxiliary Equipments:
a. Mould Frame, Mould Bottom and Mould Car, they composed together to form the Casting Mould, which
is the main forming equipments in AAC Production line.
b. steam trolley, Ferry Cart and Hangers, they must be equipped as auxiliary equipments in autoclave curing
system.
c. Block Separator. The separator is a special machine whose function is to separator the plaste block into
piece,in order to be transfered and used.
d. Block packing machine.
