Polyamide Insulation Strip Extruder Production Line

Product Description

polyamide 66 Thermal Break Strip Extrusion Machine
Product Description Of polyamide6.6 Thermal Break Strip Extrusion Machine
The utility model mainly uses the special screw to make the polyamide nylon 66 and the glass fiber obtain good plasticization, and the extrusion die/tool extruded into a thermal insulating strip, which is widely applied to the doors, windows and curtain wall aluminum sheets through the different sections of the die.
PA66+GF pellets after drying machine into the hopper into the barrel, screw and pellets contact with the rotation of the screw forced to promote the spiral groove die direction. Because the screw barrel gap is small, the granular material is hot body under great pressure in the forward process; the temperature of the electric heating ring body is plasticizing nylon thermosol. Nylon plastic and plastic compression heating hot melt by extrusion molding, after traction, cutting or rolling process and become adiabatic adhesive tape products.

Why use polyamide 66 strip as thermal barrier function?
1. Because polyamide strip including Polyamide and glass fiber, Its Strength can reach requirement for aluminum profile window, door, curtain and walls.
2. Conductivity of polyamide strip is very low, prohibit hot air or cold air transferred from outside to inside, energy saving product.
Polyamide strip transforms aluminium window profiles into outstanding insulators
"Wear a process" heat insulation material - the current domestic thermal insulation strip is polyamide 66+GF25 (Polyamide66, commonly known as nylon 66+25% glass fiber)
1. main materials PA66+GF
2. density (g/cm3) 1.3
3. tensile strength (N/mm2 = 110)
4 .elastic modulus (N/mm2) 900
5 .thermal conductivity (W/m2.k) 0.3
6 .hot deformation temperature (ºC) 250

Application of polyamide strip:

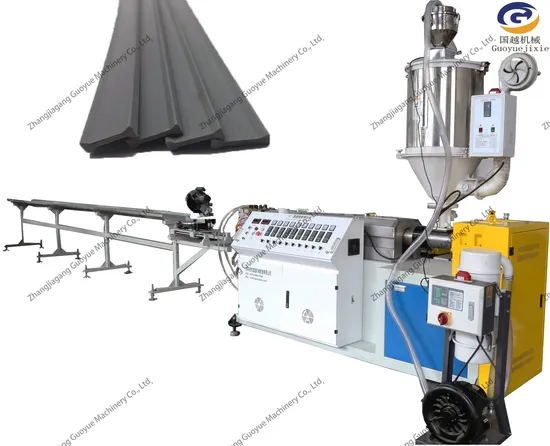

PA66GF25 polyamide extruder production line includes:
1. One main machine of plastic extruder
2. One automatic drying machine
3. One automatic suction machine
4. One set of mould
5. One cutting machine
6. One 6m worktable

MOLD
Packing
FAQ
Q:How to start the project?
A: Send the drawings of the required products, we will provide the quotation (the quotation includes the number of cavity, the price, the appropriate model of extruder)
Q: as a new participant in polyamide extrusion, how do we learn to use this machine?
A: We can invite customers to visit our factories in China and train our factory for a week
Question: can we customize and purchase raw materials and molds?
A: We customize and supply PA66GF25 raw materials according to Chinese, European and American standards... Can also cut any shape of polyamide profile mold.
We are a professional manufacturer of polyamide insulating tape and plastic extruder. We have our own factory with good quality and low price. I have rich experience to share with you. Study together and make progress together
Please feel free to contact us if you have any problems.
