New Mini Concrete Mixer with Pump Customization Concrete Mixer with Pump Machine

Product Description

Product Details
About Our Concrete Placing Pump
The concrete pump, also known as the concrete conveyance pump, can be divided into fine aggregate concrete conveyance pumps and concrete conveyance pumps. This equipment consists of a pump body and conveying pipes, and it is a machine that uses pressure to continuously transport concrete along pipelines. It can continuously perform both vertical and horizontal transportation of concrete, improving efficiency and saving labor. It is mainly used in the construction of buildings, bridges, overpasses, and tunnels.

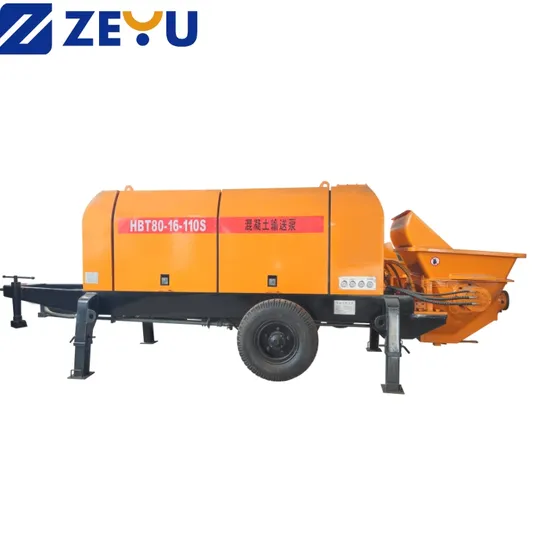

Electric/Diesel Concrete Pump
Our Concrete Pump features high-hardness alloy materials for extended life, high export pressure for long-distance and high-rise delivery, and an advanced air-cooling hydraulic system. It also includes a reversing pump function to reduce blockages, automatic lubrication for longer component life, and PLC control with a convenient wired remote for easy operation, ensuring reliable performance across various construction projects.
Concrete Mixing Pump
The Concrete Mixer Pump combines both mixing and conveying functions for concrete. It can mix the concrete while simultaneously pumping it to the specified location at the construction site. This equipment is ideal for small and medium-sized construction projects, especially in confined spaces or where efficient transportation is required. The pump uses high-pressure pumping technology, allowing for rapid delivery of concrete through pipelines, significantly improving construction efficiency and saving both labor and time. We offer customization options for both diesel and electric drive systems based on your specific needs.
Technical Specifications

Concrete pump product parameters
Items	Unit	HBT60-13-90	HBT80-13-110	HBT80-16-110	HBT80-18-132
Main Oil Pump		K3V112DT	K3V140D/Rexroth 260	K3V140D/Rexroth 260	K3V140D/Rexroth 260
Maximum Theoretical Delivery Capacity	M³	60	80	80	80
Maximum Discharge Pressure	Mpa	13	13	16	18
Maximum Pumping Frequency	pumping cycles/min	20	25	25	25
Maximum Allowable Aggregate Size	mm	40
Discharge Outlet Diameter	mm	φ180	φ180	φ180	φ180
Loading Height	m	1400	1400	1400	1400
Motor Power	kW	90	110	110	132
Rated Speed	r/min	1485	1485	1485	1485
Hydraulic Circuit Type		Open-Loop System	Open-Loop System	Open-Loop System	Open-Loop System
Maximum Hydraulic Pressure	Mpa	32	32	32	32
Maximum Oil Pressure	Mpa	12	12	12	12
Maximum Mixing Speed	r/min	40	40	40	40
Hydraulic Oil Tank Capacity	L	500	500	600	600
Maximum Towing Speed	Km/H	≤8	≤8	≤8	≤8
Overall Dimensions	Mm	6150/1950/2300
Gross Weight	Kg	5800	6300	6400	6500

Customer Photos and Reviews
Product Shipping and Delivery
Why Choose Us
ZEYU was established in 2007, initially focusing on the research and development, and production of concrete batching plants. Over the years, in response to the growing demand for personalized customer needs, ZEYU has gradually transformed into a provider of product solutions for the construction industry, earning the trust of an increasing number of clients.
Currently, ZEYU's business covers the following core areas: road solutions, bridge solutions, construction solutions, and construction waste recycling. We offer customized solutions based on your needs, covering everything from design and production to implementation, committed to
turning every idea of yours into reality.

FAQ
1. Is your company a direct factory with technical service capabilities and a quality control system? Yes, we are a direct manufacturer with a strict quality management system. You are welcome to visit our factory and see our production process. 2. Can you provide customized solutions for specific project needs? Yes, we specialize in offering customized solutions tailored to meet the specific requirements of different projects and site conditions. 3. What types of projects are your concrete pumps suitable for? Our concrete pumps are more suitable for small-scale projects. 4. How complex is the transportation and installation process? The transportation and installation process is simple and straightforward. 5. What is the lifespan and maintenance cycle of your equipment? Our concrete pumps are made from high-quality materials with precise manufacturing, ensuring long-term reliability. We also provide detailed maintenance schedules to help extend the lifespan of the equipment. 6. Do you support additional custom features? Yes, we can customize features and configurations based on your specific project needs to ensure the equipment perfectly matches your requirements. 7. How does your after-sales service work? We provide comprehensive after-sales support, including fast responses to technical inquiries, on-site assistance, spare parts availability, and regular maintenance services. 8. What is the delivery time for the concrete pumps? Typically, the delivery time is around 20 days. However, we can adjust the schedule to meet your project timeline and urgent requirements. 9. What is the working range of your concrete pumps? Our concrete pumps come in a variety of models designed for different project scales and site conditions. Please refer to our product catalog for specific details. 10. Is it possible to integrate your concrete pumps with other construction equipment? Yes, our concrete pumps can be seamlessly integrated with batching plants, placing booms, and other construction machinery, ensuring an efficient workflow.
