China Famous Water Tank Drum Blow Machine

Product Description

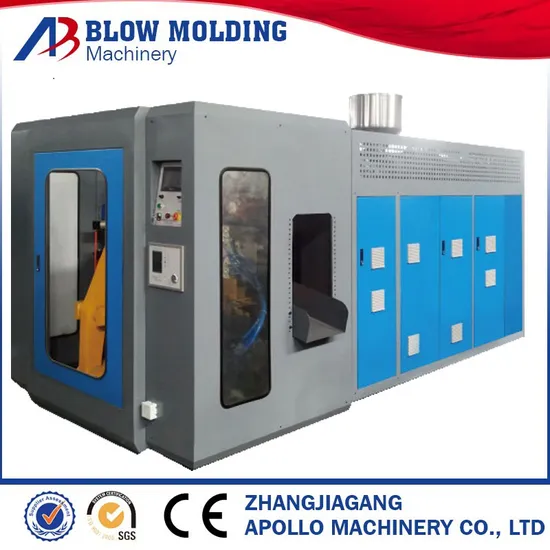

ABLB55 full automatic bottle making machine
was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 3.5L. This design is low power consumption and very stable.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 3.5L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

Max. Product volume	3.5L
Out put capacity	400~600pcs/h
Screw diameter	45mm
Screw L/D ratio	24:1 L/D
Screw drive power	10KW
Screw heating capacity	2.6KW
No.of heating zone	3 zones
Output of HDPE	35KG/H
Oil pump drive power	4.8KW
Clamping force	32KN
Max.size of mold	80-350mm
Mold stroke	250X 320mm
Max.die diameter	80mm
Blowing pressure	0.6mpa
Air Volume	0.4M³/MIN
Cooling water pressure	0.3mpa
Water consumption	30L/MIN
Size of Machine	2.6x1.4x2.2m
Weight of machine	2.8 ton

WARRANTY:
We warranty the quality of this machine for 12 months , if there is any problem with the machine ,or any main parts are broken, we will repair it or replace new for free. TRAINNING:The seller should train two or three operating man for free. (Travel and hotel is by buyer's expenses.) INSTALLATION AND TESTThe buyer should place the machine to the right position and inform the supplier after the machine reach the buyer's factory. The seller will send the engineer to test run the machine until it is running in normal state. The buyer will bear his round-trip air tickets, accommodation, and hotel and so on in BUYER'S side. Besides,the buyer will pay 100USD/day/person for technology fee. VALIDITY OF OUR OFFER:The offer is valid for any order placed within a period of 30 days. Unless otherwise stated, all conditions and terms are based on this list.
The offer is offered for the buyer's need in selecting and not act as the enclosure of contract. The contract is the only standard.
