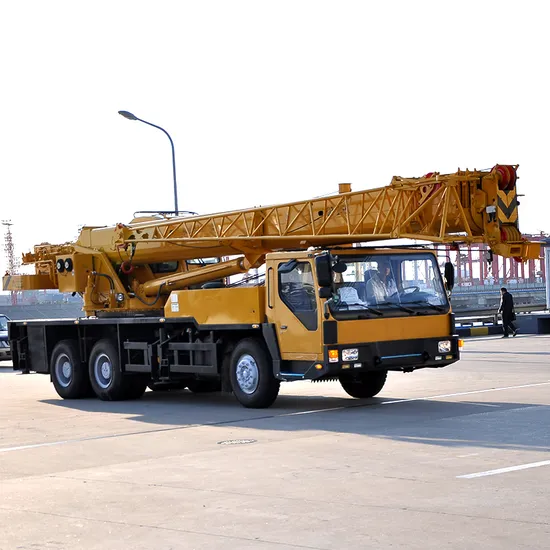

China Crane Manufacturers 25 Ton Lifting Crane Pickup Truck Crane Qy25K-II Truck Crane for Construction 4X4 Crane Truck with Wholesale Prize for Hot Sale

Product Description

Product Description
It is widely used in construction fields such as urban infrastructure (including subways and light rail), building/factory construction, and equipment auxiliary lifting. Advantages: 1.The temperature is controlled so operators are always comfortable.
2.Enough space to move.
3.With the use of icons, buttons on the control panels are easy to understand.
4.The controls have good feedback and movement is precise.
5.Professional cranes use tires with long service life 6.The crane support feet are mainly used to stabilize the balance of the main boom during use.7.Placing supporting feet can increase the stability of the crane and support the crane in transporting larger loads.8.It is designed to bear the weight and force during work to prevent the crane from overturning or shaking, thereby achieving safer and more efficient construction purposes.

Certifications

Dimension	Unit	QY25K5D
Overall length	mm	12300
Overall width	mm	2500
Overall height	mm	3350
Weight
Total weight in travel	kg	31750
Front axle load	kg	6550
Rear axle load	kg	25200
Power
Engine model		SC8DK280Q3
Engine rated power	kW/(r/min)	206/2200
Engine rated torque	N.m/(r/min)	1112/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	22
Min. ground clearance	mm	260
Approach angle	°	16
Departure angle	°	13
Max. grade ability	%	40
Fuel consumption for 100km	L	≈37
Main performance
Max. rated total lifting capacity	t	25
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.065
Max. lifting torque	kN.m	961
Base boom	m	10.4
Fully extended boom	m	39.5
Fully extended boom+jib	m	47.8
Longitudinal outrigger span	m	5.14
Lateral outrigger span	m	6
Working speed
Boom luffing time	s	68
Boom full extension time	s	150
Max. swing speed	r/min	2.5
Max. speed of main winch (single rope) (no load)	m/min	125
Max. speed of aux. winch (single rope) (no load)	m/min	125

Company Profile
SUPEREGN Industrial (Shanghai) Co., Ltd. is a leading Chinese construction machinery exporter, affiliated with SUPEREGN INDUSTRY LIMITED, located in the downtown of Shanghai City. Since our company was founded, we persistently introduce excellent Chinese construction machinery to international markets. We make more international customers know and approbate Chinese machinery, and gradually build up friendship with industrial customers all over the world.
SUPEREGN has passed the international quality management system of ISO9000, CE, SGS, UL and other products certification. Our export revenue increases constantly every year, and our products have already entered 168 countries across the continents of Africa, Middle East, South America, Oceania, Middle Asia, Southeast Asia, and East Europe. We sincerely hope to cooperate, develop together and build a good future with you. SUPEREGN, your genuine and professional
FAQ
HOW IS YOUR PRICE COMPARED WITH MANUFACTURERS / FACTORIES?We work as the leading dealers of vanous leading China construction machinery manufacturers / factories, and are constantly treated with best dealership price From numerous comparison and feedbacks from clients, our price is more competitive than the price from manufacturers / factonesHOW IS YOUR DELIVERY TIME?In general circumstance, we can have an immediate delivery of regular machines for our clients within 7 days, because we nave a vanety of resources to check machines in stock, locally and nation widely, and to receive machines in timely manner. But for manufacturers / factories, it will take more than 30 days to produce the ordered machine.HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?Our team is consisted of a group of diligent and dynamic people, working 24/7 to respond client inquiries and questions all the time.Most problems can be solved within 8 hours, while manufacturers / factories will take much longer to give response.WHICH PAYMENT TERMS CAN YOU ACCEPT?Normally we can work on T/T term or L/C term, sometime DP term.(1) On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of original B/L for long-term cooperating client.(2) On L/C term, a 100% irrevocable L/C without "soft clauses from an international recognized bank can be accepted. Please seek. the advice from the individual sales manager whom you work with.WHICH INCOTERMS 2010 TERMS CAN YOU WORK?We are a professional and sophisticated international player, can handle all INCOTERMS 2010 terms, and we normally work on regularterms such as FOB: CFR, CIF, CIP. DAP.HOW LONG WILL YOUR PRICE BE VALID?We are a tender and friendly supplier, never greedy on windfall profit. Basically, our price remains stable through the year. We only adjust our price based on to situations (1) The rate of USD: RMB varies significantly according to the intemational currency exchange rates:2) Manufacturers / factories adjusted the machine pice, bacause of the increasing labor cost and raw matenal cost.WHAT LOGISTICS WAYS YOU CAN WORK FOR SHIPMENT?We can ship construction machinery by various transportation tools.(1) For 80% of our shipment, the machine will go by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia etc, either by container or RoRa / Bulk shipment.(2) For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan.Turkmenistan etc, we can send machines by road or railway.(3) For light spare parts in urgent demand, we can send it by international courier service, such as DHL. TNT. UPS, or Fedex.
