Chemical Equipment Machinery Glass Lined Chemical Reactor 3000L
| US$1,000.00-100,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FK 160-3000L
Type
Tank Reactor
Material
Glass-Lined
Capacity
3000L
Structure
Filling Tube
Pressure
Low Pressure (0.1≤p<1.6MPa)
Agitator Model
Turbine Agitator
Tower Reactor Type
Spray Tower Reactor
Heating
Outside (Inside) Coil Heating
Heat Transfer Structure
Jacketed
Automatic Grade
Automatic
Condition
New
Certification
ISO9001
Storage Objects
Solid, Liquid
Shaft Seal
Packing Seal or Mechanical Seal
Usage
Chemical and Pharmaceutical Industries
Design Pressure
0.6MPa
Glass Thickness
0.8 mm to 2.0 mm
Customized
Customized
Desiga and Manufacturer License
1, 2 and 3 Level Pressure
Shipment
with 70-90 Days After Order Confimed
Design Temperature
200 Degree C
Anti Corrosion
Resist to Acid & Alkali
Transport Package
Iron Bracket
Specification
3000L
Trademark
Huateng Datang
Origin
China
HS Code
8419899090
Production Capacity
2000set/Year
Product Description
Category: Glass lined reactor
Product specification: 50L-6300L
Product standard: GB25025-2010, GB/T 150-2011
Product use: This glass-lined reactor is mainly used for large-scale chemical and pharmaceutical experiments. This kind of glass-lined reactor is also suitable for precision conditions of medium large-scale production such as chemical industry and pharmaceutical industry. As a hydrolysis, neutralization, crystallization, mixing, emulsification equipment, widely used in chemical, petroleum, medicine, pesticides, food, dyes and other industries.
| Series | FK Series | |||||||||||
| Basic Model | FK50 | FK60 | FK70 | FK80 | FK90 | FK120 | FK130 | FK160 | FK175 | |||
| Normal Volume(L) | 50 | 100 | 200 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 5000 | 6300 | |
| Actual Volume(L) | 101 | 179 | 324 | 483 | 744 | 1612 | 2168 | 2626 | 4118 | 6276 | 7242 | |
| (MPa) | Body | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Jacket | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | |
| Area of h.exch (m²) | 0.54 | 0.84 | 1.5 | 1.9 | 2.6 | 4.54 | 5.34 | 7.02 | 9.3 | 13.3 | 15.5 | |
| Type of Agitator | Impeller | |||||||||||
| Agitator(r/min) | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 | |
| Type of Shaft Seal | 212-50 | 212-50 | 212-50 | 212-65 | 212-65 | 212-80 | 212-80 | 212-80 | 212-95 | 212-95 | 212-95 | |
| Reducer(kw) | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 | 7.5 | |
| D1(mm) | 500 | 600 | 700 | 800 | 900 | 1200 | 1300 | 1300 | 1600 | 1750 | 1750 | |
| D2(mm) | 600 | 700 | 800 | 900 | 1000 | 1300 | 1450 | 1450 | 1750 | 1900 | 1900 | |
| H1(mm) | 200 | 235 | 275 | 310 | 335 | 410 | 435 | 435 | 520 | 558 | 558 | |
| H2(mm) | 400 | 500 | 700 | 800 | 1000 | 1200 | 1400 | 1745 | 1810 | 2328 | 2730 | |
| H3(mm) | 1012 | 1012 | 1056 | 1080 | 1126 | 1343 | 1343 | 1343 | 1427 | 1467 | 1467 | |
| H4(mm) | 330 | 380 | 380 | 380 | 480 | 600 | 600 | 600 | 700 | 700 | 700 | |
| H5(mm) | 70 | 70 | 90 | 100 | 125 | 180 | 180 | 180 | 160 | 150 | 150 | |
| B(mm) | 720 | 808 | 928 | 1028 | 1172 | 1478 | 1654 | 1654 | 1954 | 2152 | 2152 | |
| H(mm) | 1765 | 1966 | 2249 | 2420 | 2690 | 3217 | 3450 | 3795 | 4007 | 4570 | 5011 | |
| d(mm) | 300 | 360 | 420 | 480 | 540 | 700 | 700 | 700 | 800 | 850 | 850 | |
| (mm) Centre Cirde of Vent | 350 | 420 | 490 | 560 | 630 | 840 | 910 | 910 | 1120 | 1200 | 1200 | |
| Discharge Valve | DN65/32 | DN65/32 | DN80/50 | DN80/50 | DN80/50 | DN100/50 | DN100/50 | DN100/50 | DN125/80 | DN125/80 | DN125/80 | |
| (kg)Total Weight | 380 | 415 | 530 | 860 | 1095 | 1630 | 2160 | 2353 | 3022 | 4300 | 4970 | |
| Type of Supporting | Lug Support | |||||||||||
| Series | Shafthole | Manhole, Hand hole | Thermometer hole | Lens hole | Spare hole | Discharge hole | water,Gas inlet out nozzle | Lug Suppo | |||||||
| Bolt | Center circle | ||||||||||||||
| G | M(H) | T | S1 | S2 | N1 | N2 | N3 | N4 | N5 | B | P1 | L1-3 | |||
| FK50 | 65 | 80 | 50 | 50 | 50 | 40 | 65 | 20 | 4-φ24 | 720 | |||||
| FK60 | 80 | 125 | 80 | 40 | 65 | 65 | 65 | 65 | 20 | 4-φ24 | 808 | ||||
| FK70 | 80 | 125 | 80 | 40 | 65 | 65 | 80 | 80 | 20 | 4-φ24 | 928 | ||||
| FK80 | 100 | 150 | 100 | 80 | 80 | 80 | 80 | 80 | 25 | 4-φ24 | 1028 | ||||
| FK90 | 100 | 200 | 125 | 100 | 100 | 100 | 125 | 80 | 32 | 4-φ24 | 1172 | ||||
| FK120 | 125 | 300×400 | 100 | 00 | 25 | 150 | 125 | 100 | 100 | 100 | 32 | 4-φ30 | 1478 | ||
| FK130 | 125 | 300×400 | 100 | 125 | 125 | 150 | 100 | 125 | 125 | 100 | 50 | 40 | 4-φ30 | 1654 | |
| FK160 | 125 | 300×400 | 100 | 125 | 125 | 150 | 125 | 100 | 125 | 125 | 65 | 50 | 4-φ30 | 1954 | |
| FK175 | 125 | 300×400 | 125 | 125 | 125 | 150 | 150 | 125 | 150 | 125 | 65 | 65 | 4-φ30 | 2152 | |
Product features:

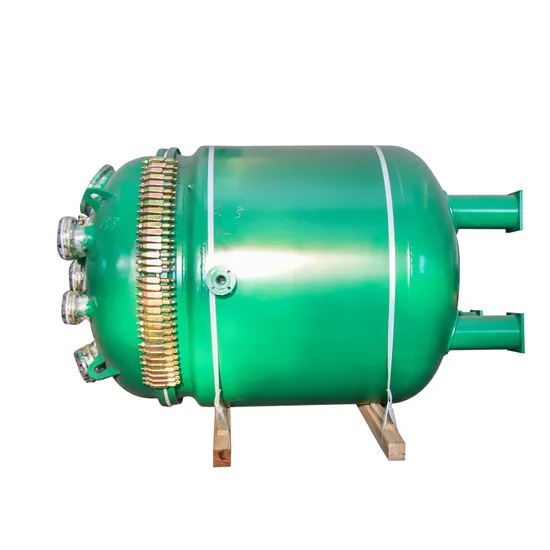

1.The open glass lined reactor is a separable cover combined reactor. The lid is fixed on the tank with clips and sealed by gaskets between them.
2. The glass-lined reactor of the specification section is generally suitable for large-scale chemical processes.
3.Because the lid can be separated from the tank, so this type of glass lined reactor has a variety of stirring methods to meet the different process needs of users.
4.Glass lined reactor has remarkable corrosion resistance, impact resistance and temperature fusion resistance characteristics, durable.
5.Open glass lined reactor production process using pipeline technology, reliable quality.
6.The type of open glass lined reaction kettle all use electric furnace firing, porcelain surface clean, should not explode porcelain.
7.After rust removal on the surface of the glass lined reactor, environmentally friendly water-based paint is sprayed to make the product more beautiful and generous.
