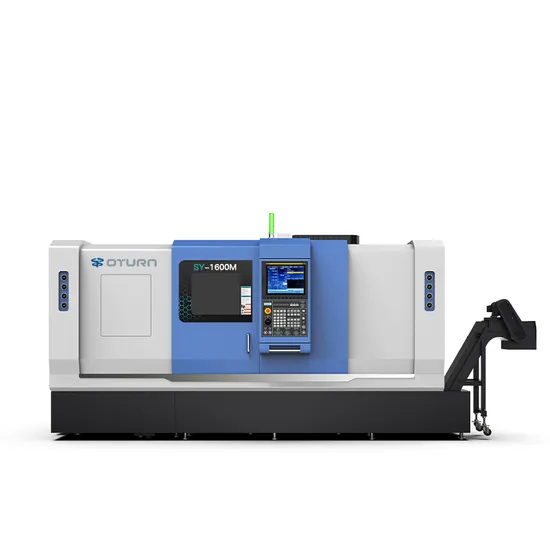

Single Spindle CNC Lathe Sy1600m with Taiwan Rotary Chuck and Precision Bearings

Product Description

Product Description
The two-axis lathe can process both ends of the workpiece at the same time in one clamping, which greatly simplifies manual operations, increases output and reduces processes. The second spindle enables full turning and expressly transfers workpieces during machining, thereby reducing cycle times. The machine adopts an optimized 30-degree inclined structure design, which also has high precision, super rigidity and excellent cutting stability. The strong structural lathe bed is made of one-piece high-strength HT300 cast iron and uses finite element analysis. The overall mechanical rigidity and stability are excellent, and it can maintain long-term reliable accuracy, improve processing stability and tool life, and stress relief treatment improves accuracy stability. The high-strength roller linear rail design structure, the transmission system adopts screw pre-tension design to improve the rigidity performance, and the simple and elegant appearance is in line with the trend of the trend.
Main features of this machine tool:
1. Adopt direct drive synchronous electric spindle device: magnetic ring incremental encoder (sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds. Effectively eliminate spindle vibration, and the nose deflection accuracy is within 0.002MM. Improve the surface finish of the workpiece, adopt a rear-mounted rotor, which makes installation and maintenance faster, the spindle motor is equipped with a cooling system to suppress the influence of thermal displacement and ensure a constant operating temperature of the spindle. The spindle system has undergone strict dynamic balance testing. The good accuracy retention, high rigidity and high efficiency enable the whole machine to not only complete finishing, but also perform rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high smoothness. product.
2. High rigidity integrated design servo power turret. It helps the servo turret's rapid and accurate tool changing performance, and when coupled with the power milling of a high-speed power axis, it achieves excellent turning and milling combined processing capabilities. The tool holder is installed using a high-rigidity BMT installation interface, and the power transmission shaft is driven by a servo spindle motor.
3. The machine tool is equipped with roller linear guides and ball screws. The heat-treated and precision-ground ball screws can ensure the best accuracy and durability. Each axis adopts a direct transfer axis structure and a double-anchor pre-relay method, which can make the heat The amount of displacement is minimized, greatly improving processing accuracy. The high-rigidity, large-sized, heavy-duty linear slide rails maintain intact accuracy when the machine is subjected to impact, and the displacement is smooth and low-noise, which can extend the service life.
4. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components to greatly reduce the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable.
5. It adopts Taiwan rotary chuck cylinder and optional automatic chip removal device, which can greatly reduce the labor intensity of the operator and achieve safe and efficient production. The above functional components can be programmed and controlled, and various functions can be designed and installed according to the special requirements of the user special fixture.

Product Parameters

Item	Unit	SY1600M
Max. swing diameter over bed	mm	Φ680
Max. processing diameter	mm	Φ400
Max. processing diameter over tool holder	mm	Φ50
Max. processing length	mm	1400
Spindle type	type	A2-8
Max. spindle speed	rpm	2100
Hydraulic Cylinder/ Chuck	lnch	10″
Spindle bore diameter	mm	Φ86
Max. bar diameter	mm	Φ72
Direct drive spindle motor power	kw	24
Direct drive spindle motor torque	Nm	160-390
X/Z axis travel	mm	320/1540
X/Z axis rail specifications	spes	Roller45
X/Z axis motor power	kw	2.9
Positioning accuracy	mm	±0.005
Repeatability	mm	±0.003
X/Z axis rapid speed	m/min	20/20
Power turret type	pcs	BMT65-12T
Power turret motor	KW	5.0
Max. power tool holder speed	rpm	5000
External diameter tool holder specification	mm	25X25
Internal diameter tool holder specification	mm	Φ50
Adjacent tool change time	sec	0.15
Programmable hydraulic tailstock	/	Hydraulic tailstock
Max. Tailstock travel	mm	1200
Tailstock sleeve tapered hole	type	Mohs5#
Sleeve diameter	mm	Ф80
Sleeve travel	mm	Fixed
Machine size	mm	4300x2110x2100
Machine weight	kg	7500
Cutting fluid tank volume	L	350
Cutting coolant water pump	kw	5
Hydraulic unit box volume	L	50
Hydraulic pump motor power	kw	1.5
Lubricat tank volume	L	2
Automatic lubrication pump motor power	W	50
Coolant water pump power	KW	1.5
