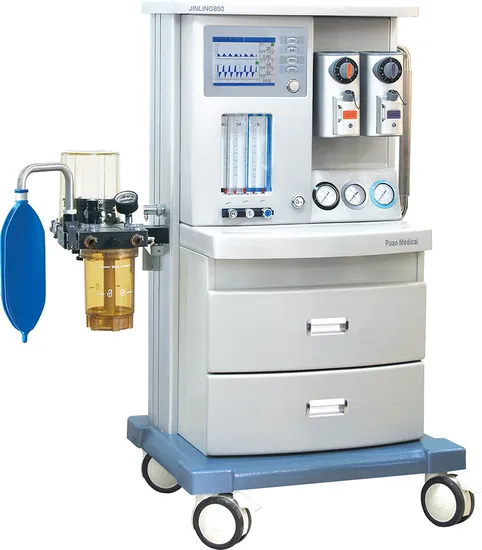

Hospital Professional Mobile Anesthesia Machine for Vet Hospital and Clinics Jinling-850 Standard Anesthesia Machine

Product Description

Product Description Hospital Professional Mobile Anesthesia Machine for Vet Hospital and Clinics JINLING-850 Standard Anesthesia Machine
Common Features
Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
Anesthesia Ventilator: Built-in 8.4 inch color TFT display, able-display Pressure-Time, Frequency-Time, Pressure-Volume and Frequency-Volume, displayed waveforms can be cycled instantly with a touch of a button
Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
Equipped with electronic pressure differential flow sensor, imported respiratory control valve, stable and reliable, rapid response time
High precision five tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
Alarms: Audible and/or visual alarms for tidal volume, airway pressure, oxygen concentration, asphyxia, power failure, oxygen failure and other alarms, also features a alarm query function
Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality
Advanced and stable Adjustable Pressure Limiting (APL) valve, suitable for low and ultra low flow anesthesia
Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C
Multi-parameter Patient Monitor: Optional
Specifications

Model	Jinling-850 (Standard Model)
Display	8.4 inch TFT display
Flowmeter Range	O2: 0.1-10L/min
	N2O: 0.1-10L/min
	Air: 0.1-10L/min
Ventilation Mode	IPPV, SIPPV, VCV, PCV, IMV, SIMV, MANUAL, Standby
Back-up Power Supply	At least 4 hours
Tidal Volume	Adjustable range: 20-1500ml
	Display range: 0-2000ml
Respiratory Rate	1-100bpm
Inspiratory/Expiratory (I:E) Ratio	8:1-1:10 (capable of inverse ratio ventilation)
PEEP Range	0-20cmH2O (electronically controlled)
Inspiratory Pressure Trigger Range	-10-10cmH2O (electronically controlled)
SIGH	1 sigh breath in every 80-120 breaths
Inhaled Oxygen Concentration Monitor	21-100%
SIMV Rate	1-20bpm
Inspiratory Plateau	0-1 second
Vaporizer Concentration Ranges	0-5%
Vaporizer Slots	Double PA-I type slots
