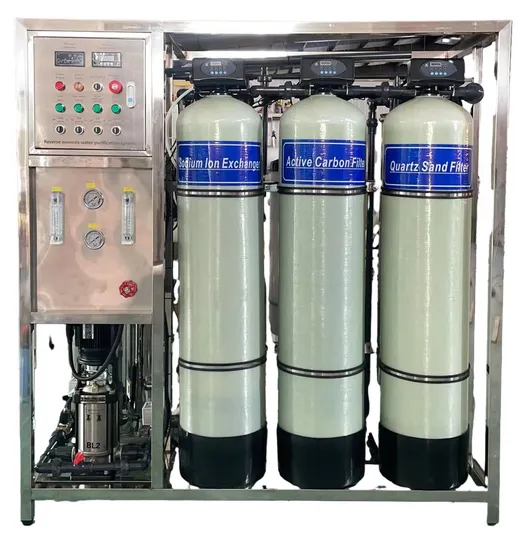

1000 Lph Mini RO Steel Reverse Osmosis Filter with Water Purifier

Product Description

Model NO.	OLP-RO1000L	Recovery Rate	50%
Designed Water Inlet	1000L/H	Outlet Flow	1000L/H
Membrane Housing	SS	RO Frame	SUS304
Tank Material	20-inch filter flask	Control Valve	Automatic
Control Valve Brand	NO	Pipe Material	UPVC
Transport Package	Wooden Case	Specification	2.315CBM
Core Components	Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor, PLC	Warranty	1 Year
Power	1.6 kw	Function	Producing Fresh Water
RO membrane	4040 Membrane	Material	20-inch filter flask
Type	Water Filter Parts

Product Description

Components	Function
Raw water pump	The raw water pump provides water for the pretreatment part of the reverse osmosis system, ensuring a stable water flow and the required pressure for efficient system operation, thereby effectively removing suspended solids and other pollutants from the water.
Quartz sand filter	The quartz sand filter is used in reverse osmosis water treatment systems to remove suspended matter, sediment and larger particles from the water, protect the subsequent reverse osmosis membrane and reduce the turbidity of the raw water.
Activated carbon filter	The activated carbon filter is used in reverse osmosis water treatment systems to remove organic matter, chlorine and odors from the water, thereby improving the water quality and protecting the reverse osm
Softening filter	The softening filter is used in reverse osmosis water treatment systems to remove calcium and magnesium ions in the water to prevent scale formation
Salt tank	The salt tank is used in the reverse osmosis water treatment system to store and dissolve regeneration salt to maintain the performance of the ion exchange resin and ensure that the system continues to effectively remove hardness and impurities from the water.
Precision filter	Precision filters are used in reverse osmosis water treatment systems to remove fine particles and suspended matter in the water to ensure the effectiveness and extend the service life of the subsequent reverse osmosis membranes.
High-pressure pump	High-pressure pumps are used in reverse osmosis water treatment systems to provide sufficient pressure to push water through the reverse osm
Reverse osmosis membrane housing	The role of seamless stainless steel membrane housings in reverse osmosis systems is to provide strength and corrosion resistance, withstand high-pressure operating environments, and ensure stable fixation and protection of reverse osmosis membranes, while reducing the risk of leakage through seamless design, and improving the sealing and reliability of the system.
Reverse osmosis membrane	Reverse osmosis membranes are used in reverse osmosis water treatment systems to sieve water molecules out through high pressure, effectively removing dissolved salts, heavy metals and organic pollutants in the water to achieve high-quality water purification.
Pressure regulating valve	The pressure regulating valve is used in reverse osmosis water treatment systems to precisely control the pressure of the water flowing through the reverse osmosis membrane, ensuring that the system operates efficiently under optimal operating conditions and preventing damage to the membrane.
Flushing solenoid valve	The backwashing solenoid valve is used in reverse osmosis water treatment systems to automatically control the backwashing process of the reverse osmosis membrane to remove contaminants and deposits from the

Reverse osmosis purification system
This system adopts stainless steel sand filter, active carbon filter effectively to remove big impure particles and suspending matters, improve RO membrane water inputting index, effectively remove the smell and rest chlorine of the original water, and improve the taste of water quality. The main machine adopts American high effective low-pressure compound film, with single film salt removing degree up to 99%. The high low-pressure protection imported form Korea ensures the breakdown low to 0, with the outputting water up to national pure water standard. Reverse osmosis device The reverse osmosis device is an equipment to purify the saline water under the action of pressure difference of semi permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Different materials have different osmotic pressures. The reverse osmosis method to adopt larger osmotic pressures id used to obtain the purpose to separate, extract purify and condense. More than 97% soluble salts and 99% glues, microbe, particulate and organic substances, etc can be removed by the reverse osmosis. It becomes the most idea equipment for modern pure water, hyper pure water, and airspace water. The remarkable characteristics of the equipment are shown as lower energy consumption, no pollution, simple techniques, high quality water, easy operation and maintenance. RO system including raw water pump, sand filter, active carbon filter, chemical doser, water softener,5 u m micro filter, reverse osmosis system, back washing system, sterilization, water tank and fittings Product Parameters
Working process:
raw water pump→sand Quartz sand filter→carbon filter→water softener→security filter→first high-pressure pump→Ro Systems→UV Sterilizer→Product Water Tank
