High Voltage Metallized Film Capacitor

Product Description

Product Description

High Voltage Metallized Film Capacitor

Product Features
High Reliability
Non-inductive Construction
Excellent Self-healing
Low ESL and ESR
Customization Available Physical Characteristics
Construction: Non-inductive wound metallized polyester
Case:Polyester film wrapped and epoxy end filled
Lead material: Axial solder coated or tinned solid wire
Lead strength: Capable ofwithstanding a five pound pull force on lead axis Electrical Characteristics
Rated Voltage:1KV-35KV(DC) 0.6KV-10KV(AC)
Capacitance:0.001uF-20uF
Dissipation Factor:<0.01(20ºC,1KHZ)
Insulation Resistance::≥30000MQ(20ºC.2min.500V)
Test Voltage:120% or 140% ofrated voltage for30 seconds
Operating Condition:-40ºC~+85ºC at full rated voltage,to +85ºC with 25% voltage derating
Tolerance:±5%+10%Application
X-ray Equipment, High Voltage Power Supply, Multiplier,Electrical System

Typical Characteristic Curves

Selection Table
	2KV			4KV			6KV			8KV			10KV			12KV			15KV			20KV
Capacitanoe		D (mm)	Lead	(mm)	D (mm)	Lead	D mm) mm)		Lead	(mm)	D (mm)	Lead	(mm)	D (mm)	Lead	L (mm)	D (mm)	Lead	(mm)	D (mm)	Lead	L (mm)	D (mm)	Lead
UF	Max	Max	AWG	Max	Max	AWG	Max Max		AWG	Max	Max	AWG	Max	Max	AWG	Max	Max	AWG	Max	Max	AWG	Max	Max	AWG
0.001	30	6	22	29	7	22	37	7.5	22	45	8	22	50	9	22	60	8	22	72	8	22	72	11	20
0.0015	30	6	22	29	7.5	22	37	8	22	45	9	22	50	10	22	60	9	22	72	9	22	72	13	20
0.0022	30	6	22	29	8	22	37	9	22	45	10	22	50	11	22	60	10	22	72	11	22	72	15	20
0.0033	30	6	22	29	9	22	37	11	22	45	12	22	50	12	22	60	12	22	72	12	22	72	17	20
0.0047	30	6.5	22	29	10	22	37	12	22	45	14	22	50	14	22	60	13	22	72	14	22	72	20	20
0.0056	30	7	22	29	11	22	37	13	22	45	15	22	50	15	22	60	14	22	72	15	22	72	21	20
0.0068	30	7	22	29	12	22	37	14	22	45	16	22	50	16	20	60	15	20	72	16	20	72	23	20
0.0082	30	7	22	29	13	22	37	15	22	45	17	22	50	18	20	60	16	20	72	18	20	72	25	20
0.01	30	8	22	29	14	22	37	16	22	45	18	22	50	19	20	60	18	20	72	19	20	72	28	20
0.015	30	9	22	29	16	22	37	19	22	45	22	22	50	23	20	60	21	20	72	23	20	72	33	20
0.022	30	10	20	29	19	20	37	23	20	45	26	20	50	27	20	60	25	20	72	27	20	72	40	20
0.033	30	11	20	36	16	20	49	19	20	62	21	20	81	24	20	71	29	20	72	33	20	72	48	20
0.047	30	12	20	36	18	20	49	22	20	62	25	20	81	28	20	71	34	20	82	36	20	92	46	20
0.056	30	13	20	36	20	20	49	24	20	62	27	20	81	30	20	71	37	20	82	40	20	92	50	20
0.068	30	14	20	36	22	20	49	26	20	62	30	20	81	33	20	71	40	20	82	43	20	92	55	20
0.082	30	15	20	36	23	20	49	28	20	62	32	20	81	36	20	71	44	20	82	47	20	113	45	20
0.1	30	16	20	36	26	20	49	31	20	62	35	20	81	39	20	00	37	20	117	40	20	113	50	20
0.15	46	15	20	48	17	20	85	30	20	81	40	20	81	7	20	00	45	20	117	49	20	113	60	20
0.22	46	17	20	48	20	20	85	35	20	81	48	20	100	53	20	00	53	20	117	58	20
0.33	46	20	20	48	24	20	85	42	20	81	58	20	100	65	20	00 65		20
0.47	46	23	20	48	28	20	85	46	20	81	69	20
056	46 24 20			48 30		20
0.68	46	27	20

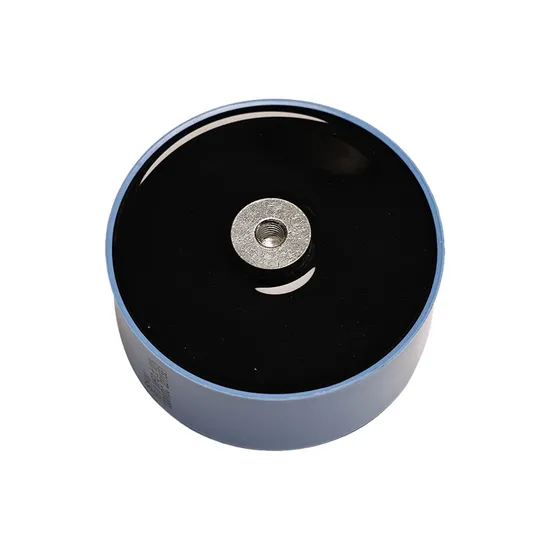

High Voltage Metallized Film Capacitor

Product Features
Large Current and High Overvoltage With standing.
Self-healing
Low ESR and ESL.
Operating Condition up to 105ºC
Long Life.
Customization Available
Physical Characteristics
Construction:
Non-inductive wound metallized polyester or polypropylene
Case:
Self-extinguishing plastic case (UL 94-V0)resin filled
Terminal:
Male connection(M8x20mm,max torque 8.5Nm)Female connection (M8x7.5mm, max torque 2.5Nm)
Electrical Characteristics
Rated Voltage:300V-2500V(DC)
Capacitance:1uF~400uF
Tolerance:+5%±10%
Insulation Voltage:7kVrms/60sec/50Hz(between shorted terminals and earth)
Test Voltage:150% of rated voltage for 10 secondsat 25ºC
Operating Condition:-40ºC~+105ºCApplication
Induction Heating, Speed Converter System,Power Supplier and Resonant Convertor,Electrical Vehicle,Replace Electrolytic Capacitor,Traction,Welding, Wind Mill, Energy Storage

Structural Diagram

Male Connection

Female Connection

Selection Table

Hybrid Vehicle Power Capacitor

Product Features
Specific Design for Hybrid Vehicle.
High Reliability
Non-inductive Construction
Excellent Self-healing
Customization available
Physical Characteristics
Construction:Non-inductive wound metallized polypropylene
Case:PBT plastic (customization available based on requirement)
Lead material: Soldering lugElectrical Characteristics
Rated capacitance:300uF~3000uF±5%±10%
Tolerance:
Rated voltage:450V~900V(DC)
Outstanding voltage between terminals:1.5Rated Voltage
Outstanding voltage between terminals and case:2500V(AC)
Overvoltage:1.5Rated voltage
Insulation resistance:≥10000MΩ(20ºC,2min,500V)
Dissipation factor:2×10-4
ESR:≤0.1mΩ
Self-inductance:≤5nH
Rated current:Up to 250Arms
△C/C0:≤±3%
Operating Condition:-40ºC~+105ºC(1.25 voltage derating per ºC over 85ºC)
Max.Relative Humidity:95Main Products
Company ProfileSHV is a leading designer and manufacturer to supply high quality Metallized Film Capacitors and Thick Film Resistor to the varied needs of global High Voltage applications.
Committed to working closely with customers on new product development and alternatives, SHV accumulates plenty of know-how in "built-in" requirement, covering High Voltage Power Supplier, Medical Devices, Electron Microscope, Electrostatic Precipitation, Hybrid/Electric Vehicle fields in the past 40 years.
