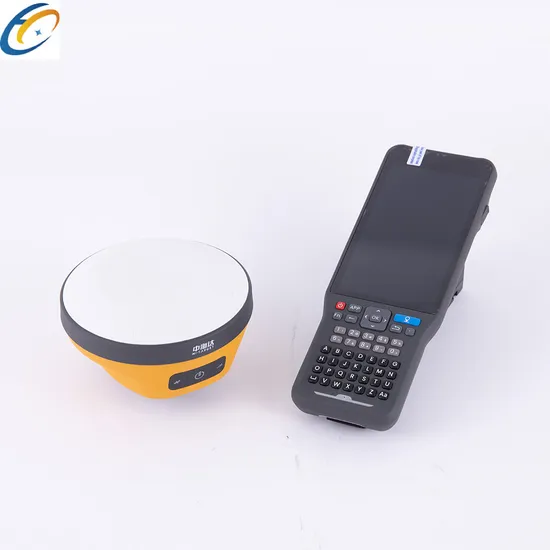

Hi-Target V200 Gnss Rtk with New Imu

Product Description

Key Features :
1. The new IMU can be measured by shaking it
2. Built-in integrated battery
3. Fast charging, can be fully charged in 1 hour
4.Small size, easy to carry Higher Accuracy and Precision Equipped with the High-Performance Patch Antenna,
enhances the low elevation angle tracking capabilities
and keeps it maintaining a high gain
for higher elevation satellites while tracking low-elevation satellites. More Stability
Hi-Target Hi-Fix enables continuous connectivity and quality results even if you lose the signal while using the RTK base station or VRS network under extreme circumstances.
Greater Flexibility
It can bring accurate and reliable results
and boost efficient fieldwork with
self-developed built-in IMU and core algorithm.

V200 specification
Channels	800+
Satelite Tracked	GPS:L1/ L2/ L5/L2C
	BeiDou:B1/ B2/ B3/B1C/B2a
	GLONASS: L1/L2/L3
	Galileo:E1/ E5 AltBOC/E5a/E5b/E6
	QZSS:L1/L2/L5/L6
	SBAS: L1/ L5
	IRNSS:L5
Static and Fast static Gnss Surveying
Horizontal	± (2.5+0.5× 10-6d) mm (D is the distance between measured points)
Vertical	± (5+0.5× 10-6d) mm (D is the distance between measured points)
Post Processing Kinematic (PPK / Stop & Go ) GNSS Surveying
Horizontal	8mm+1ppm RMS
Vertical	15mm+1ppm RMS
Initialization time	Typically 10 min for base while 5 min for rover
Initialization reliability	typically > 99.9%
High-precision static GNSS Surveying
Horizontal	±(8+1×10¯6D)mm (D is the distance between measured points)
Vertical	:±(15+1×10¯6D)mm D is the distance between the measured points
Code Differential GNSS Positionnig
Horizontal	±0.25m + 1 ppm RMS
Vertical	±0.25m + 1 ppm RMS
SBAS
Positioning accuracy	0.50m Horizontal, 0.85m Vertical
Real Time Kinematic (RTK)
Single Base	Horizonta:8mm+1ppm RMS
	Vertica:15mm+1ppm RMS
Network RTK	Horizonta:8mm+0.5ppm RMS
	Vertical:15mm+0.5ppm RMS
	Initialization time:Typically <10s
	Initialization reliability:Typically > 99.9%
Communication
Internal UHF Radio	Frequency: 410-470MHz
	Channels:116 (16 adjustable)
	Transmitting power:0.5W,1W,2W
	agreement:Hi-Target, Trimtalk450S, trimmarkIII, Transeot, SATEL-3AS,South,CHC,ect
	Working Range:3-5km typical, 8-10km optimal
HI-TARGET External UHF Radio(Standard)	Frequency: 403-473MHz
	Transmitting speed:Up to 19.2Kbps
	Channels:116 (16 adjustable)
	5W,10W,20W,30W adjustable
	Working Range:8~10km typical,15~20km optimal
IMU(Tilt Survey)	Built-in high-precision inertial navigation, automatic attitude compensation, no correction, anti-magnetic interference, instant measurement at the point of arrival;
Network Communication
Full band support for cellular mobile network(LTE, WCDMA, EDGE, GPRS, GSM) 2.4GHz WIFI, supports 802.11b/g/n. Network RTK (in CORS) range is 20-50km
Physical
Dimensions(W×H)	132mm*67mm
Weight	≤0.83kg (includes battery)
Shock and vibration	Designed to survive a 2m(9.84ft) natural fall onto concrete
Water/Dustproof	IP67
Humidity	100% condensing
Operation temperature	-30ºC~+70ºC
Storage temperature	-40ºC~+80ºC
Bluetooth	2.1+4.0
NFC	NFC flash even
A serial port	RS232 serial port
Control Panel	Physical button
Energy consumption and working hours
Electrical	Power 6V to 28V DC external power input
	Power consumption≤4.2W
	Built-in high-capacity lithium battery 6800mAh/7.4V, support USB PD3.0 super fast charging, charging time <3.5h
Internal Battery Life	Static more than 10 hours
	RTK rover (UHF/GPRS/3G)6-10 hours
	RTK base more than 10 hours
Data Formats
1Hz positioninng Output, up to 50Hz. CMR, RTCM2.X, RTCM3.0, RTCM3.1, RTCM3.2. Navigation outputs ASCII NMEA-0183, GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA,ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS, Binary: Trimble GSOF, NMEA2000
