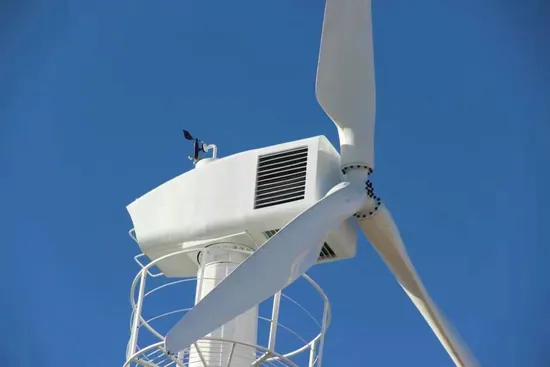

Horizontal 50kw AC 380V 50Hz Household Wind Power Geneator System

Product Description

Horizontal 50KW 380V 50Hz Household Wind Turbine AC 3-Phase Output
G-Type Product Features:
1.Carbon steel body, compact, safe.
2.Reinforced glass fiber blades, matched with optimized aerodynamic shape and structure,which enhance the wind energy utilization and annual output.
3.Patented permanent magnet ac generator with special stator,effectively reduce torque, well match the
wind wheel and generator, and ensure the performance of whole system.
4.Tail adopts mechanical yaw technique, making it survive storm and run safely.
5.With epoxy zinc rich primer and polyurethane anti-corrosion treatment, be ultraviolet-proof, acid rain resistant, salt resistant.
6.Intelligent automatic grease injection, which ensure flexible running and durable life.

Model	SHJ-WH10K	SHJ-WH20K	SHJ-WH30K	SHJ-WH50K	SHJ-WH100K
Rated power(w)	10KW	20K	30K	50K	100K
Maximum power	12kw	23K	33K	55K	110K
Rated voltage(v)	120/220	220/360	360V	360V	360V
Wheel diameter(m)	7.8	10	12	18	22
Start-up wind speed(m/s)	2.5
Rated wind speed(m/s)	10
Survival wind speed(m/s)	45
Blades number	3
Working form	permanent magnet synchronous
General case	Carbon steel
generator	Three phase permanent magnet ac generator
Controll system	Electonically controlled yaw protection
Speed regulation	Electronically controlled yaw
Lubrication	Grease injection
Working temperature	-40~80
Magnetic steel	NdFeb
Blades material	Reinforced glass fiber

Drawings
Production flow
Raw material ⇒ cutting ⇒machine ⇒ welding ⇒ painting ⇒
coiling ⇒ assembling ⇒ testing ⇒ packing
Off grid wind generator system

50kw wind generator suits farms, remote houses, mines, villas, hotels, parks, some small industrial equippments etc, matched with solar panel, hybrid system, a constant and efficient power supply

1. Q: Is installation easy?
A: Yes, very easy. Every customer can do it by themselves. We supply you all the components and the isntallation manual.
2. Q: Is our wind enough for a wind generator?
A: Our wind generator can start running at low wind speed 3m/s, so if your average annual wind speed is more than 5m/s, it can works well.
3. Q: Which model should I choose?
A: If you are not sure to choose the model, please contact our sales with the following points:
1. What appliance do you want to run by the system? How much watts are they? How long do they work?
2. Your average annual wind speed.
3. What kind of system do you want? On-grid or off grid?
4. Q: Can I only buy parts of the whole system?
A: Yes, you can only buy wind turbine, controller, inverter etc.
Our service
1. We can design different systems of wind turbine for customers according to your requirements. For example, on-grid or off-grid, solar and wind hybrid system or solar wind diesel generator system.
2. All long-term technical support and parts cost supply.
3. 24 hours on-line---Your enquiries will be replied within 24 hours.
