S5731-S48P4X 02353AJH S5731-S Series 48*Poe+ 10/100/1000base-T Ports+4*10ge SFP+ Ports Network Switch

Product Description

Product Description
S5731-S48P4X (02353AJH/02353AJH-001/02353AJH-003
Industrial Gigabit Ethernet Switch, Fiber Optical Network Switch, SFP Fast Fiber Optic Switch Source Factory Supply

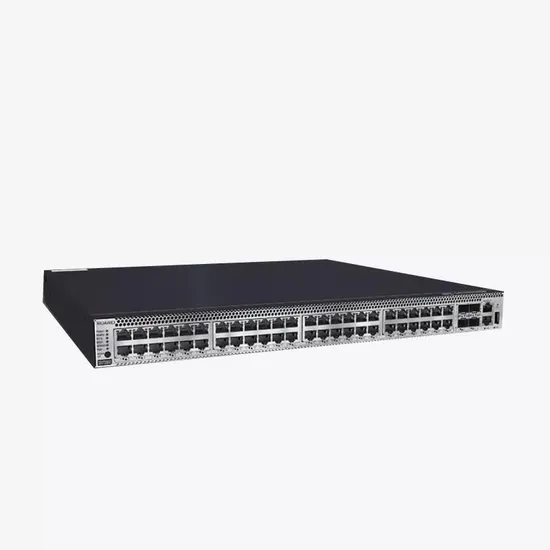

HW CloudEngine S5731-S48P4X 10GE SFP+ ports Detailed Photos

Product Parameters

Item Description Memory (RAM) 2 GB Flash 1 GB in total. To view the available flash memory size, run the display version command. Mean time between failures (MTBF) 54.96 years Mean time to repair (MTTR) 2 hours Availability > 0.99999 Service port surge protection Common mode: ±6 kV Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) Weight (with packaging) 8.8 kg (19.40 lb) Stack ports 10GE SFP+ ports on the front panel RTC Supported RPS Not supported PoE Supported Rated voltage range AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC DC input: -48 V DC to -60 V DC Maximum voltage range AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz High-Voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC Maximum power consumption (100% throughput, full speed of fans) Not providing the PoE function: 132 W 100% PoE loads: 1750 W (PoE: 1440 W) Typical power consumption (30% of traffic load, tested according to ATIS standard) 108 W Operating temperature -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). Storage temperature -40°C to +70°C (-40°F to +158°F) Noise under normal temperature (27°C, sound power) < 62.3 dB(A) Relative humidity 5% to 95%, noncondensing Operating altitude 0-5000 m (0-16404 ft.) Certification EMC certification Safety certification Manufacturing certification Part number 02353AJH 02353AJH-001 02353AJH-003

Company Profile
Chongqing Chimu Technology Co., Ltd. was established in 2011, we have been engaged in this industry 11 years. Relying on 11 years of deep experience in the communication field and scientific and technological innovation ability, through the integration of multi-brand, full series of communication products resources, with a one-stop service model. Let the network better connect you and me, connect the world. In order to meet the needs of customers, we have eatablished a perfect supply chain system to provide super products with reliable quality and reasonable price.
We are devoted to offering Switches, Routers, Servers, Storages, LTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP. Our long-term aim is to provide users high-quality, efficient, economic, timely services. Looking forward to establish long-term and win-win business relations with you.
Our Advantages
A)Stable and Wide Supply Chain Systemwe have established a perfect supply chain system to provide a wide range of products with reliable quality and reasonable price.B)Competitive PriceWe ensure the most competitive price. Warm reminders here, telecommunications equipment configuration is quite different, the price shown on the website is only for reference. After configuration and quantity been confirmed, we will give the final most competitive discounted price.C) Safe and Easy Payment SolutionsWe accept all major credit cards, PayPal and wire transfer.D)Fast Delivery and ShippingFast, professional and reliable delivery.E)11 Years Experiencewe have been engaged in this industry more than 11 years, we have rich industry experience.
Packaging & Shipping
FAQ
Q: How about your main products?
A: Our product lines include Switches, Routers, SFP Modules, OLTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP etc.
Q: What brand of products do you offer?
A: We can supply all the brands you need.
Q: what services can we provide?A:Accepted Delivery Terms: FOB,CFR,EXW,FCA; Accepted Payment Currency:USD,EUR,CAD,HKD,GBP,CNY; Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Cash etc...
Q: Can we get free samples?
A: Sorry, it is not available, but you can pay for one.
Q. How can we guarantee quality?A:Always a pre-production sample before mass production; Always final Inspection before shipment;
Q: How about your delivery time?
A: Generally, it will take 1 to 10 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q: Do you test all your goods?
A: Yes, We have professional engineer to test all devices before shipping.
Q:How about the MOQ?
A:1 piece
