Tongshengjia Machinery Automatic Textile Machine Manufacturing Fb1268 Wool Cards Machine China Wool Carding Machines

Product Description

Tongshengjia Machinery Automatic Textile Machine Manufacturing FB1268 Wool Cards Machine China Wool Carding Machines
Product Overview
Wool Spinning Carding Machines Are Mainly Used In The Manufacturing Process Of Wool Textiles In The Textile Industry, Such As The Processing Of Animal Hair Wool, Rabbit Hair, Camel Hair, Etc.
The Main Function Of The Wool Carding Machine Is To Card The Original Wool Fibers Into Thin And Straight Fibers, And Remove Impurities And Short Fibers, Making Them More Suitable For Subsequent Processing And Spinning. The Wool Spinning Carding Machine Uses The Combing Action Of The Carding Pair And The Bobbin To Preliminarily Sort The Wool Fibers Before Spinning.

Working Principle
1. Pull Out The Wool Fibers And Unfold Them.
2. Remove Impurities And Short Fibers.
3. Use The Roller And Comb Teeth To Comb And Tidy The Fibers.
4. The Characteristics Of The Comb Teeth Can Be Adjusted To Parallelize The Fibers.
5. Collect Neatly Combed Wool Fibers.
Simply put, It Is The Process Of Carding And Sorting Fibers To Make The Wool Of The Raw Material Smoother And More Uniform And To Remove Impurities And Short Fibers To Provide Better Raw Materials For The Subsequent Spinning Process.
Product Main Features 1. Optimal Raw Material Utilization
The Litter Area Of The Licker-In Is Adjustable, And The Speed Of The Cover Plate Is Adjustable To Ensure Optimal Raw Material Utilization.
The Pneumatically Controlled Flip-Type Large Pressure Roller And Cotton Web Bundler Form An Integral Structure, Which Is Conducive To High-Speed Strip Dispensing.
2. Neat, Safe Wiring Craftsmanship
The Cotton Feeder, Cylinder, And Doffer All Adopt Motor Drive And Variable Frequency Speed Regulation To Facilitate Process Adjustment And Achieve Synchronous Control.
The Electrical Control Uses Computer Communication And Digital Synchronization Technology, And The Industrial Touch Screen Displays Various Parameters, Making The Machine Operation Stable And Reliable.
3. Increase Fiber Uniformity
By Combing And Sorting The Fibers, The Wool Carding Machine Can Make The Fibers Smoother And More Uniform, Reduce The Differences Between Fibers, And Improve The Uniformity Of The Fibers.
Wool Spinning Carding Machine Can Remove Impurities, Short Fibers, And Knots Through The Process Of Carding And Tidying Fibers, Improving Fiber Quality And Spinning Effect.
Product Details

Product Parameters

Working Width(Width Of Cylinder)	1020 Mm	1280 Mm
Suitable Fiber Lengths And Varieties	22-102 Mm
	(Pure Cotton, Chemical Fiber, And Other Spinnable Raw Materials)
Cotton Feeding Weight	400-1300 G/M
Sliver Weight	3-7 G/M	3.5-10 G/M
Max Speed	320 M/Min
	(Speed Of Can Coiler Lump Roll)
Max Output	134 Kg/H	190 Kg/H
Form Of Matched Can Coiler	Rotary Or Linear Automatic Can Changing
Coiler Can Specification	ф600*900 Mm;ф1000*1200 Mm
Continuous Dust Extraction Capacity	4000 M3/H
Outlet Static Pressure	-850 To -1000(Pa)
Total Installed Power	24.64 Kw
Weight Of Machine	11000 Kg
Overall Size(L*W*H)	11000*2800*3710 Mm

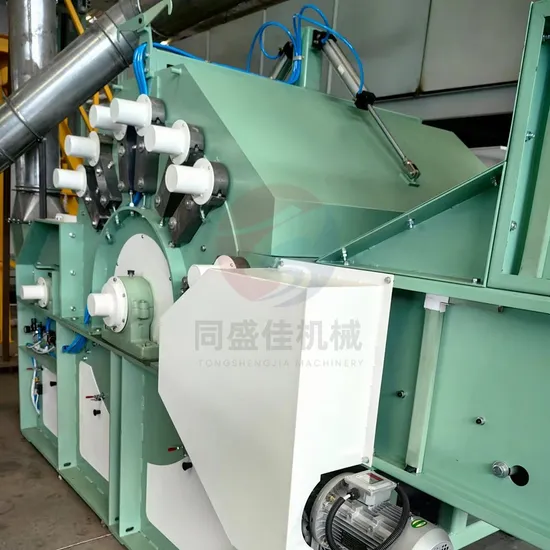

Detailed Photos
