M2m Wireless Edge Modem with RS232/RS485 H20series
| US$120.00-130.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
H20series
Signal Type
Band Modem
Installation
Rack-Mounted
Clip Function
AMR
Interface Type
RJ-45
Transmission Rate
10/100Mbps
Application
Industrial
Transport Protocols
Data Compression Protocols
Transmission Mode
3G/4G
Wan Port
1
LAN Port
1
Serial Port
RS232/RS485
CPU
Mips2
Flash
1MB(Extendable)
Support
SMS, Data, Text
Housing
Iron, Providing IP30 Protection
Dimensions
102.5X73.5X25.5mm
Weight
450g
Transport Package
Standard Package
Specification
CE Cetification
Trademark
HOMTECS
Origin
China
HS Code
8517623600
Production Capacity
10, 0000/Year
Product Description

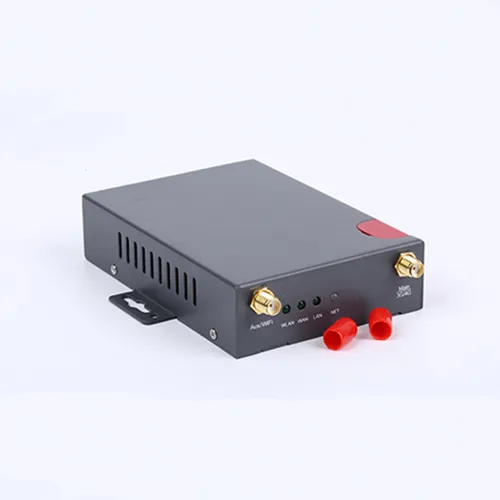

H20series EDGE MODEMProduct Description
H20series 3G GPS Tracker RS232 RS485 is a kind of cellular terminal device that provides data transfer and GPS function by public WCDMA/HSDPA/HSUPA network.
It adopts high-powered industrial 32 bits CPU and embedded real time operating system. It supports RS232 and RS485 (or RS422) port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial devices with only basic configuration. It has low power consumption states in which the power consumption could be 1ower than 1mA@12VDC. It has compatible digital I/O channel, ADC, input pulse counter and pulse wave output function.
It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.
Product Parameters
Cellular | |
| 4G(FDD LTE/TDD LTE) | AU: B1/B3/B5/B7/B8/B28, B40 EU: B1/B3/B7/B8/B20/B28/B31, B38/B40 US: B2/B4/B5/B13/B17/B25, B41 JP: B1/B3/B8/B9/B18/B19/B21/B28, B41 CN: B1/B3, B38/B39/B40/B41 |
| 3G(UMTS/WCDMA/HSDPA/HSUPA/HSPA+) | 850/900/1900/2100 MHz 850/1900/2100 MHz 900/2100 MHz |
| 2G(EDGE/GPRS/CDMA/EVDO) | 850/900/1800/1900 MHz |
Antenna Interface | |
| Number of ports | 1 or 2 (MAIN + AUX/WiFi/GPS) |
SIM | 1(3 V & 1.8 V) |
Ethernet Interface | |
| Number of ports | 2 x 10/100 Mbps, 2 LAN or 1 LAN + 1 WAN |
| Magnet isolation protection | 1.5 KV |
Serial Interface | |
| Number of ports | 1 x RS-232 or 1 x RS-485 |
| Baud rate | 300bps to 230400bps |
Software | |
| VPN tunnel | PPTP/L2TP, IPsec, GRE, OpenVPN |
| Firewall | DMZ, NAT, Filtering (IP/MAC/Port/Url/Access/Domain name) |
| Management | Web, CLI/Telnet Command, M2M management platform optional, SSH optional, SMS optional |
| Serial port | Transparent, TCP Client/Server, UDP, Modbus RTU |
Others | |
| Reset button | 1 x RST |
| LED indicators | 1 x NET, 1 x LAN, 1 x WAN, 1 x WLAN |
| Power | 5 to 32 V DC(standard 12V/1.5A) |
| Power consumption | Idle: 100 mA@12 V Data link: 250 mA (peak) @12 V |
| Housing & Weight | Metal(IP34), 450 g |
| Dimension | 102 x 73.5 x 25.5 mm |
| Installation | Desktop, wall mounting and DIN rail mounting |
| Certification | CE, RoHs, FCC |
