Duoling Mobile Jaw/Cone/Impact/VSI Crushers with Scree in Wheel
| US$39,999.00-9,999,999.00 | 1 Set (MOQ) |
Basic Info.
Certification
ISO9001:2008
Production Time
60days
Weight
18.5-58.5t
Capacity
50-525 T/H
Type
Mobile Crusher
Specification
DL-600, DL-1000, DL-2000
Trademark
DL
Origin
Jiangsu, China
HS Code
23151602
Production Capacity
5 Sets/Year
Product Description
Duoling Mobile Jaw/Cone/Impact/VSI Crushers with Scree in WheelIntroduction of Duoling Mobile stone Crusher Designed and manufactured with patented and most advanced technology, Duoling Series Mobile Crushing Plant has reached the world advanced level.
Specifications of Duoling Mobile Crusher
| DL | DuoLing |
| J | Jaw Crusher |
| C | Cone Crusher |
| S | Screening |
| F | Feeder |
| I | Impact Crusher |
| V | Vertical Shaft Impact Crusher |
| 600 | Daily output 600 T ( 8 working- hours everyday) |
| 1000 | Daily output 1000 T ( 8 working- hours everyday) |
| 2000 | Daily output ~2000 T ( 8 working- hours everyday) |
| Series | Model | Equipment | Feed Opening (mm) | CSS (mm) | Working Area (mm) | Deck | Max.Feed (mm) | Capacity (t/h) | Dimensions | Weight (t) | |
| Work | Transport | ||||||||||
| DL-600 | DL-J600 | J-600 | 500*750 | 50-120 | - | - | 425 | 50-150 | 9070(L) 3440(W) 4725(H) | 9070(L) 3015(W) 4225(H) | 25 |
| F-600 | - | - | 3700*900 | - | 450 | 200 | |||||
| Frame | Semi-trailer, single shaft dual wheel, mechanical support, suspension, brake | ||||||||||
| Max.speed:30KM/H (smooth road) | |||||||||||
| DL-I/S600 | I-600 | 540*1170 | 20-40 | - | - | 350 | 70-120 | 15125(L) 4345(W) 5995(H) | 14870(L) 3445(W) 4335(H) | 37 | |
| S-600 | - | - | 4280*1350 | 3 | 120 | 70-140 | |||||
| Frame | Semi-trailer, double shaft dual wheel, mechanical support, suspension, brake | ||||||||||
| Max.speed:30KM/H (smooth road) | |||||||||||
| DL-1000 | DL-J1000 | J-1000 | 600*900 | 75-180 | - | - | 500 | 65-190 | 9750(L) 3845(W) 4645(H) | 10010(L) 3100(W) 4200(H) | 33.5 |
| F-1000 | - | - | 3700*1050 | - | 500 | 300 | |||||
| Frame | Semi-trailer, double shaft dual wheel, mechanical support, suspension, brake | ||||||||||
| Max.speed:30KM/H (smooth road) | |||||||||||
| DL-I/S1000 | I-1000 | 490*1520 | 20-40 | - | - | 350 | 100-160 | 14820(L) 7455(W) 5520(H) | 14300(L) 4330/4755(W) 4160/4335(H) | 48 | |
| S-1000 | - | - | 3700*900 | 3 | 120 | 80-230 | |||||
| Frame | Semi-trailer, triple shaft dual wheel, mechanical support, suspension, brake | ||||||||||
| Max.speed:30KM/H (smooth road) | |||||||||||
| DL-C/S1000 | C-1000 | 54*190 | 6-38 | - | - | 43-152 | 55-245 | 14685/14840(L) 4125/7455(W) 5730/5713(H) | 13640/13870(L) 3890/4330(W) 4330/4320(H) | 41/42 | |
| S-1000 | - | - | 4880*1600 | 2/3 | 120 | 80-230 | |||||
| Frame | Semi-trailer, triple shaft dual wheel, mechanical support, suspension, brake | ||||||||||
| Max.speed:30KM/H (smooth road) | |||||||||||
| DL-2000 | DL-J2000 | J-2000 | 800*1100 | 90-220 | - | - | 650 | 140-320 | 11830(L) 5000(W) 5365(H) | 12445(L) 3380(W) 4350(H) | 58.5 |
| F-2000 | - | - | 4300*1220 | - | 650 | 400 | |||||
| Frame | Semi-trailer, triple shaft dual wheel, mechanical support, suspension, brake | ||||||||||
| Max.speed:30KM/H (smooth road) | |||||||||||
| DL-C2000 | C-2000 | 25-230 | 6-45 | - | - | 20-184 | 80-440 | 9700(L) 3600(W) 4830(H) | 9700(L) 3600(W) 4230(H) | 32.5 | |
| Frame | Semi-trailer, double shaft dual wheel, mechanical support, suspension, brake | ||||||||||
| Max.speed:30KM/H (smooth road) | |||||||||||

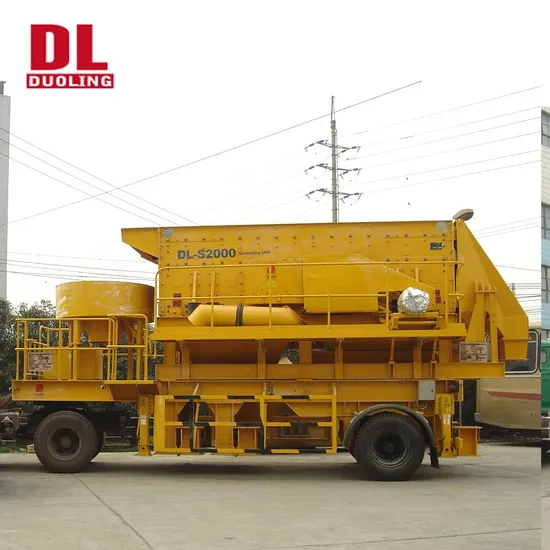

| DL-S2000 | S-2000 | - | - | 4880*1562 | 3 | 200 | 200-525 | 10210(L) 3550(W) 4285(H) | 8750(L) 3550(W) 4200(H) | 18.5 | |
| Frame | Semi-trailer, single shaft dual wheel, mechanical support, suspension, brake | ||||||||||
| Max.speed:30KM/H (smooth road) | |||||||||||
Delivery of Duoling Mobile Crusher
Our 2018 Bauma exhibition
