High-Capacity Marinate Cure Pickle Brine Preserve Season Beef Chicken Seafood Sausage Meat Processing Hydraulic Vacuum Meat Tumbler Tumbling Rolling Machine

Product Description

Product Description

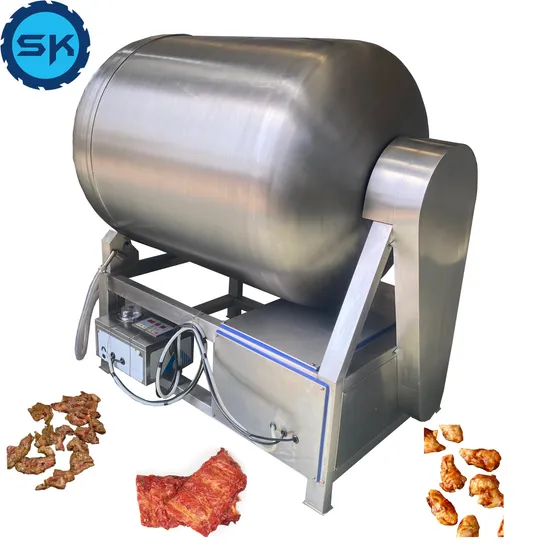

SHUKE Vacuum Tumbler Machine
There are two types of rolling kneading machine produced by our company, hydraulic vacuum rolling kneading machine and vacuum rolling kneading machine. Hydraulic roll kneading machine adopts rotating support, horizontal hydraulic tilt roll kneading.Compared with the ordinary rolling and kneading machine series, it has greater loading capacity and more convenient discharge performance. The roller kneading machine can improve the tissue structure of meat, improve the water retention of meat, there by improving the elasticity and yield of the product and reducing the loss of raw materials.
Function configuration:
1.With continuous vacuum function. Two kinds of rolling methods can be selected: vacuum rolling (fixed vacuum degree) and respiratory rolling (vacuum atmospheric pressure alternating change). The respiratory rolling function can effectively shorten the rolling time and improve the rolling efficiency. The vacuum meter displays the vacuum degree in the barrel in real time, and grasps the vacuum condition at any time.
2.High standard of health design. The machine is made of high quality SUS304 stainless steel material, the bracket is made of stainless steel square pipe, the interior and surface of the roller are finely polished and polished, there is no sanitary dead Angle, and the discharge position can be thoroughly drained; And reduce additional temperature rise.
3.Variable frequency stepless speed regulation. Start smoothly, reduce the impact when the machine starts, extend the service life of the equipment; Save energy consumption; The speed is adjustable.
4.Can use touch screen control, more intuitive operation, with good waterproof and moisture-proof performance. 5.According to the different needs of a variety of products, you can choose "single" or "V" blade.
6.According to product characteristics. Can choose human tooling material, mechanical loading material or vacuum suction material, vacuum suction port.
Product Parameters

Model number

volume(L)

Refer to feed(kg)

Power(kw)

Overall Dimension(mm)

Weight(kg)

SGR-50	50	30	1.1	850*510*940	100
SGR-100	100	50	1.5	1020*610*1050	130
SGR-200	200	100	1.5	1120*720*1210	150
SGR-300	300	150	2.25	1300*820*1320	210
SGR-400	400	200	2.25	1400*920*1400	260
SGR-500	500	250	2.4	1450*1020*1560	280
SGR-600	600	300	2.4	1600*1020*1560	300
SGR-800	800	400	4.55	1800*1020*1560	320

SGR-1000	1000	500	5.35	2000*1120*1660	350
SGR-1200	1200	600	6.85	2030*1230*1820	460
SGR-1500	1500	800	9.85	2230*1230*1820	490
SGR-1800	1800	900	7.55	2500*1230*1820	520
SGR-2000	2000	1000	7.55	2510*1330*1920	690
SGR-2400	2400	1200	9.5	3400*1430*1830	800
SGR-2700	2700	1400	11.5	3500*1530*1920	1000
SGR-3000	3000	1500	11.5	3600*1640*1980	1500

Detailed Photos
Intelligent control system
1. The intelligent control system of vacuum roller kneading machine is its core. It can realize accurate parameter control and automatic operation. Users only need to set the required parameters, the equipment can automatically complete the entire processing process.
2. The intelligent operation part of the inverter vacuum roller is centered on a high-definition digital display with a blue backlight to ensure clear display in a variety of environments. The interface design is simple and intuitive, and the parameters are clear at a glance. Through the display, you can easily view the working status of the device, set parameters, real-time data, etc.
1.Efficient rolling: The use of advanced drum design to ensure that the material inside the equipment to get uniform, sufficient rolling and mixing, greatly improve the processing efficiency.
2.High quality material: SUS stainless steel is used for the main part, which is corrosion-resistant and easy to clean to ensure long-term stable operation of the equipment.
3.Intelligent control: Equipped with advanced control system, it can accurately control rolling time, speed and other parameters to meet the processing needs of different materials.
4.Vacuum environment: The equipment operates in a vacuum environment to effectively prevent material oxidation and maintain the original flavor and nutritional value of food.
5.Humanized design: The equipment is easy to operate, easy to maintain, and greatly reduces the cost of use.
Be Suitable For
Company introduction
Zhucheng Shuke Machinery Technology Co., Ltd. is a professional manufacturer of food processing machinery. Specializing in the research, development and manufacturing of meat machinery, the products are sold all over the country.
Development and innovation and endless are our goals. For many years, we have always adhered to the business philosophy of "no one has what we have, and people have what we are good at". We should closely follow the forefront of world advanced technology ,and introduce advanced technology and components in time to improve the quality of our products.
From stand-alone to food processing line, we can help you improve the added value of your products and help you meet the increasingly picky taste and nutritional pursuit of customers! High quality products are our ultimate goal. "Nanny service" is an important service concept proposed by our company. The 24-hour after-sales service hotline provides you with troubleshooting solutions.
Shuke machinery can provide users with project design, process design, standard and non- standard design and manufacturing, free installation and debugging, on-site training of technicians, and the implementation of three guarantees and lifelong service for the equipment! Wait for one-stop service. Warmly welcome new and old customers to investigate and buy.
Certifications
Our Advantages

FAQ
1.Q:Are you a factory or trading company?
A:We are the manufacturer and we have many years factory experience.As only the machine made by ourself, quality can be trusted,and most important thing is we can do better service after sales.we know how to fix the problem in each parts .so welcome to visit to our factory
2.Q: How do you guarantee the quality of your machines?
A: With many years of export experience, customers who purchase our machines have tested them before shipping.
3.Q: Is the voltage of the machine adjustable?
A: Yes, we can adjust the machine to match your local voltage based on your needs.
4.Q: Do you accept customization?
A: Yes, we can customize the machine based on raw material processing, processing capacity, and the required finished product. We can also make it according to your design.
