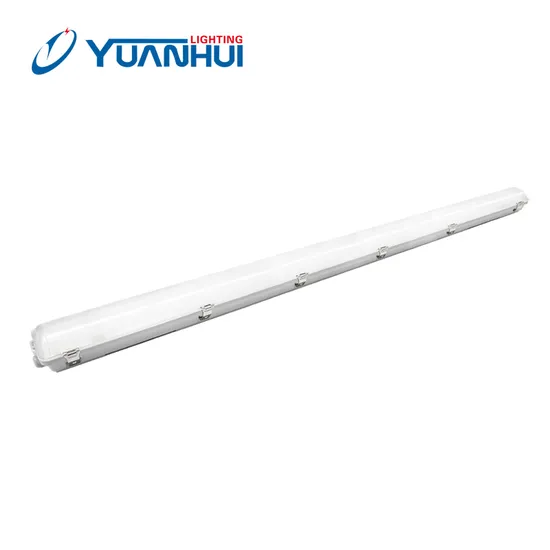

LED Waterproof Lighting Fixture IP65 GS
| US$16.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
LMF
Length
1.5m
Shape
Straight
Shade Material
PC
Lamp Holder/Base
G13
LED Type
SMD 2835
Shell Type
Transparent
Lifespan
≥50000H
Warranty
5 Years
Certification
CE, RoHS, ETL, PSE, GS, Ce, RoHS,
Input Voltage
100-240V
LED Chips
Samsung
CRI
80
IP
66
Ik
08
Material
Polycarbonate Material
Lens
Opal or Clear
Emitting Color
White
Voltage
220-240V
IP Rating
IP66
Transport Package
in The Box/Cotton
Specification
GS SAA CCC UL EMC ROHS CE CUL etc
Trademark
Yuan Hui
Origin
Cixi, Zhejiang, China
HS Code
9405409000
Production Capacity
10000PCS/Month
Product Description
1.Technical Parameters(Test Conditions:25ºC/55%-60%Humidity):| Model No. | LMF12-600 | LMF24-600 | LMF24-1160 | LMF36-1160 | LMF48-1160 | LMF34-1560 | LMF54-1560 | LMF70-1560 | ||||||||
| Lens | OPAL | CLEAR | OPAL | CLEAR | OPAL | CLEAR | OPAL | CLEAR | OPAL | CLEAR | OPAL | CLEAR | OPAL | CLEAR | OPAL | CLEA |
| CCT@Lumen Output(lm) | 2700K-6500K(Standard: ANSI C78.377) | |||||||||||||||
| 1372 | 1537 | 2648 | 2967 | 2527 | 2831 | 3716 | 4163 | 4840 | 5423 | 3207 | 3593 | 5082 | 5694 | 6291 | 7048 | |
| Certificate | CE-LVD EMC ROHS GS CB ENEC SAA C-TICK CCC UL | |||||||||||||||
| Power(W±10%) | 12W | 24W | 24W | 36W | 48W | 34W | 54W | 70W | ||||||||
| LED No./Spec.(SMD) | 24PCS | 50PCS | 50PCS | 75PCS | 104PCS | 78PCS | 120PCS | 156PCS | ||||||||
| Input Voltage(V) | AC220-240V,50/60Hz | |||||||||||||||
| CRI | 80 | |||||||||||||||
| Beam Angle(°) | 120 | |||||||||||||||
| Driver Type | OSRAM | |||||||||||||||
| LED Chips | EVERYLIGHT 2835/LEXTAR 2835 | |||||||||||||||
| Operating Ambient Temperature(ºC) | -20ºC~40ºC | |||||||||||||||
| Operating Humidity(ºC) | 10-%~90% | |||||||||||||||
| Warranty | Up to 5 Years | |||||||||||||||
| IP | IP66 | |||||||||||||||
| IK | 08 | |||||||||||||||
| GLOW WIRE TEST | Pass 850ºC | |||||||||||||||
| Material | Polycarbonate material | |||||||||||||||
| Net Weight(kg) | 0.96 | 1.96 | 1.78 | 1.92 | 1.92 | 2.56 | 2.56 | 2.56 | ||||||||
| Product Size(mm) | 600*120*108 | 1160*120*108 | 1560*120*108 | |||||||||||||
1.INPUT VOLTAGE: AC220V-240V, 50/60Hz.
2.HIGH PERFORMANCE- OSRAM DRIVER for maximum efficiency.
3.EFFICACY- High Quality LED chips: from EVERYLIGHT /LEXSTAR for maximun light output and life.
4.RELIABILITY- Reflector with MCPCB as heat sink.
5.RUGGED- Body & Diffuser have an High Impact Rating IK08 and GLOW WIRE TEST Inflammability Test to 850ºC.
6.PERFECT REPLACEMENT for the whole set of T8 fluorescent lightig fixture.
7.SAVE UP to 60% in electricity consumption compared to fluorescent lighting fixture.
8.LONG LIFETIME- 50,000 hours or typically Ten Years before replacement.
9.LIGHTWEIGHT body material, corrosion resistant, waterproof and dustproof.
10.EASY INSTALLATION with fast connection design, shorten the installasion process and save labor cost.
11.FLEXIBILITY- Module can be fitted with Microwave sensors and an Emergency Battery to meet your special order requirement.
12.WIDE OPERATING RANGE- IP66 Dust, Dirt and water jet proof and temperature from -20ºC~40ºC.
3.Applications:
Multi-storey Car Parks, Warehouse and Factories, Farm Buildings & Stables, Transport Hubs(platforms), Schools & Hospitals (walkways & kitchens) ,Glasshouses/Horticultural buildings, Sports Stadiums etc.
