2025 Elsky 3th Generation Fanless Industrial Mini PC Core I5-3317u Rugged DC12V X86 128GB 512GB SSD 1037uintegrated 2GB 4GB RAM M618

Product Description

Product Description

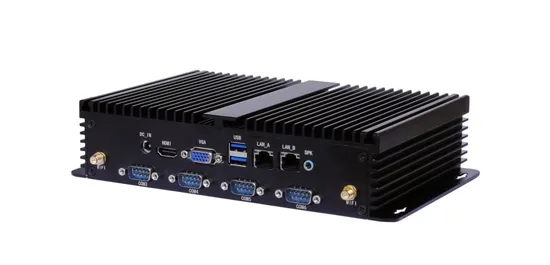

ELSKY 3th generation fanless industrial mini pc Core I5-3317U rugged dc12v X86 128GB 512GB SSD 1037uIntegrated 2GB 4GB RAM M618

M618 Industrial PC Feature Summary:
Case Size	214*150*52mm (L*W*H)
Processor	TDP=17W,low power consumption,energy conservation; Support Intel Ivy Bridge 3rd generation FCBGA1023 processors; Intel Celeron dual cores 1.8GHz 1037U; Intel Core dual cores 1.8GHz i3-3217U; Intel Core dual cores 1.7GHz i5-3317U.
Chipset	Support Intel 7 Series HM70/HM76/HM77/QM77 Chipsets
Graphics	Integrated Intel HD Graphics 4000 in CPU.
Memory	On-board DDR3 1600MHz 2GB or 4GB Memory.
Heat Dissipation	Thin,cool,silent fan.
Power Supply	Support DC 12V 5A/7A/10A ;DC port: 5.5*2.5mm.
Ethernet	1*Realtek 8111E Gigabit Ethernet RJ45 LAN port;Other option:Dual LAN ports. Support wake-on-LAN and PXE diskless boot function.
Display	Support single display,dual display copy&expansion,single display under DOS; Support H.264,3D,2K,1080P,FHD display; 1*VGA DB15 port supports Max resolution 1920*1200@60Hz; 1*HDMI 1.4 port supports Max resolution 1920*1080@60Hz.
External I/O ports	1*DC_In; 1*HDMI; 1*VGA; 6*COM; 4*USB2.0/6*USB2.0; 2*USB3.0 ; 1*Speaker; 1*LAN/2*LAN.
Built-in Pins	LVDS;Audio;JAMP;SPDIF_Out;F_PANEL;SIM card slot;GPIO;CPUFAN;CLR_CMOS;INVERT,etc.
Sound	Integrated Realtek ALC662 HD digital audio decoder,6-channel high-fidelity audio controller.
Hard Disk	1*SATA3.0 port;1*SATA2.0 port;1*MSATA slot(SATA protocol) for MSATA SSD; If you need USB signal for 3G/4G/Blue-tooth module,please tell us to change in advance.
Power Switch	1*Power button
Battery	3V CR2032 button Battery
WIFI	1*Mini PCIE slot(PCIE signal) supports WIFI module; 2*WIFI holes for antenna masts.
COM(Serial port)	COM1,COM3,COM4,COM5,COM6 support RS232;COM2 supports RS232/RS422/RS485.
Operating Environment	Operating temperature:-20ºC~60ºC; Working humidity:5%~95% Relative humidity, no condensation.
BIOS	AMI BIOS;Support power on,timing switch,remote switch,intelligently identify devices.
Watch Dog	Watch Dog programming supports hardware reset function (256 levels, 0~255 seconds).
Power On	By default,the PC does not support "Power On",if you need,please tell us to set in advance.
Operating System	Support Windows XP,Windows 10,Windows 8,Windows 7,Ubuntu 14.04,Ubuntu 16.04,etc.
Certificates	CE,CCC,ISO 9001:2015
Case Color	Black
Case Material	Aluminum alloy
Installation Method	Wall hanging,desktop
Net Weight	3.0KG/set
Accessories	Drive CD
Warranty	1 Year
MOQ	1 set
Matched Motherboard	M618SE

applications
Company Profile
Packaging & Shipping
Packing
Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag and separated by stiff cardboards in carton boxes.
1Piece/Carton(G.W. : 1.0-1.5KG);
5Pieces/Carton(G.W. : 5.0-7.5KG);
10Pieces/Carton(G.W. : 10.0-15.0KG);

Shipping
3 working days after received full payment(In stock).
Express:DHL,Fedex,UPS,TNT,etc.
After Sales Service
Trade Term:
MOQ:1 piece;
Payment Term:T/T,Western Union,Paypal,Cash,etc.
Delivery: within 3~5 working days after received buyer's payment.
Shipping ways: DHL/FedEx/TNT/UPS, optional.
Product Support:After-Sales-Service,Technical Support,Product Manual,etc.
Warranty: 3 years for motherboard and 1 year for CPU.
You can also choose these accessories to buy together:
Intel CPU:
ATOM(Cedarview,Pineview,Cherry Trail,Pine Trail, Cedar Trail,Apollolake);
Intel 2~7th Gen.Processors(Bay Trail,Sandy Bridge,IVY Bridge,Haswell,Broadwell,
Skylake,Kaby lake);
Intel Processor Architecture Brand:ATOM,Celeron,Pentium,Core,etc.
Memory(RAM):1GB,2GB,4GB,8GB,16GB;
SSD(SATA or MSATA):2GB,4GB,8GB,16GB,32GB,64GB,128GB,240GB,etc;
HDD:80GB,128GB,160GB,256GB,320GB,500GB,750GB,1TB,2TB;
Integrated Graphics or Independent graphics;
Chassis/Case;
OPS Card;
Wifi/]/3G/4G/Fiber opticmodule;
Increasing COM,LAN,USB,VGA,LVDS,HD-MI,TV-Out,Optical fiber,LPT,IDE Port,DVI,GPIO,Parallel ports On motherboard;
......
FAQ
1. who are we?We are based in Guangdong, China, start from 2009,sell to Domestic Market(53.00%),Western Europe(8.00%),North America(5.00%),Africa(5.00%),South Asia(5.00%),Eastern Asia(4.00%),South America(3.00%),Eastern Europe(3.00%),Oceania(3.00%),Northern Europe(3.00%),Southeast Asia(2.00%),Mid East(2.00%),Central America(2.00%),Southern Europe(2.00%). There are total about 101-200 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Motherboard,Mini PC,OPS PC,Industrial PC,SSD4. why should you buy from us not from other suppliers?ELSKY is one of the top designer and manufacturer of industrial computer in China. As a high-tech company, ELSKY has a wide range of products covering MINI-ITX mainboard,Single Board computer, industrial computer, Panel PC, firewall and so on5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;Language Spoken:English,Chinese
