Gamma Aquatic Pet Cat Fish Food Feed Extruder Machine Production Line

Product Description

Aquatic Pet Food Production Line
New Design and hot selling pet food dog food cat food fish feed making machine for sale uses meat meal, fish meal, corn powder, soya meal and other grains powder as main materials to make the pet food, such as dog, cat, fish, bird food etc. With different shapes and tastes by changing the dies and formulations. It adopted twin-screw extruder and the high energy efficiency ratio increases production capacity by 10-20%, the aspect ratio reaches 26:1, and the formula is highly adaptable.
1. Raw Materials: Meat meal, Fish meal, Corn powder, Soya meal and other grain's powder;
2. Products: The pellet food, like dog, cat, fish, bird food etc;
3. Capacity: 1Ton/h, 2ton/h,3Ton/h,4ton/h, 5Ton/h, 6ton/h;
4. Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers' local voltage of different countries.
5. Machines Materials: All the machines are made by food grade stainless steel.

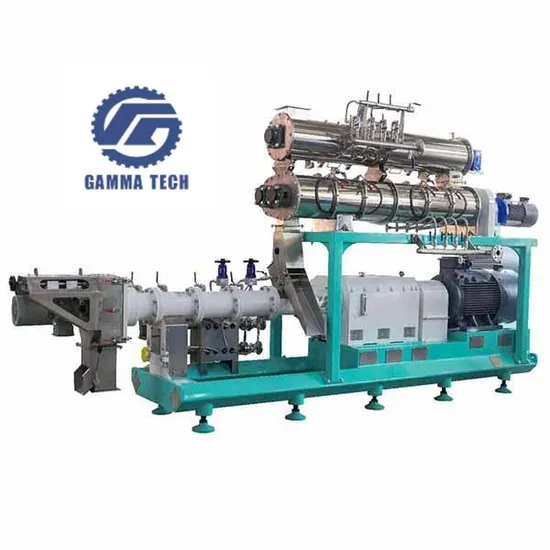

Twin-Screw Extruder Specifications

Model	Main Power(KW)	Capacity(T/H)
GM55	22	0.15-0.3
GM65	45	0.1-0.3
GM68	75	0.5-1.3
GM98	110/132	1.5-3.0
GM130	200/160	3.0-6.0
GM138	250/200	5.0-8.0
GM158	400/355	8.0-13.0
GM178	500/630	13.0-20.0
GM1218	630/800	20.2-25.0

Process
Samples of Pet Food / Fish Feed
Different shapes and sizes of dog food,cat food; 1-20mm floating,sinking fish feed
Equipment List
Automatic batching system
For about the raw material mixing, we have also fully automatic batching system. t can mix the different raw material with batching scale and no need work by hand. It is more conveniently.
Grinding system
1.Grinder raw material into powder with dust collect
Extrusion system
1.The main extruder motor,cutting motor adopts frequency speed controlling with high automation and stable per-formation.we can
adjust the motor speec according to our require easily, it can meet human safe level.
2. The screws are made of the alloy steel and special craft, durable usage, high pressure, the screw life is longer,adopt
38CrMnAl.the screw can used long time.
3. This extruder have forced lubrication system, so that it can guarantee the equipment gear transmission and cooling the bearing.

Drying system
1. This dryer has the compact structure, small occupying, large drying area, small surface area, slight radiating heat and high thermal efficiency.
2.The belt and the heat preservation use the stainless steel; it is suitable for food safe industry level.
3.The running speed of belt net can be controlled (frequency controlling system).
4.The temperature can be controlled willfully and designed according to the need.
Flavor Oil coating system Makes finished food adding to flavor,oil,fat,vitamin,additive fully mixed

Counter flow cooling system
It uses the principle of counter-current cooling to cool high-temperature and high-humidity pellets, that is, ambient cold air passes through the material layer vertically, first contacts the cold material, and the gradually heated hot air contacts the hot material, and the direction of the air flow is the direction of the material flow. On the contrary, the granular material is gradually cooled in the forward direction, which can prevent other coolers from direct contact with the high-temperature granular material due to cold wind, causing the particles to crack on the surface due to
the sudden cooling.
Our Advantages 1. Superior quality with reasonable prices:GAMMA is CE certified, quality assured, and priced reasonably. Machine specifications are customized to fit international markets and customer demands. All of machine parts, electronic components, and safety devices follow CE regulation.2. GAMMA made to client requirements:GAMMA suggests suitable machines per each customer's product requirements.We can provide basic formula for produce the food etc. And help customer to produce new products according to customer's formula.3. Timely response and follow-up service:GAMMA will respond to customer phone calls, e-mails or faxes for machinery or production problems within 24 hours to prevent a client's potential loss.4. Fully equipped test workplace:In our test workplace, a wide range of flours, food additives, seasonings, fillings, are ready for on-site client testing toensure the machine fits each client's final product requirements.5. Successfully exported worldwide:Since 2004, GAMMA has successfully exported its machines to 130 countries. With many practical experiences, GAMMA can provide clients with the most effective market information and customer service experience.6. Complete parts safety stock for all machine series:Except for special parts, we can deliver the components each client needs right away.
About Service
We insist on "Quality is the soul of company" and take customers as our god, owned outstanding R&D team with the sense of innovation and cooperation, timely and effectively after-sales service team, professional installation guidance team. We devote to all-round service of all the products from shipment to maintenance.
√ Our professional service includes: Free training, Guidance Installation and Debugging.
√ Guaranteed Time: 12 moths from delivery date .
If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
Thank you for your reliance and support!
Packing & Delivery
Why Choose From Us?
A.Good reputation
Because of the good quality and credit,our company are with good reputation both at home and abroad.
B.Factory direct supply
This ensure the competitive price available and brand care.
C.Advanced technology adopted
American CPM advanced technology with rich experience on site for installation and debugging,which has the good ability to provide with aftersale service.
D.Best and reasonable structure design of the pellet mill
This make sure the durability of the machinery running.
Gear drive of the pellet mill which make the pellet machine stronger for making the wood pellets.Compared with belt drive,with lower consumption for the same capacity.
