45 Degree Aluminium Angle Support/Corner Fitting/Aluminum Bracket Profile/Corner/Connector

Product Description

Jixin Aluminum Profile ------- Fuping Metal Sub-brand

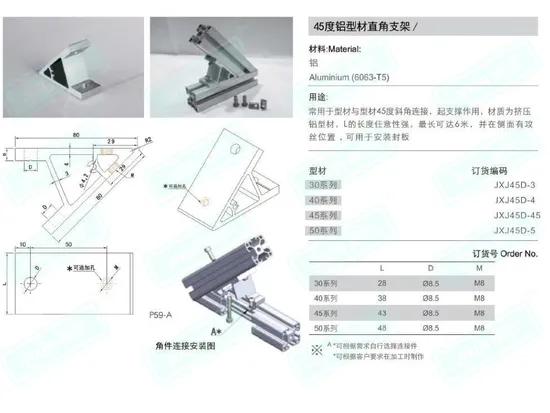

45-DEGREE SUPPORT The 45-degree bracket is formed by cutting the material section from the extruded profile and drilling. The surface is anodized with silver and white (the end face is not oxidized), and the connection strength is high.Good flexibility and general performance, easy to install, mainly used for 45 degree Angle connection of profiles Notes: can make special process according customer's require.

NO.	model	A	B	C	Order number
1	2020	16	5.5	8	2020-45 degree support
2	2030	27	6.5	13.5	3030-45 degree support
3	3535	30	8.5	15	3535-45 degree support
4	4040	35	6.5	17.5	4040-45 degree support
5	4545	40	8.5	20	4545-45 degree support
6	5050	45	8.5	22.5	5050-45 degree support

NO.	model	A	B	C	Order number
1	6060	55	6.5	30	6060-45degree support
2	8080	75	6.5	40	8080-45degree support
3	9090	85	8.5	45	9090-45degree support
4	100100	95	8.5	50	100100-45degree support

Q&A 1 What is the material being used for your products?---Mild steel Q235, Q195
2 How is the goods being packed?---Plastic banding + Stretch film wrapped, palletized for easy loading and unloading
With standard forklift truck
3 What is the payment terms I can get?---T/T or L/C at sight, DP etc
4,Do you offer R&D support ?
Yes we do. Our professional team provide assistance with design and production to specific requirements of different systems.
We work each of our clients to make sure that we are matching their needed schedules, professional solution and timely delivery.
5, What kind of finish do you provide for your goods?--- A.Electro-galvanized/Zinc plated: B. Hot dip galvanized: C. Powder coating
6 What is the loading capacity? --In general, we have light duty(100~300kg) model,medium-duty(400~800kg) model and heavy-duty(1000~1700kg) model available for your choice.
7 Which product can be used in cold storage?---Mobile rack, wire container, and roll cage are all widely used in cold storage.
8 I don't have drawing or picture available for the custom products, could you design it
for me?Yes, we can make the best suitable design for you but do need to know the details, such as a) dimension b) loading capacity c)stackability d)operation environment
9 What is the minimum quantity I can order?--About30-50 , quantity is variable depend on the size
10 What is your average production lead time?--3-4 weeks against formal order and deposit.
