High Shear Dispersing Bitumen Emulsifier Pump

Product Description

Product Description

material	SS304 or SS316L
Capacity	0-130T (Customized)
pressure	0-2Bar
Viscosity	1-1000000pas
rotors teeth	Fine/Middle/rough
temperature	0-100 celsius degree
installation	Movebale or Fixed
connection	Clamp union flange
motor type	Normal	Ex-proof	inverter
Speed	0-3400RPM

Technical Parameters
Model	capacity (T/H)	Speed(RPM)	out Pressure(bar)	power(KW)
LNP-1-80	0-1.5	2900/3400	≤2Bar	1.5
LNP-1-100	0-3	2900/3400		2.2
LNP-1-130	0-4	2900/3400		4.0
LNP-1-140	0-5	2900/3400		5.5
LNP-1-165	0-8	2900/3400		7.5
LNP-1-180	0-12	2900/3400		11
LNP-1-185	0-18	2900/3400		15
LNP-1-200	0-25	2900/3400		22
LNP-1-210	0-35	2900/3400		30
LNP-1-230	0-50	1450/1700		45
LNP-1-245	0-75	1450/1700		55
We can customize the equipment according to customer requirements.

Description
The emulsification pump (also called in-line high-shear dispersion mixer) is a high-efficient fine mixing equipment which
integrates mixing, dispersion, crushing, dissolution, fine, depolymerizing, homogenization and emulsification, whose working components are mainly stator and rotator. The rotor rotates rapidly to produce centrifugal force and hydraulic force and the stator remains stationary. Through the precise combination of the rotor and the stator, a strong shear force is generated during high-speed rotation, and the material is subjected to strong shear, centrifugal extrusion, impact rupture, liquid friction, and uniform turbulence. Thus, various media such as immiscible solid phase, liquid phase, and gas phase are uniformly and finely dispersed and emulsified in an instant. After a reciprocating cycle, a stable and high-quality product is finally obtained.

	L2(mm)	L(mm)	H(mm)	A(mm)	H2(mm)	H3(mm)	DΦ(mm)	BΦ
LNP-1-80	74	528	367	240	180	126.5	38	32
LNP-1-100	74	528	367	240	180	126.5	38	32
LNP-1-130	76	611	413	290	202	135	51	38
LNP-1-140	80	660	490	340	222	152.5	63.5	51
LNP-1-165	80	700	490	340	222	152.5	63.5	51
LNP-1-180	92	847	554	382	260	167.5	63.5	63.5
LNP-1-185	92	847	554	382	260	167.5	76.2	63.5
LNP-1-200	96.5	957	585	410	290	181	76.2	63.5
LNP-1-210	109	1035	659	460	310	186	89	76.2
LNP-1-230	115	1090	705	460	323	196	102	89
LNP-1-245	132	1160	750	570	370	204	102	102

Application Applicable to the fields of food, dairy, beverage, pharmacy, cosmetic etc industry.1. Chemical Industry: Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.2. Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.3. Daily Chemicals: Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish etc.
Product Image 2.2Kw Stator and rotors for emulsifier pump 7.5kw Stator and rotors with impeller together
2.2kw Emulsifier high shear pump 4.0Kw emulsifeir pump with double flushed seal
7.5KW One Stage emulsifier pump 5.5KW Emulsifier homogenizer pump

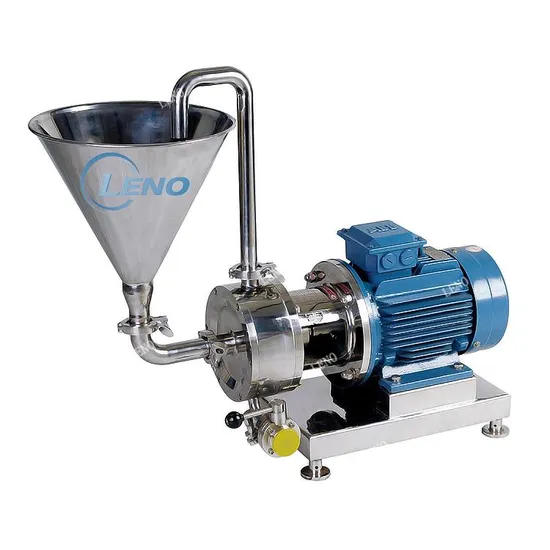

2,2Kw Movable emulsifier pump 2.2Kw Emulsifier pump with 4.1L funnel.
2.2KW emulsifier pump with control box 2.2kw emulsifier pump with funnel as return
4.0kw.Single mechanical seal homogenizer Three Stages emulsifier pump with control box
2.2Kw Emulsifier pump with inverter 4.0KW emulsifier pump with lobe pump together
Suck Powder 4.0Kw emulsifier pump Feeding powder emulisfier pump
11KW Emulsifier pump to connect the IBC Tank 100L tank with emulsifier pump as return
11KW Three Stages emulsifier pump 22KW three stages emulsifier homogenizer pump
4.0Kw emulsifier pump with 200L movable tank 100L heating tank with emulsifier pump and lobe pump
4.0Kw emulsifier pump with 200L tank as return 500L single layer tank with 7.5kw Emulsifier pump
Why Choose LENO Emulsifier pump
1:LENO Can provide different solutions to match different viscostity production
2:LENO has more than 15 years manufacturer experience of the Emulsifier pump
3:LENO Emulsifier pump can provide all kinds of the pump connections in different area.
4:LENO Emulsifier pump can be used in different sealing ,like silicon,EPDM,PTFE ETC.
5.LENO Emulsifier pump can be made jacket to cover the head of the pump.
6.LENO Emulsifier pump can customize the different voltage like 120V/60Hz,220V/60Hz,415V/50hz, 440/60hz Etc.
