High Efficiency Agricultural Wastes Biomass Ring Die Wood Pellet Machine

Product Description

Product Description
More details,please find Crystal

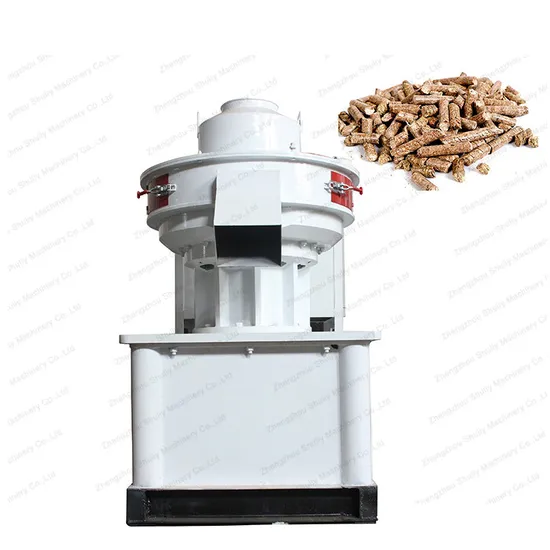

Biomass pellet machine, also known as wood pellet machine or ring mold pellet machine, is a kind of finished product that extrudes biomass material into pellets.
Features:
1.Vertical ring-die pellet making machines adopt vertical feeding method. The powdery material is fed into pelletizing chamber directly. The mold of the machine is still while the ring-die is rotating. Under the function of centrifugal force, the material will distribute evenly in the pelletizing chamber. The mold of a vertical pellet machine is not easily clogged. Thus, the service life of the mold is prolonged.
2.The main gear adopts high-accuracy gear drive and the bearing is made from high-quality alloy material. The pelletizing rate of vertical pellet making machine is up to 95%. It is applicable to large-scale pellet production line.
Product Parameters

model	power(kw)	pellets diameter(mm)	inner diameter of ring die(mm)	capacity(t/h)	dimension(mm)	weight(kg)
450	55	4-12	450	0.5-1	2200*900*1600	3000
550	75	4-12	550	0.7-1.2	2300*1000*1780	5000
560	90	4-12	560	1-1.5	2600*1300*2300	6300
680	160	4-12	680	2-2.5	3200*1400*2400	8500

Application
Vertical ring die machine is suitable for pressing all kinds of difficult to bond,hard forming materials ,such as :rice husks,peanut shells,wood sawdust,bamboo powder,corn stalk,grass,coffee shells and so on.Widely used in biomass burning plants,powder plants,wood processing plants,fertilizer factory,chemical factory,food factory ,winery waste reuse,high density molding equipment.
Biomass pellets can be used as raw materials for processing wood chips, straw, rice husks, bark and other biomass and other agricultural and forestry wastes. Through pretreatment and processing, it is solidified into high-density pellet fuel. It is an ideal fuel to replace kerosene. Energy saving and emission reduction have good economic and social benefits. It is an efficient and clean renewable energy. Machine Display
Advantages:
1.Vertical feed, directly in place
2.Static, mold pressing wheel rotation, centrifugal and uniform material around
3.The upper and lower mold double purposes, lower cost, high energy saving
4.The circular mold, cooling structure, using granulation chamber cooling
5.Independent of the discharging device, ensure the pellet formation rate, reasonable design, low cost, and high efficiency
