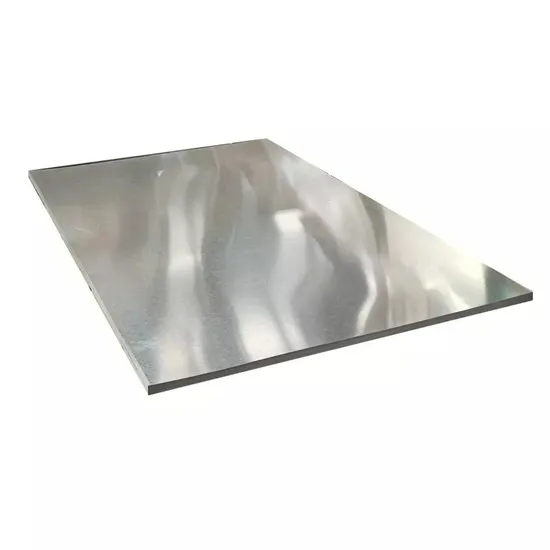

Lork ASTM B387/ASTM B386/Tzm0092 Tzm Alloy Sheet for Aircraft Engine Combustion Chamber Components Tzm Molybdenum Alloy Plate

Product Description

Product Description

Introduction Lork Group specializes in the supply of TZM molybdenum alloy raw materials and processing, alloys, stainless steel, metal quality development, welcome your inquiries
TZM alloy, also called TZM molybdenum alloy, refers to the Titanium-Zirconium-Molybdenum alloy. TZM Alloy contains 0.50% Titanium,0.08% Zirconium and 0.02% Carbon. TZM Molybdenum Alloy is manufactured by either P/M or Arc Cast technologies. TZM Alloy has higher creep resistance and strength than pure molybdenum. SAM produces a wide range of molybdenum and molybdenum alloy mill products including forging billets, bars, rods, sheets, plates, and foil.
Molybdenum (Mo) is gray-metallic and has the third-highest melting point of any element next to tungsten and tantalum. It is found in various oxidation states in minerals but does not occur naturally as a free metal.
Molybdenum is well-known for its strength and stability in high-heat applications. It is often alloyed with other compounds to improve corrosion resistance and strength at high temperatures. Consequently, molybdenum is frequently used for making steel alloys, high-strength alloys, and superalloys. Molybdenum compounds usually have a low solubility in water. Industrially, they are used in high-pressure and high-temperature applications such as pigments and catalysts.
TZM Alloy Application
1. Aerospace industry: In the aerospace industry, TZM Alloys are commonly used to manufacture engine nozzles, turbine blades, combustion chamber components, and other high-temperature assemblies. Their high-temperature strength and corrosion resistance make them ideal for these critical components.
2. Nuclear Industry: Due to their excellent high-temperature properties and radiation stability, TZM Alloys are used as structural materials in nuclear reactors, heaters, chillers, and other critical components in nuclear energy applications.
3. Chemical industry: In high-temperature chemical environments, materials with good corrosion resistance and high-temperature strength are required. TZM Alloys can be used to manufacture corrosion-resistant components such as chemical reactors, pipelines and valves.
4. Medical equipment: Due to its biocompatibility and high-temperature properties, TZM Alloys have applications in the medical equipment field, for example, in the manufacture of components for radiotherapy equipment and high-temperature sterilization equipment.
5. Heat treatment industry: in high-temperature heat treatment processes, materials with good high-temperature strength and stability are required. TZM Alloys are commonly used as heating elements and structural components in heat treatment furnaces, vacuum furnaces, and other high-temperature equipment.
TZM Molybdenum Alloy Specifications

Physical Properties
Density	lb/in3	0.37
	gm/cm3	10.22
Melting Point	°F	4753
	°C	2623
Thermal Conductivity	Cal/cm2/cm°C/sec	0.48
Specific Heat	Cal/gm/°C	0.073
Coefficient of Linear Thermal Expansion	micro-in/°F x 10-6	2.50
	micro-in/°C x 10-6	5.20
Electrical Resistivity	micro-ohm-cm	6.85

TZM Mechanical Properties

Tensile Strength	KSI (Mpa)-RT	110 (760)
Elongation	% in 1.0".	15
Hardness	DPH	220
Modules of Elasticity	KSI	46412
	Gpa	320

TZM Common Specifications

Form	Size (mm)	Process	Surface
Wire (straight or rolled)	Dia.: 0.5-4.0 Length: Customized	-	Black oxide; Chemically cleaned
Rod	Dia.: 4.0-100 Length: <2000	Drawing; swaging	Black oxide; Chemically cleaned; Grinding
Plate	Thickness: 4.75-50 Width: Customized Length: Customized	Forging; rolling	Chemically cleaned; Grinding
Tube	O.D.: 0.8"-20" Length: Customized	Sintering; drilling	Fine Turning; Grinding

Detection

Processing
Packaging & Shipping

Company Profile

FAQ
Q1: Do you accept the trial order ?
A1: Yes,if we have the exactly size in stock.we can delivery even 1 piece/meter .
Q2: Can I have free sample before making orders?
A2: Yes,we can supply free sample as requirement,but buyer needs to pay the freight charges ,the freight fee will return to buyer after making order.
Q3: How do you control the quality ?
A3: MTC and PMI will be sent before shipment,any 3rd party inspection if need .
Q4: How about your delivery time ?
A4: Generally delivery time is 15 working days .
Q5: How can I quickly get the price list ?
A5: Directly click "chat now" or send us email with detail specifications,you will get the official price list in 1 hour .
