Pege Vacuum Mandrel for Precision Washer and Gasket Cutting

Product Description

AUTOMATIC RUBBER WASHER OR GASKET SLEEVE VACUUM CUTTING MACHINE
APPLICATION:
This remarkable machine is expertly designed for the swift and precise cutting of an array of materials including rubber, silicone rubber, plastic, PTFE gaskets, washers, and sleeves. It boasts exceptional efficiency, particularly for tubular component cutting, enhancing speed and precision in production.
FEATURES:
1. Unparalleled Efficiency: This machine revolutionizes the cutting process by replacing outdated molding techniques, substantially reducing labor intensity and costs.
2. Maximum Material Savings: Engineered to minimize raw material usage and significantly cut down on wastage, enhancing overall sustainability.
3. Superior Precision: Achieve unparalleled precision with a cutting accuracy that reaches an impressive 0.003mm, ensuring exactness in every cut.
4. Immaculate Finish: Enjoy smooth, clean, and radiant finishes post-cutting, ensuring your products are of the highest quality and ready for immediate use or sale.
Product Description

Model	PG-YAQ-1S	PG-YAQ-2S	PG-YAQ-4S
Shaft Qty	One Shaft	Two Shafts	4 Shafts
Drive Mode	Servo Motor	Servo Motor	Servo Motor
Cutting Efficiency	Max 60 cut/min	Max 120cut/min	Max 240cut/min
Speed	0~3000r/min	0~3000r/min	0~3000r/min
Precision	≤±0.05mm	≤±0.05mm	≤±0.05mm
Cut Diameter Range	Φ10mm~Φ150mm	Φ10mm~Φ120mm	Φ10mm~Φ110mm
Cutting Length	≤200mm	≤200mm	≤150mm
Wall Thickness	≤20mm	≤20mm	≤20mm
Blade Spec	(1)Round Blade:Φ60×Φ25.4×Φ0.35mm	(1)Round Blade:Φ60×Φ25.4×Φ0.35mm	(1)Round Blade:Φ60×Φ25.4×Φ0.35mm
Consumption of Air	50L/min	50L/min	50L/min
Pressure	0.5MPa~0.8MPa	0.5MPa~0.8MPa	0.5MPa~0.8MPa
Vacuum Level	≤-0.035MPa	≤-0.035MPa	≤-0.035MPa
Power Supply	AC220V±5% 50/60Hz	AC220V±5% 50/60Hz	AC220V±5% 50/60Hz
Gross Power	1KW	2KW	3KW
Weight	≈400Kg	≈580Kg	≈800Kg
Dimension(L*W*H)	1350mm×980mm×1400mm	1550mm×980mm×1650mm	1650mm×980mm×17650mm

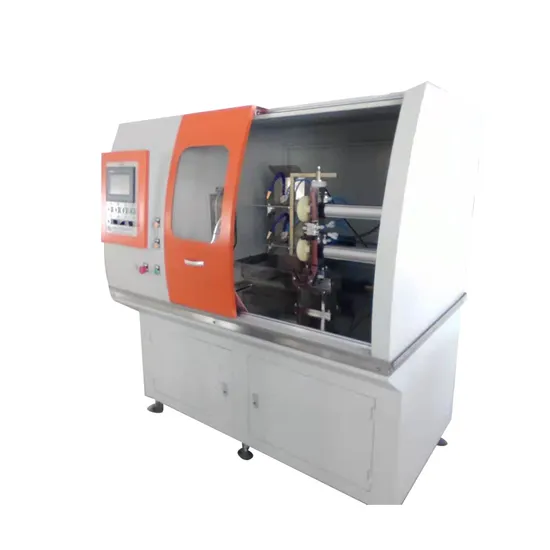

Machine Picture and Workshop Photos
Products After Cutting
