High Speed Automatic Sausage Twist Machinery, Length Adjusted

High Speed Automatic Sausage Twist Machinery, Length Adjusted

US$1.00 1 set (MOQ)

Basic Info.

Model NO.
GNJ-1500
Power Source
Electric
Process
Filler Twist
Automatic Grade
Automatic
Type
Twister
Voltage
380V
Customized
Customized
OEM
Ok
Suit Casing
All (Not Contain Plastic)
Material
S/S 304 Stainless Steel
Payment
T/T
Price
FOB
Shippment
by Sea
Capacity
Design as Need Is Also Ok
Package
Wood Case
Brand
Yuanchang
Guarantee
One Year with Wholel Life Technology Service
Transport Package
Wooden Case
Specification
CE, SGS, ISO
Trademark
yuanchang or OEM
Origin
Hebei, China
HS Code
84385000
Production Capacity
100 Sets Per Month

Product Description

Product Description

The sausage tying machine is using excellent stainless steel, the machine body is easy to clean with good water-proof performance. Speed is controlled by frequency conversion set with high efficiency and energy saving. The machine equipped with finger-touch screen and PLC control system, twist protein casing products with high speed and reliable length-fixed function.
our company focusihg on the research and development of meat deep processing equipment such as chopping and mixing machine series,fillinh machine series,and punch machine series.
2. Main Specifications
1Kinking speed: Up to 1500 pic/min
2Length of twisting knot: 25-200 mm
3Power: 3.7 KW
4Power Supply: 3 phase; 380 V; 50Hz
5Air Pressure: 0.4-0.8 Mpa
6Dimension: 1365 X 1100 X 580 mm
3. On-line Installation and Operation

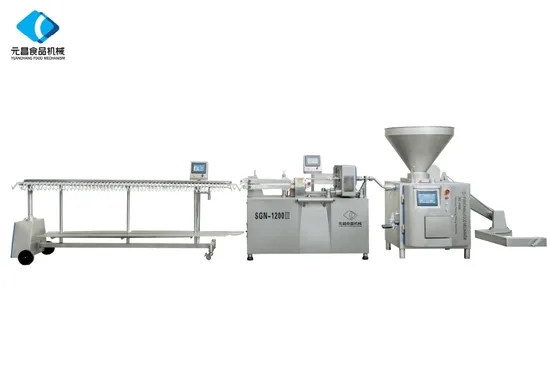

The machine can be installed on line with various filler machine with continuous straight filling performance. Connect filling machine's outlet with high-speed kinking machine by a high-pressure hose. While working, adjust the filling volume according to twisting speed. Product Parameters

Type Twisting speed m/min Twisiting sausage lenghth Power Rated Voltage Mpa Dimension
CNG-1500 1500pc/min for 10 g 25-200mm 3.7 kw 380V, 50HZ 0.4-0.8 1365x1100x580mm
