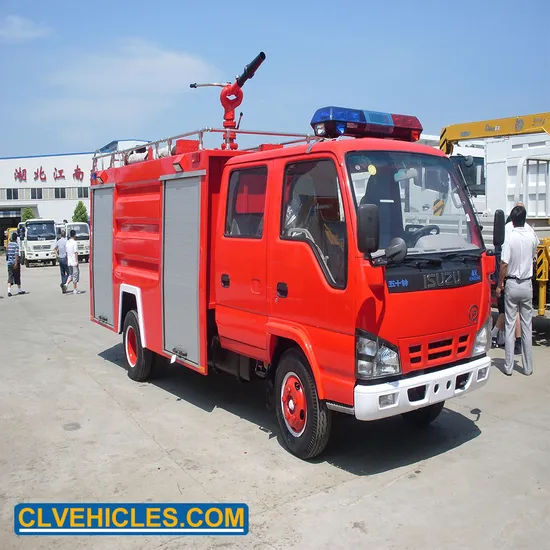

3000L Isuzu Fire Truck Fire Fighting Truck Fire Rescue Truck
| US$31,300.00-37,000.00 | 1 Piece (MOQ) |
Basic Info.
Volume
＜3000L
Emission Standard
Euro 4
Transmission Type
Automatic
Payload
20T
Fuel
Diesel
Drive Wheel
4×2
Horsepower
＜150hp
Condition
New
Product Name
Isuzu 600p 3000 Liters Fire Fighting Equipment
Engine
4kh1-Tcg4o
Exhaust
2999ml
Max Output Power
120HP
Max Torque
290n.M
Tank Capcity
3000L
Fire Pump
Normal Pressure Fire Pump CB10/20
Fire Monitor
for Water PS20
Name
Fire Truck
Key Words
Fire Truck ,Fire Fighting Equipment
Transport Package
Roro Ship
Specification
1 unit
Trademark
CL
Origin
China
Product Description
3000L ISUZU Fire Truck Fire Fighting Truck fire rescue truck| Chassis Specification | |||||
| Truck model | CLW5070GXFQ2 | ||||
| Cab | ISUZU 600P CABIN | ||||
| Driving Type | 4*2 Left hand driving | ||||
| Max Speed (km/h) | 95 | ||||
| Overall dimension(mm) | 6360*2000*2740 | ||||
| GVW( kg) | 6530 | ||||
| Mass in working order ( kg) | 4175 | ||||
| Wheelbase(mm) | 3360 | ||||
| F/R track base (mm) | 1504/1425 | ||||
| F/R overhang (mm) | 1015/1890 | ||||
| Approach/Departure Angel | 24/14 | ||||
| Tire | 6.50-16 (6+1) | ||||
| Clutch | Single-plate dry diaphragm spring clutch | ||||
| Steering | Hydraulic steering with power assistance | ||||
| Gear box | MSB 5-speed | ||||
| Bridge | Front axle | 2.5T | |||
| Rear axle | 4.8T | ||||
| Enging | Model | 4KH1-TCG4O | |||
| Fuel Type | Diesel fuel | ||||
| Type | Water-cooled four-stroke,, direct injection, turbocharged | ||||
| Exhaust(ml) | 2999 | ||||
| Max output power/rotate speed (hp /rpm ) | 120/2900 | ||||
| Max torque/rotate speed(N.m/rpm) | 290/1500-2900 | ||||
| Braking system | Service Brake | Oil brake | |||
| Park Brake | Spring energy | ||||
| Eletric system | 24v | ||||
| Upper-Body specification | |||||
| Tank | Structure | Welding, there is clapboard inner. | |||
| Material | Water Tank | High quality carbon steel plate, anti-rust treatment | |||
| Capacity | Total | 3000L | |||
| Water Tank | 3000L | ||||
| Equipment box | Equipment box: at the back of carriage, there are two-layer clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box. Structure: whole frame is welded to ensure intension and rigidity. Material: frame is high quality steel, inner plague is aluminum embossed sheet, surface is anodic processed. | ||||
| pump room | on the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch. | ||||
| Special Parts Parameter | Fire Pump | Type | Normal pressure fire pump | ||
| Model | CB10/20 | ||||
| Flux | 20L/S | ||||
| Pressure | 1.0Mpa | ||||
| Fire Monitor | Type | For water and foam | |||
| Model | PS20 | ||||
| Flux | 20L/S | ||||
| Pressure | 1.0Mpa | ||||
| Additional drive system | Use sandwich PTO, splashing-type lubricate, can put out fire when driving. | ||||
| Additional operation system | PTP operation lever, fire pump valve operation lever, electronic control button, Hand accelerator operation lever and son on | ||||
| Additional cooling system | The additional cooling system uses a mandatory water cooling for PTO. Can effectively control the fire truck equipment to extend the service life of equipment because of long hours of continuous work related to the heating | ||||
| Additional Electrical system system | warning light ,warning sirens | ||||
| Pump pneumatic control valve switch,Pump speedometer,Electronic level gauge | |||||
| Fire lights, pump room lights, equipment box lights | |||||
| Additional instrumentation | pressure gauge | ||||
| speedometer | |||||
| level gauge | |||||
| vacuum gauge | |||||
| Carriage | Carriage is made of high quality steel and Aluminum embossed sheet | ||||
| Rolling shutter door | Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock. | ||||
| color | The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck. | ||||
