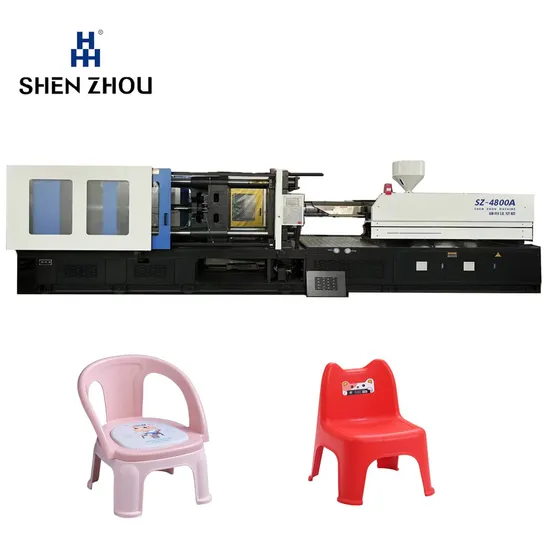

Factory Price Automatic Moulding Machinery Injection Molding Machine Plastic Chair with CE

Factory Price Automatic Moulding Machinery Injection Molding Machine Plastic Chair with CE

US$29,800.00-50,000.00 1 Set (MOQ)

Basic Info.

Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Screw Diameter
60-70mm
Shot Weight(PS)
772-1050g
Injection Pressure
152-207MPa
Theoretical Injection Rate(PS)
241-328g/S
Opening Stroke
590mm
Ejector Force
70.6kn
Ejector Stroke
150mm
Transport Package
Export Standard
Specification
ISO9001: 2000, CE
Trademark
SZ, SHEN ZHOU
Origin
China
HS Code
84771010
Production Capacity
500sets Per Year

Product Description

Product Description
Product Paramenters


SZ-3000A INJECTION UNIT
ITEM
UNIT
VALUE
SCREW DIAMETER
mm
60
65
70
SCREW L/D RATIO
L/D
22.7
21
19.5
Theoretical Shot Volume
cm^3
848
995
1154
SHOW WEIGHT(PS)
g
772
905
1050
INJECTION PRESSURE
Mpa
207
176
152
THEORETICAL INJECTION RATE(PS)
g/s
241
283
328
PLASTICISING CAPACITY
g/s
35.2
43.3
51.8
SCREW TORQUE
N.m
2530
MAX.SCREW ROTATE SPEED
r/min
150
INJECTION STROKE
mm
300

SZ-3000A CLAMPING UNIT
ITEM
UNIT
VALUE
MAX.CLAMPING FORCE
KN
3000
MAX.OPENING STROKE
mm
590
SPACE BETWEEN TIE BARS
mm
610*610
MOULD HEIGHT
mm
220-630
MAX.DAYLIGHT
mm
1220
EJECTOR FORCE
KN
70.6
EJECTOR STROKE
mm
150
EJECTOR QUANTITY

9

SZ-3000A OTHER
ITEM
UNIT
VALUE
PUMP MOTOR POWER
kw
30
PUMP PRESSURE
Mpa
16
HEATING POWER
kw
22
HEATING ZONE

5
SIZE
m
6.7*1.75*2.25
NET WEIGHT
t
11
OIL TANK CAPACITY
L
560
INTERNATIONAL DESIGNATION

3000-1750






New type 5-point toggle device of stable movement curve,gentle shock. Superior mould platen to ensure no out of shape if high-pressure clamping.
Hard chrome plated high tensile strength tie bars made of superior alloy.
Wear-resistant guide for moving platen.
Transducer control clamping stroke.
Many step control for speed and pressure of clamping and opening.
Eiection device offer dwell,single,more, vibration function.
Low pressure mould protection function.
Hydraulic mould height adjustment with roungh and fine operation.
Mechanical and electrical dual safety interlock.
Automatic centralized lubrication system with far pressure detector.
Why Choose Us
1. 20 years of professional injection molding machine and mold manufacturer, excellent quality, honest management
2. Continuous technological innovation, optimized product structure, longer service life
3. Lifetime maintenance of the product, 24 hours after-sales service
4. The main components are all world-renowned brands
5. Dedicated quality control department
6.Ex-factory price
Company Profile
SHENZHOU-Your trusted plastic processing partnerOur company - injection molding machine, blow molding machine, main blower, mold, computer embroidery machine professional manufacturer - located in the national new port city of Zhangjiagang City, Xizhang Town, close to the Yanjiang Expressway and 204 National Road, close to Shanghai, Nanjing, Suzhou, Wuxi Large and medium-sized cities such as Nantong have convenient transportation.
The company has accumulated rich experience in manufacturing injection molding machines for many years, high standard design and precision processing, using imported famous brand hydraulic, electrical and sealing components, and fully creating SZ series automatic computer injection molding machine and peripheral supporting equipment, with its excellent quality and stability. The performance, superior price performance ratio, to the greatest extent to meet the interests and needs of customers.
Certifications

Packing & Delivery
We will apply lubricating oil and spray anti-rust agent to the products before shipment, prepare enough spare parts, and confirm that they are fully fixed before shipment. We pay attention to details and hope to bring you a better experience.
FAQ
1.Q:Are you a factory or trading company?
A: Industry and Trade Integration, we supply the factory price with good quality, welcome to visit !
2.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end and we have a dedicated quality control department.
3.Q:What are your normal lead times?
A:Our company typical lead times range from 25-35days after receipt of order.We also have independent venues and engineers to deal with more urgent orders, which can be shipped within 2 weeks.
4.Q:About the price?
A:We will estimate the cost and provide you with the best price. We can guarantee you the best product quality and after-sales service at the same price. Old customers will enjoy more price concessions.
5.Q:How is your machine different from other businesses?
A:We have optimized the overall layout of each part of the machine to make the machine run smoothly and have a longer service life. The fine parts have exclusive marks, which makes it more convenient for customers to replace parts and use.
6.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Shenzhou Machinery, No. 22 Zhenbei Road, Fenghuang Town, Zhangjiagang City China. All our clients,from home or abroad, are warmly welcome to visit us!
You are welcome to send us samples, we will customize high-quality machines for you! Best wishes for you!
