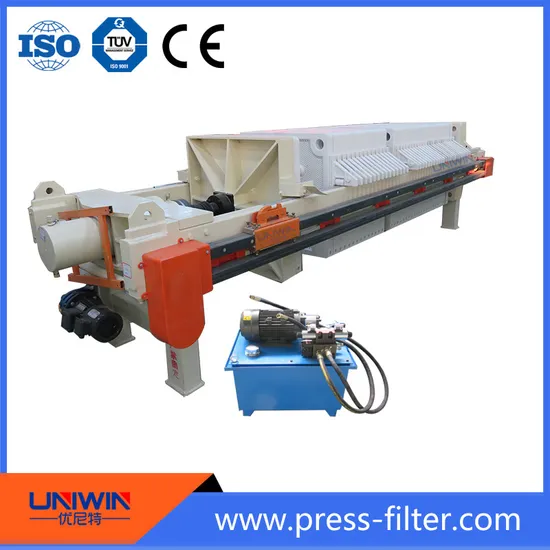

Hydraulic Compress Recessed Plate Chamber Filter Press for Wastewater/Mining/Textile/Chemical

Product Description

Product DescriptionFilter Press Introduction:
A filter press is a batch operation, fixed volume machine that separates liquids and solids using pressure filtration. The slurry is pumped into the filter press and dewatered under pressure.
A Filter Press consists of many plates and frames assembled alternately with the supports of a pair of rails or an overhead beam.
Main components of filter press:
1, Frame/Beam
2, Hydraulic Station
3, Control Cabinet
4, Filter Plates
5, Filter Cloth
6, piping and valves
Filter Press Applications:
Filter presses are used in a variety of dewatering applications, including but not limited to:
> Manufacturing
> Wastewater Treatment
> Power Generation Plant
> Coal Mining, Gold Mining, Copper Mining, Iron Tailing. etc
> Concrete/Cement Production
> Food and Beverage
Basically, if you have slurry that needs to be dewatered, you may need a filter press.
Filter Press Working Process:
The process of one batch filtration is: (pressing-feeding material-filtering-discharging cake)
1- Closing of the filter plates: when start the press button on the PLC control cabinet the moving head plates will be activated by the hydraulic calmps the plates.
2- Slurry Feeding: The sludge (or slurry) will be pumped into the chamber one by one. when all chamber is full of filter cakes, then the filtration is finished.
3- Filter Plates opening: The moving head is drawn back to disengage the first filtration chamber. The cake falls will drop from the plates because of gravity. The auto pulling system pulls out the plates one by one.
4- Washing: Usually for washing of clothes should be carried out every 15-100 batches.
Optional Functions to select for the filter press:
> Open flow/ Closed Flow / Center Feeding / Corner Feeding
> Auto Pulling plate/ Manual open plates
> Gasketed filter cloth/ Sealed filter plates
> Filter cloth automatic washing device/ Filter plate shaking system
> Drip tray/ Belt Conveyor
Type of filter press:
> Recessed plate chamber filter press
> Plate and frame filter press
> Membrane filter press for dryer filter cakes.
> Vacuum belt filter for Iron/Copper tailings, Gypsum, Phosphate rock, Coal fines, Magnetite, Iron ore, Lithium etc.
> Cast iron filter press for high temperature slurries more than 100.C
> Filter Press with Gasketed filter cloth which enables 0 filtrate leakage.
> Screw Press for 24 hours non-stop working.
Related Products:
Membrane Filter Press:
A membrane filter press is identical to a standard filter press except that the chambers have membranes to squeeze out excess water from the slurry.
Membrane plate filter press have one of the inner surfaces of each chamber is coated with a polypropylene membrane.
> Can get dryer Filter Cakes than common chamber filter press.
> Shorter Filtration Times.
> Filtering Area from 1 m2 to 500 m2.
Product Parameters

Model	Filter Area (m2)	Filter plate size (mm)	Filter chamber volume (L)	Filter plate number (pcs)	Filtering pressure (Mpa)	Weight (kg)	Dimension (L×W×H) (mm)
XMY4/450-30U	4	450×450	60	9	0.6	860	1950×700×900
XMY6/450-30U	6	450×450	91	14	0.6	910	2200×700×900
XMY8/450-30U	8	450×450	121	19	0.6	960	2450×700×900
XMY10/450-30U	10	450×450	151	24	0.6	1010	2700×700×900
XMY12/450-30U	12	450×450	182	29	0.6	1060	2950×700×900
XMY15/450-30U	15	450×450	225	36	0.6	1130	3300×700×900
XMY16/450-30U	16	450×450	243	39	0.6	1160	3450×700×900
XMY15/630-30U	15	630×630	226	18	0.6	1725	2640×900×1100
XMY20/630-30U	20	630×630	297	24	0.6	1993	3940×900×1100
XMY30/630-30U	30	630×630	452	37	0.6	2360	3590×900×1100
XMY40/630-30U	40	630×630	595	49	0.6	2788	4300×900×1100
XMY30/870-30U	30	870×870	460	23	0.6	2580	3180×1200×1300
XMY40/870-30U	40	870×870	595	30	0.6	2925	3570×1200×1300
XMY50/870-30U	50	870×870	748	38	0.6	3318	4110×1200×1300
XMY60/870-30U	60	870×870	902	46	0.6	3712	4550×1200×1300
XMY70/870-30U	70	870×870	1056	54	0.6	4106	4990×1200×1300
XMY80/870-30U	80	870×870	1210	62	0.6	4561	5430×1200×1300
XMY50/1000-30U	50	1000×1000	752	28	0.6	4072	4040×1500×1400
XMY60/1000-30U	60	1000×1000	914	34	0.6	4468	4460×1500×1400
XMY70/1000-30U	70	1000×1000	1063	40	0.6	4863	4760×1500×1400
XMY80/1000-30U	80	1000×1000	1219	46	0.6	5259	5120×1500×1400
XMY100/1000-30U	100	1000×1000	1505	57	0.6	5985	5800×1500×1400
XMY120/1000-30U	120	1000×1000	1816	69	0.6	6776	6500×1500×1400
XMY100/1250-30U	100	1250×1250	1479	36	0.6	6728	5020×1880×1600
XMY120/1250-30U	120	1250×1250	1777	43	0.6	7512	5740×1770×1600
XMY140/1250-30U	140	1250×1250	2094	51	0.6	8641	5990×1770×1600
XMY160/1250-30U	160	1250×1250	2381	58	0.6	8205	6450×1770×1600
XMY180/1250-30U	180	1250×1250	2669	65	0.6	10044	6905×1770×1600
XMY200/1250-30U	200	1250×1250	2965	72	0.6	10851	7360×1770×1600
XMY220/1250-30U	220	1250×1250	3285	80	0.6	11765	7880×1770×1600
XMY250/1250-30U	250	1250×1250	3737	91	0.6	12834	8600×1770×1600
XMY200/1500-30U	200	1500×1500	3025	49	0.6	19530	6400×2200×1900
XMY250/1500-30U	250	1500×1500	3739	61	0.6	22478	7225×2200×1900
XMY300/1500-30U	300	1500×1500	4413	74	0.6	25526	8130×2200×1900
XMY350/1500-30U	350	1500×1500	5210	86	0.6	28720	8570×2200×1900
XMY400/1500-30U	400	1500×1500	6007	99	0.6	32074	9880×2200×1900
XMY450/1500-30U	450	1500×1500	6743	111	0.6	35086	10820×2200×1900
XMY500/1500-30U	500	1500×1500	7478	123	0.6	38106	11560×2200×1900

Remarks:
1.The Filtering area can reach as large as 1000 m2.
2.The standard filtering pressure of feeding is 0.6 Mpa,and 1.8-2.5 Mpa of compressing pressure,we can also customize the feeding pressure to 1.0 Mpa if required.If your materials are creamic ,marble stone wastewater etc,we have the special designed high pressure filter press of round plates.pls contact us for more info.
3.The cake thickness are 30 mm.
4.We could also customize the plate size to any size according to clients requirements,while the standard size are :320*320 mm,450*450 mm,630*630 mm,870*870 mm,1000*1000 mm,1250*1250 mm,1500*1500 mm,2000*2000 mm.
Production Workshop
Detailed Photos
Customer Sites
Customer Visiting
Packaging & Shipping
FAQHow to select suitable filter press types?
Both plate and frame filter press and chamber filter press have two ways of filtrate flow, one is the so-called open delivery presses, where the filtrate from each individual filter press plate flows into an open channel, and the other is closed delivery filter presses where the filtrate is discharged into a closed channel, for example passing through the interior of the filter press.
To get avoid of corrosion in acid or alkali environment, we can add fiber glass or stainless steel coating for the filter press, the anti-corrosion perfermance turns out very good.
For some solution such as solvent etc which is toxic and flammable, this way it will need the cgr plates (sealed or closed filter plates ) and filtrate flow into pipes and being collected, also the plc and hydraulic system made explosion proof.This way, the filter press will be totally sealed and there will be no leakage of the filtrate at all.
Also we have the super high pressure, round filter plate which can bear 2.0 mpa filtering pressure, compared with the commin filter press, the filtering pressure is 0.6 mpa-0.8 mpa.This kind usually is requied in ceramic industry, marble/quartz stone industry, clay industry etc.
