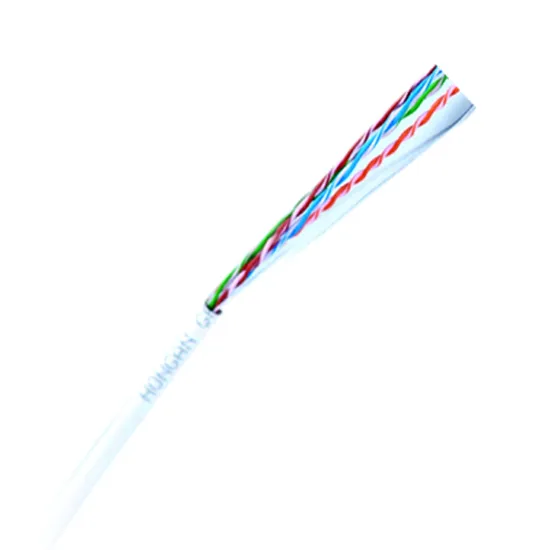

Hot Sale! UTP Cat5e Data LAN Cable 305m

Product Description

Item&Production Line
Product Description
- Characteristics of product:
1.More bandwidth excess than 100MHz standard required;
2.Comply with ROHS standard;
3.The products of special outer sheath or purpose can be designed according to customer's demands.
-Product Applications:
1.10 Base -T
2.100 Base-T4
3.100 Base -TX
4.100 Base-VG-ANYLAN
5.155 Mbps ATM
6.622 Mbps ATM
7.1000 Base-T
-Material instruction:
1.Conductor:24 AWG copper;
2.Insulation:Solid HDPE or Skin-Foam-Skin PE;
3.Sheath:Environment Friendly PVC or Flame Resistance PE or Low Smoke Zero Halogen Polyolefin(LSZHP).
-Physical Electrical Characteristics:
1.D.C resistance (max):9.5Ω/100m at 20ºC;
2.Mutual capacitance(max):5.6nF/100m;
3.Dielectric strength between conductors(min):2.5KV/2s;
4.Impedance:1-100MHz 100+/- 15Ω;
5.Differential phase delay(max):30ns/100m;
6.Installation tempetature:-20ºC-+60ºC
7.Permitted bend radius:Over 8 times diameter of the cable.

Transmission Performance
Frequency(MHz)	Attenuation(Max)(dB/100m)	Next(Min) (dB/100m)	Elfext(Min)(dB/100m)	RL (Min)(dB)	Phase Velocity(Min)(m/s)	Phase delay(Max)(ns/100m)
4	4.1	54	49	18.8	0.604c	552
10	6.5	48	41	20	0.612c	545
16	8.2	45	37	20	0.614c	543
20	9.3	43	35	20	0.615c	542
31.25	11.7	40	31	18.6	0.617c	540
62.5	17.0	36	25	16.5	0.619c	539
100	22.0	33	21	15.1	0.620c	538
