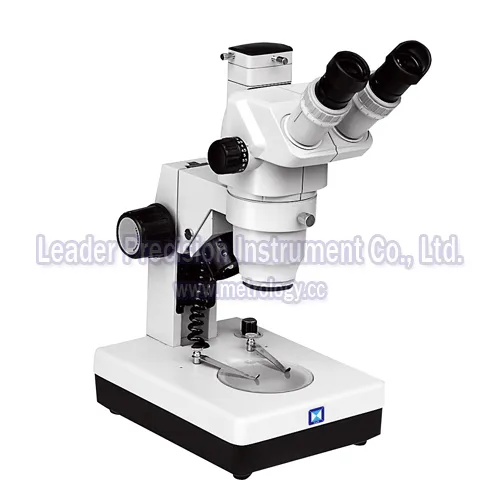

Trinocular Manual Routine Stereo Microscope (XTH-3021)
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
XTH-3021
Number of Cylinder
Trinocular
Mobility
Desktop
Stereoscopic Effect
Stereoscopic Effect
Kind of Light Source
Ordinary Light
Shape
Rectangular Prism
Usage
Teaching
Principle
Optics
Principle of Optics
Polarizing Microscope
Name
Stereo Microscope
Model
Xth
Eyepiece
Wf10X/23
Zoom Ratio
1: 6.5
Lens Zoom Range
1X-6.5X
Total Magnification
10X-65X
Field of View
23mm-3.5mm
Working Distance
103mm
Interpupillary Distance
52m-75mm
Binocular or Trinocular Tube
Inclined 45/60
Transport Package
Standard Exporting Packing
Specification
SGS
Trademark
Leader
Origin
China
HS Code
9011100000
Production Capacity
10, 000PCS/Year
Product Description
Trinocular Manual Routine Stereo Microscope (XTH-3021)Usage:
This stereo microscope is widely used in medical and health, electronics, precision machinery industry and so on, especially suitable to inspect the naked IC, LCD printing paste, PC
Feature:
1) Zoom lens microscope
2) Inclined 45/60 degree observation
3) Erect image
4) Can connect CCD camera
Standard delivery:
Main unit: 1PCS
Eyepiece patch: 2PCS
Anti-dust cover: 1PCS
Optional accessories:
Eyepiece: WF5X, WF15X, WF20X, WF25X, WF30X
Auxiliary lens: 0.5x, 0.75x, 1.5x, 2x
Micro-image process software:
Digital Camera:
| Technical data | |
| Zoom ratio | 1: 6.5 |
| Lens zoom range | 1X-6.5X |
| Eyepiece | WF10X/23mm |
| Total magnification | 10X-65X |
| Field of view | ¢ 23mm-¢ 3.5mm |
| Working distance | 103mm |
| Interpupillary distance | 52mm-75mm |
| Binocular tube | Inclined 45º /60º |
| Diopter adjustment | ± 5 diopter |
| Trinocular body rotation | 360º |
| Eyepiece | WF10X | WF15X | WF20X | WF25X | |||||
| Auxiliary lens | Magnification | Field of view | Magnification | Field of view | Magnification | Field of view | Magnification | Field of view | Working distance(mm) |
| 0.5X | 5X-32.5X | ¢ 46-¢ 7.4 | 7.5X-48.8X | ¢ 32-¢ 5 | 10X-65X | ¢ 26-¢ 4 | 12.5X-81.25X | ¢ 24-¢ 3.6 | 163 |
| 0.75X | 7.5X- 48.8X | ¢ 30.7-¢ 4.7 | 11.3X-73.1X | ¢ 21.3-¢ 3.3 | 15X-97.5 | ¢ 7.3-¢ 2.7 | 18.8X-121.9X | ¢ 16-¢ 2.5 | 117 |
| 1X | 10X-65X | ¢ 23-¢ 3.5 | 15X-97.5X | ¢ 16-¢ 2.5 | 20X-130X | ¢ 13-¢ 2 | 25X-162.5X | ¢ 12-¢ 1.8 | 100 |
1.5X | 15X-97.5X | ¢ 15.3-¢ 2.4 | 22.5X-146X | ¢ 10.7-¢ 1.6 | 30X-195X | ¢ 8.7-¢ 1.3 | 37.5X-243.8X | ¢ 8-¢ 1.2 | 45 |
| 2X | 20X-130X | ¢ 11.5-¢ 1.8 | 30X-195X | ¢ 8-¢ 1.2 | 40X-260X | ¢ 6.5-¢ 1 | 50X-325X | ¢ 6-¢ 0.9 | 40 |
