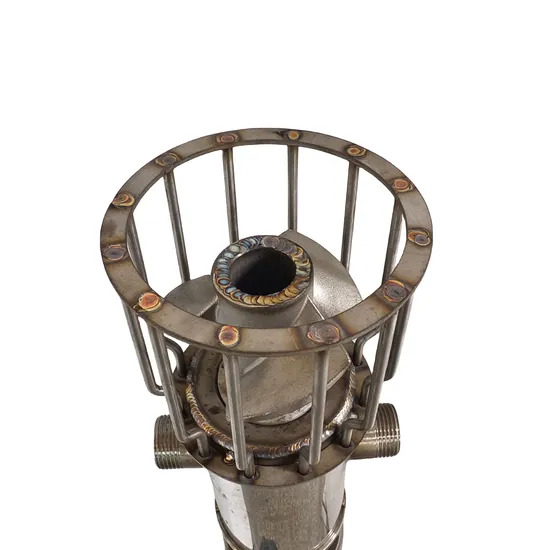

Stainless Steel Oxygenating Equipment Innovation Stainless Steel High-Efficiency Fishery Industry Jet Aerator

Product Description

Product Description
Pond improvement
The main performance is: when the fish pond is hypoxic, the oxygenator can prevent the "floating head" of fish and shrimp. When the upper layer of dissolved oxygen is high on sunny days, it can accelerate the convection of the water body, improve the dissolved oxygen in the water body and the lower layer, which is conducive to the rapid growth of fish and shrimp, reduce the bait coefficient, promote the oxidation and decomposition of organic matter, and reduce the occurrence of diseases. In addition, the circulation of the water body also promotes the reproduction and growth of plankton and improves the primary productivity of the pond.


Submersible Motor Model
Item No.: NFP4B/0.37
NF: submersible motor code
P: means encapsulated
4: suit for well diameter 4"(100m)
B: Types of power supply: B means Single phase, C means three phase
0.37: Power

Model		Power			Frequency	Votage	Rated Current	RPM	PF	Efficiency	Torque
		HP	kW		Hz	V	A	r/min	cosφ	n%	N. m
NFP4B/0.37		0.5	0.37		50	220	2.67	2850	0.99	64	1.3
NFP4B/0.55		0.75	0.55		50	220	3.8	2850	0.99	67	1.9
NFP4B/0.75		1	0.75		50	220	5.05	2830	0.99	68	2.5
NFP4B/1.1		1.5	1.1		50	220	7.3	2830	0.99	72	3.8
NFP4B/1.5		2	1.5		50	220	9.67	2830	0.99	72	5.1
NFP4B/2.2		3	2.2		50	220	14.1	2830	0.99	71	7.5
NFP4C/0.37		0.5	0.37		50	380	1.16	2850	0.69	64	1.8
NFP4C/0.55		0.75	0.55		50	380	1.61	2850	0.74	67	2.5
NFP4C/0.75		1	0.75		50	380	2.17	2830	0.73	68	3.5
NFP4C/1.1		1.5	1.1		50	380	3.05	2830	0.75	72	5
NFP4C/1.5		2	1.5		50	380	4.05	2830	0.75	72	6.8
NFP4C/2.2		3	2.2		50	380	5.98	2830	0.73	71	10.3
NFP4C/3		4	3		50	380	7.18	2830	0.83	71	12.3
NFP4C/4		5.5	4		50	380	9.69	2830	0.82	71	16.5
NFP4C/5.5		7.5	5.5		50	380	13.11	2830	0.82	77	22.5
NFP4C/7.5		10	7.5		50	380	17.7	2830	0.83	77	30.5

The role of the aerator is not only to increase the oxygen of the water body, but also to effectively promote the improvement of the primary productivity and self-purification capacity of the pond, thus improving the water quality and ecological environment of the pond. The water circulation flow generated by it is not suitable for the living habits of some cultured objects such as eel and shrimp, but it has a good effect on promoting the healthy and rapid growth of fish and shrimp.
Company Information

Jinhua Dongda Pump Co., Ltd. is a leading manufacturer of stainless steel submersible pumps in China. The company was founded in 2001, that is, in order to meet the changing needs of various fields, to establish close and specific cooperative relations with our customers, and constantly introduce new products and new services.As water pump industry well-known brands and enterprises, the company has passed ISO9001 / ISO14001 / ISO45001 three system of quality certification, set up contains water pump manufacturing center, submersible motor manufacturing center, logistics center, can be enclosed in demand for all kinds of water to provide more suitable products. Its products are 4"-10" stainless steel deep well pump, submersible pump for DC solar well, SP all stainless steel fountain pump, DMX512 ultra-low pressure stainless steel fountain pump, and non-polluting shielded submersible motor.From the idea of a single innovative solution to the rigorous inspection, from the selection of raw materials to the production technology, we can fully meet each series of products, simple installation process, long durable cycle; Convenient, low maintenance costs, products will be excellent quality, fast after-sales service in the market.
