Cocoa Bean Grinding Machine Cocoa Bean Grinder
| US$2,860.00-3,960.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
30B
Type
Multi-Use Grinding Machine
Processing Object
Gear
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Color
White or Brown
Power
5.5-7.5kw
Capacity
100-300kg/H
Production Time
2 Days
Package
Wooden Case
Function
Crush Corn, Sorghum, Wheat, Beans, Crushed Cake
Shipment
by Fast Ship
Size
600*700*1450mm
Weight
250kg
Transport Package
Wooden Case
Specification
ISO9001, CE, SGS, BV
Trademark
sunshine
Origin
Henan, China
HS Code
8479820090
Production Capacity
1000 Sets Per Month
Product Description

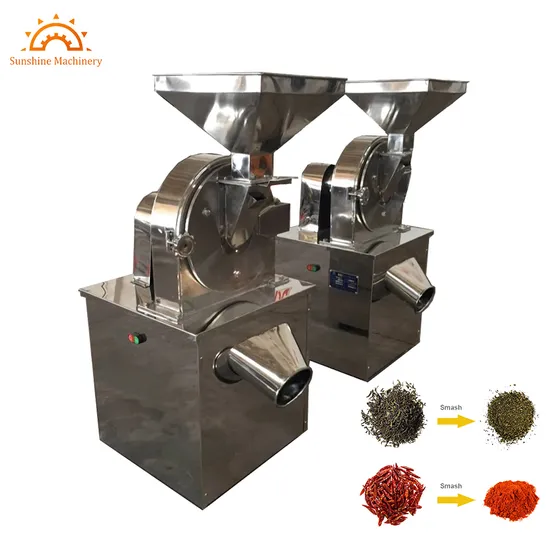

Cocoa bean grinding machine Cocoa Bean GrinderIt is widely used for crushing materials in pharmaceutical, food, and chemical industries.
This machine uses relative movement and between activities chairing and the fixed tooth plate, which makes the material after tooth plate impact, friction, shearing, materials impact each other and get crushed.
Features:
1. Machine according to GMP standard and wholly made of stainless steel.
2. The machine is simple in structure, low energy, easy to clean, is the ideal grinding equipment.
3. To meet the crushing demand slightly below room temperature, water-cooled jacket can be loaded.
4. Complete large and small size, both adaptation and colleges, hospitals, laboratories minicomputers, can produce large line equipment.
Technical Parameters:
| Model | Capacity kg/h | Rotation speed rpm | Feed Fineness mm | Output Fineness mesh | Motor kw | Weight kg | Size mm |
| 15B | 10-50 | 6000 | 6 | 60-120 | 2.2 | 85 | 550*400*850 |
| 20B | 60-150 | 4500 | 6 | 20-120 | 4 | 180 | 550*600*1250 |
| 30B | 100-300 | 3800 | 6 | 20-120 | 5.5-7.5 | 250 | 600*700*1450 |
| 40B | 160-800 | 3400 | 10 | 20-120 | 7.5-11 | 360 | 800*900*1550 |
| 50B | 240-1000 | 3200 | 12 | 20-120 | 11-15 | 550 | 850*900*1680 |
| 60B | 300-1200 | 2800 | 12 | 20-120 | 15-18.5 | 680 | 900*900*1880 |
| 80B | 400-2000 | 2000 | 12 | 20-120 | 22-30 | 850 | 1100*950*1960 |
| 100B | 500-3000 | 1500 | 15 | 20-120 | 30-45 | 1200 | 1350*1000*2100 |
Please provide the follows information before quoting:
1. Which kind of material do you want to grind?
2. What's the fineness of the powder do you need after grinding?
3. How much kg/hour material do you want to grind?
4. What is voltage and frequency of electricity at your local?
