Four-Layer Rubber Tile Vulcanizing Press Machine/Interlock Rubber Floor Curing Equipment
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
XLB-D550*550*4/50Ton
Automatic Grade
Automatic
Structure
Vertical
Warranty
One Year
After-Sales Service
Engineer Overseas Available
Working Experience
More Than 20 Years
Transport Package
Exporting Standard
Specification
Various
Trademark
Eenor
Origin
Qingdao China
HS Code
84778000
Production Capacity
500sets/Year
Product Description
Four-layer Rubber Tile Vulcanizing Press Machine/Interlock Rubber Floor Curing Equipment1-Rubber mixer:
Purpose: it is mainly use to mixing rubber granules, pigment and glue.
Diameter: 850mm
Depth: 320mm
Motor power: 2.2kw.
Production capacity: 180L/batch.
Quantity: 1 sets
2-Barrel Mixer:
Motor power: 3kw
Input: Rubber granules(powder), pigment.
Output: mixture of all input
Capacity:50L/batch
Feature: 4 barrel can use to mix different colors.

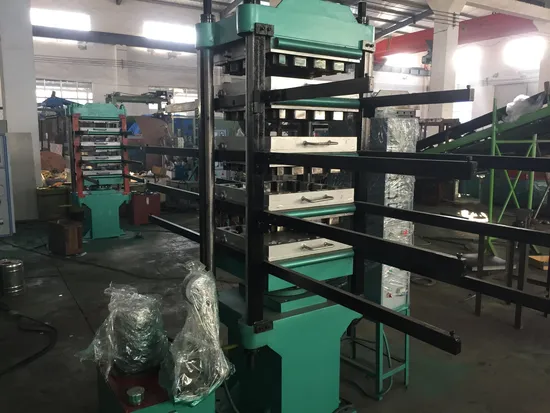

3-rubber tile vulcanizing machine:
| Item | XLB-D550*550*4 vulcanizing machine | |
| Total pressure | MN | 0.50 (50 tons) |
| Hot plate size | MM | 550*550*60 |
| Plate clearance | MM | 150 |
| Working layer | layer | 4 |
| Hot plate quantity | Piece | 5 |
| Piston stroke | MM | 400 |
| Piston quantity | Set | 1 |
| Piston diameter | MM | 200 |
| Structure mode | Four columns | |
| Operation system | Manual operation | |
| Working pressure | Mpa | 1.65 (16.5kg/cm2) |
| Motor power | KW | 2.2 |
| Note: 1-The vulcanizing machine is mainly use to produce rubber tile, Each working layer equipped with two sets molds, it can take turn vulcanization. Thereby improve production efficiency. 2-The machine has automatic fill pressure, alarm and curing time Etc. 3-Production capacity: it will produce about 40-48 SQ.M of rubber tiles in 8 hours. | ||
