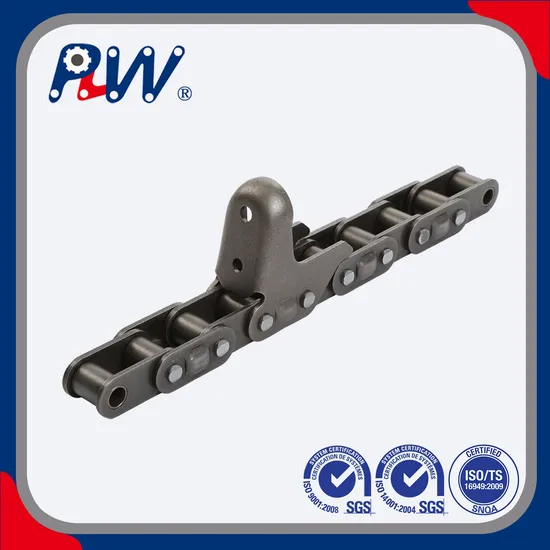

ISO Standard C Type Steel Agricultural Chain Ca627-Cpef7
| US$1.50 | 100 Meters (MOQ) |
Basic Info.
Model NO.
CA627-CPEF7
Material
Steel
Power Source
Sprocket
Sample
for Free
Precision
High
Stability
High
Quality
High
Transport Package
Export Packing
Specification
CA627-CPEF7
Trademark
MADE-TO-ORDER
Origin
China
HS Code
73151900
Production Capacity
50000meters/Month
Product Description
ISO Standard C Type Steel Agricultural Chain with Competitive Price & Bright Surface For Industry AreaProduct Description
1. Material: Alloy steel
2. Surface treatment: Shot peening / Blackening / Zinc-plated / Nickel-plated / made-to-order, etc.
Our company supply the high quality corn harvest chain. This chain is widely used to John Deer corn harvest machine. We have high wear resistant design chain, the pin will adopt special process treatment.
| Product name | ISO Standard C Type Steel Agricultural Chain |
| Materials Available | 1. Stainless Steel: SS304, SS316, etc |
| 2. Alloy Steel: 45Mn, 42CrMo, 20CrMo, etc | |
| 3. OEM according to your request | |
| Surface Treatment | Shot peening, Blackening, Oxygenation, Polishing, Zinc-plated, Nickel-plated, Anodized, etc. |
| Characteristic | Fire Resistant, Oil Resistant, Heat Resistant |
| Design criterion | ISO DIN ANSI & Customer's Drawing |
| Size | Customer's Drawing & ISO standard |
| Application | Corn harvester machine |
| Package | Wooden Case / Container and pallet, or made-to-order |
| Certificate | ISO9001: 2008 |
| Advantage | First quality, Best service, Competitive price, Fast delivery |
| Delivery Time | 20 days for samples. 45 days for official order. |
Detailed Photos
| CHAIN NO. | P | b1 | h2 | B | d4 | T | C | a |
| Cadena No | mm | mm | mm | mm | mm | mm | mm | α |
| CA627-M40A | 30.0 | 19.05 | 20.5 | 36.1 | 6.5 | 3.0 | 63.0 | 15.0° |
| CA627-CPEF7 | 30.0 | 19.05 | 20.5 | 35.5 | 6.5 | 3.0 | 63.0 | 15.0° |
| CA627-CPEF11 | 30.0 | 19.05 | 20.5 | 30.0 | 6.5 | 3.0 | 63.0 | 22.5° |
| CHAIN NO. | P | b1 | L | T | C | F | d4 |
| Cadena No | mm | mm | mm | mm | mm | mm | mm |
| CA620F2 | 42.01 | 24.51 | 30 | 3.25 | 18.4 | 35.9 | 9 |
