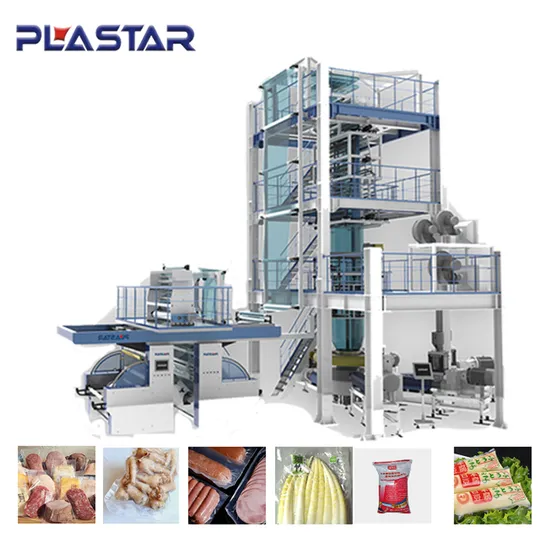

Plastar 5 Layers Blown Film Extrusion Machine Plastic Film Blowing Machine HDPE Blown Film Making Machine

Product Description

Product Description
five layers air column bag blown film extruder for Electronic device packaging use for Stand-up pouch, Soft tube (tooth paste tube), Beverage pack, Lamination film, Protection film, Stretch film, Stretch hood heat shrinking film and food packing.

SPECIFICATIONS FOR FIVE LAYERS AIR COLUMN BAG BLOWN FILM EXTRUDER
FEATURE	MATERIAL TO BE USED	PE PA PP EVA EVOH TIE (CUSTOMRISED, PLEASE ADVISE MATERIAL)
	MAX. FILM WIDTH	MM	800-1600
	THICKNESS OF FILM	MM	0.02-0.2
	THICKNESS TOLERANCE	+-2-3%
	MAX. EXTRUSION OUTPUT	KG/H	480
EXTRUDER	SCREW DIA.	MM	65 X 4; 80 X 1
	SCREW L/D	30:1
	SCREW / CYLINDER	BI-METALLIC (38CRMOALA) HARDNESS 75 OR OVER
	DRIVING MOTOR	KW	45 X 4; 55 X 1
	DIES	MM	400
	TEMPATURE CONTROL	ZONES	29
TAKE-UP UNIT	TYPE	FIXED TYPE / OSCILLATION TYPE
	PINCH ROLLER	165 X 1600L
	TAKE-UP MOTOR	SERVO MOTOR 2.8KW
	TAKE-UP SPEED	45-80 M/MIN
WINDING UNIT	WINDING TYPE	DOUBLE STATION WINDER WITH AUTOMATIC BOBBIN CHANGE
	EFFECTIVE WIDTH	1600 MM
	DIMENSION (LxWxH)	14*10*12 M
OPTIONAL DEVICE	Gravimetric Dosing Unit	Osillating Take Up Unit
	IBC (Internal bubble cooling computer control system)	Line Speed Synchronized with Computer Control
	Thickness Measurement	Chiller
	Thicknss controller	Heat Slitting Device
	Automatic Hopper Loader	EPC / CPC (edge / center Position Control)
	Film Surface Treater	Electronic Tension Control
	Pressure Gauge	Crane for Air Shaft
	Automatic Gauge Control With Automatic cooling ring	Rotary Die
*Specification are subject to change without notice for improvement five layers air column bag blown film extruder will be customerised according to the material to be used, The film specification that going to produce, and application of the film

Detailed Photos
Main Features 1) Simple structure with automatic device ,easy in installation and maintation.
2) Auto thickness profile control (auto Air Ring, Italy made)
3) 360 degrees thickness profile measurement with Osillating system (German technology)
4) Gain in weight dosing unit (italy made)
5) IBC computer control system
6) Horizontal Osillating take up unit.
7) Back to Back automatic surface type winder.
Machine Parts
Name: Auto Air ring & Dosing unit
Brand: Doteco
Original: Italy
control the film thickness automatically, and dosing material automatic.
Main Features
Name: Thickness Measurement
Brand: Kundig
Original: Switzerland
measure the film thickness automatic, cooperating with automatic air ring, make the film thickness tolerance +-2-3%
Machine Parts
Name: Osillating take-up unit
make the film have good stretch ability, and the film will be more smooth.
Main Features
Name: EPC (edge position correction)
Brand: BST
Original: Germany
high precision and make the film winding good film roller.
1) Simple structure with automatic device, easy installation, and maintenance.
2) High output and stable running machine, maxoutput: 50kg/h.
3) use virgin material, the machine can make a thin film, the thickness: 0.006mm.
4) loss-in-weight gravimetricsystem, control extruding output, and thickness. gram/meter.
5) winding roller can handle a heavy film roller. the max film roller can be 1100mm in diameter.
6) easy change film roller design, when the film roller full, just move the arm to change the airshaft. and easy to cut.
