CE Stainless Steel Small Diameter Pipe Polishing Machine Metal Tube Polishing Cleaning Machine Steel Pipe Deruster

CE Stainless Steel Small Diameter Pipe Polishing Machine Metal Tube Polishing Cleaning Machine Steel Pipe Deruster

US$4,500.00-15,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
JT-WY
Type
Surface Grinding Machine
Abrasives
Grinding Wheel
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE
Condition
New
Transport Package
Plywood
Specification
28600*1200*1800mm
Trademark
Jotun
Origin
China
HS Code
846090
Production Capacity
100/Year

Packaging & Delivery

Package Size
28600.00cm * 1200.00cm * 1800.00cm
Package Gross Weight
3000.000kg

Product Description

Product Description

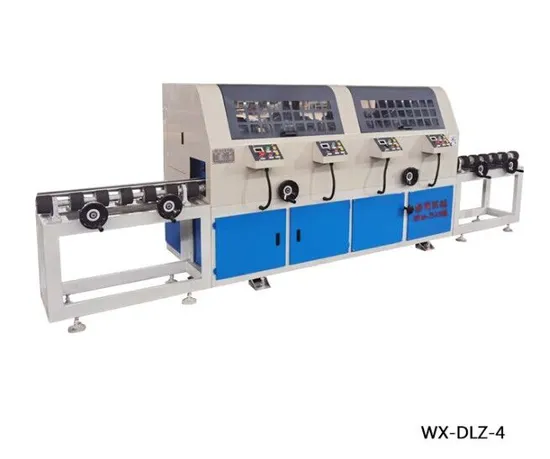

Pipe External Grinding Machine
Thismachinecanbeinstalledwithavarietyofbrowncorundumandwhitecorundumgrinding
wheelsandpolishingwheelssuchasimpellerwheels,hempwheels,nylonwheels,woolwheels,
clothwheels,PVA,etc.Theguidewheelhassteplessspeedcontrol,simpleandconvenient
operation,andoptimizedsteelstructure.Theperformanceismorestable.Thereservedfanport
canbeequippedwithadustremovalfanorawetdustremovalsystem.Itcanbeequippedwithan
automaticloadingandunloadingmechanismaccordingtotheprocessinglengthoftheworkpiece.
Thisequipmentcanbeequippedwithagrindingwheeltohavealargemarginonthesurfaceof
roundsteelandroundpipeswithseriousdefectsgrindinganddescaling.
Product Parameters
Model
JT-WY-2
JT-WY-4
JT-WY-6
JT-WY-8
JT-WY-10
Grinding heads
2
4
6
8
10
Input Power(KW)
8.6
18
26.5
35.5
44
Processing diameter
4-150mm
Processing length
100-6000mm(can be customized)
polishing wheel(mm)
250/300*40/50*32(Width can be assembled)
Specification of guide wheel
100*200mm
Speed of polishing wheel
3000r/mm
Guide wheel speed
Stepless speed regulation
Polishing efficiency
0-20m/min
Surface roughness
R<0.02μm
Wet water cycle dust removal
Optional
Dry fan dust removal
Optional
Grinding head feeding
Digital display electric adjustable
Machine weight(kgs)
800
1600
2400
3200
4000
Machine weight(meters)
1.4*1.2*1.0
2.6*1.2*1.0
3.8*1.2*1.0
5.0*1.2*1.0
6.2*1.2*1.0

Detailed Photos
Product Feactures
Company Profile
Since the establishment of the company in 2013, Our company has provided high-quality and best-price metal polishing machines for countries around the world, which are suitable for food and beverage, pharmaceutical, chemical, water treatment, new energy, etc. industries.
China Jingteng Polishing can provide you with different metal surface polishing machines, tank polishing machines, dish head polishing machines, tube polishing machines, sheet polishing machines, metal deburring machines, CNC polishing machines, etc.
All machines provided by China Jingteng have the following great advantages,
1. We have our factory and a professional design team, we can design suitable high-quality machines according to each customer's requirements.
2. We have local technical support services in some countries and can provide local installation and commissioning services.
3. Our machines can help end customers greatly improve polishing efficiency,
Packaging & Shipping
Oversea Customer Case
FAQ
Q:Why choose our machine?
A:We are professional metal surface finishing machine supplier,
So we can offer better price and after-sale service and shorter delivery date.We have successfully exported to Europe, USA, South Africa, Southeast Asia and so on foreign countries. We all get good feedback.
Q: Can the machine be customized according to the special requirements of customers? A: We have strong design & technical capacity, we can design and manufacture as per the customer's requirement.
Please tell me your requirements first, then we can designed the suitable machine to you.
Q: Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email. Meanwhile
our engineers are available to service overseas. We have partner in part countries too if you want local service.
Q: Do you have CE certification and other documents for customs clearance?
A: Yes, we have CE,
At first we will show you after shipped we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs
clearance. If need, We can do other clearance documents, such as Certificate of Origin.
Q: How about warranty?
A: We provide a FREE ONE YEAR WARRANTY for machine parts. (Non-human factors) Lifetime technical support
and service, and consumables at the lowest price.
