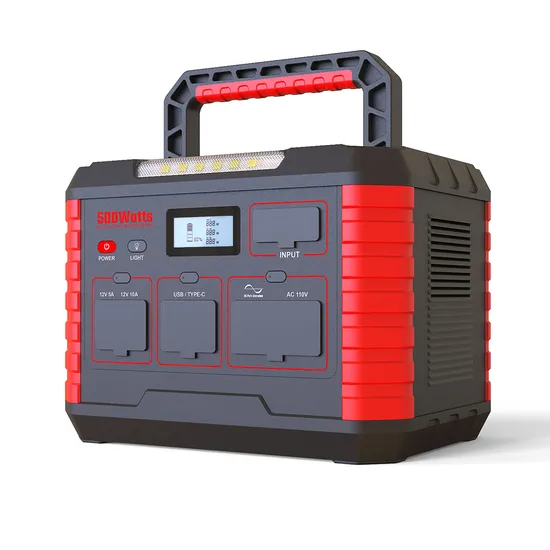

LED LCD Display Low Frequency 3 Phase Input and Output Online UPS with Qi Wireless Charging/QC3.0 USB Port/Type-C Port

Product Description

Specification

No	Items	Parameter	Standard
1	Model	AS500
2	Battery type	Li-ion 18650 cell	3.7V/2600mAh
3	Rated Capacity	499.5Wh
4	Min Capacity	499.5Wh
5	Output	USB output port	3*QC3.0 USB 1* Type C
		USB output port working time	>30h
		DC output port	2*DC14V/8A Max.
		DC output port working time	>5h
		AC output port	2* AC 220V 50Hz/AC110 60Hz 330W Pure Sine Wave (Universal socket)
		Car output port	DC 14V/8A(120W max)
		Car output port working time	>2.5h
		Wireless Charging	18W
		Reverse charging protection	Yes
6	Charging	Charging voltage	12V/18V
		Charging Current	10A
		Charging Time	About 8h
7	Self-consumption	On working	200mA
		On standby	5mA
8	Dimensions	L*W*H	280*200*200mm
9	Weight	net weight	4.8KG
10	Range of Working Temperature	Charging:	10ºC~40ºC
		Discharging:	0ºC~75ºC
11	Range of Storage Temperature	Less than 1 year	-20ºC~+25ºC
		Less than 3 months	-20ºC~+45ºC
		Less than 1 month	-20ºC~+60ºC

Company Profile
Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in battery business. Facility Aare: 15000 square meters; Employee: 1000.
We specialize in manufacturing and exporting lithium-polymer batteries, lithium-ion batteries, LiFePo4 rechargeable batteries, rechargeable batteries for 3C consumer electronics such as TWS earphone,Bluetooth speaker, flashlight, POS machine energy storage system, power tool, BMS and all kinds of PCM for batteries and OEM/ODM battery packs. We also support customers with an outstanding service and a customized POS concept.
Certificate
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ 1,Q: What's the main product in Mica?
A: Rechargeable LiFePO4 battery, Li-ion, Lipo battery and power battery pack.
2,Q: Do you have any protection for battery pack?
A: Over-charge protection
Over-discharge protection
Over current protection
Cell balancing function
Over temperature protection
3,Q: What is over discharge?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in battery appearance
4. Q: Can I have a sample order?
A: Yes, we accept sample order to test and check quality. Batteries can be made as require.
5. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.
6. Q: How about the lead time?
A: Samples will takes 5-7 business days. Mass production will takes 25-30 days. It depends on quantity.
7. Q: How about shipping and delivery time?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.
8. Q: What about after-sale service?
A: We will offer you 1-5 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.
