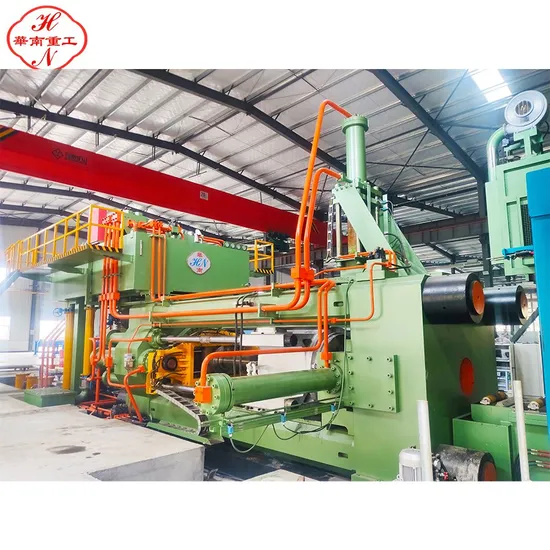

Highly Durable and Productive Extruding Profile 700t-1000t Aluminum Extrusion Press Machine

Product Description

Product Description
This product combines the advanced technology of the extrusion industry at home and abroad, the overall structure is reasonable, the appearance is beautiful, the degree of automation is high, the speed is fast, the automatic and manual switching is easy to operate, it is equipped with an independent mold locking device, missing cake extrusion protection device, constant speed, prestressed frame structure, etc., reliable performance, high production efficiency, and low energy consumption.
The whole machine adopts PLC for automatic control, and the main electrical components adopt French Schneider, Japan Mitsubishi, Omron and other famous brand electrical components. The oil pump in the hydraulic system adopts Rexroth main plunger pump and Japan Tokyo Keiki high-performance vane pump, the high pressure part adopts Rexroth hydraulic components, and the others adopt Taiwan Jiugang. The company can choose according to the requirements of the user's order.
This model is suitable for the production of various aluminum and aluminum alloy profile products.

Product Parameters

Model	Billet Dia and Length	Piston Dia	Side Cylinder Dia	Die Holder Dia & thick	Main Cylinder Stroke	Master Cylinder Rapid Forward Speed	Master Cylinder Rapid Backward Speed	Extrusion Speed (mm/s)	Total Power (KW)	Weight (Ton)
600T/600UST	Φ80-90 x 500	Φ580	Φ140 x 2	Φ190 x 200	1200	270	434	9.89	83	26
700T/770UST	Φ90-100 x 550	Φ620	Φ140 x 2	Φ220 x 250	1200	301	619	10.52	103	29
800T/880UST	Φ100-110 x 600	Φ650	Φ180 x 2	Φ220 x 250	1250	238	341	15.24	162.5	39
1100T/1210UST	Φ120-127 x 680-720	Φ750	Φ160 x 2	Φ250 x 260	1380	396	362	12.3	182.5	55
1250T/1375UST	Φ130-135 x 800	Φ840	Φ200 x 2	Φ320 x 320	1500	358	651	13.08	252	70
1500T/1650UST	Φ152 x 900	Φ870	Φ220 x 2	Φ400 x 395	1800	280	362	13.20	345	90
1650T/1800UST	Φ178 x 900	Φ920	Φ220 x 2	Φ400 x 395	1800	280	362	15.2	345	120
1800T/1980UST	Φ178 x 1050	Φ950	Φ200 x 2	Φ420 x 420	1700	461	452	15.2	429	132
2100T/2310UST	Φ203 x 1050	Φ1000	Φ220 x 2	Φ400 x 400	1750	368	288	15.2	439	180
2200T/2420UST	Φ203 x 1100	Φ1000	Φ220 x 2	Φ400 x 400	2170	378	410	15.2	530	190
2500T/2750UST	Φ228 x 1100	Φ1080	Φ220 x 2	Φ530 x 530	2170	470	348	15.2	530	250
3000T/3300UST	Φ254 x 1200	Φ1180	Φ250 x 2	Φ560 x 560	2170	293	223	15.2	540	300
3600T/3960UST	Φ305 x 1350	Φ1250	Φ320 x 2	Φ510 x 510	2350	380	360	15.2	721	350
4000T/4400UST	Φ320 x 1410	Φ1350	Φ300 x 2	Φ650 x 650	2350	437	516	15.2	911	430
4500T/4950UST	Φ355 x 1400	Φ1420	Φ320 x 2	Φ700 x 650	2550	293	227	15.2	911	510
5500T/6050UST	Φ380 x 1600	Φ1520	Φ320 x 2	Φ805 x 805	2550	246	312	15.2	1003	750
7500T /8250UST	Φ488 x 1700	Φ1760	Φ400 x 2	Φ1000 x 1070	2550	220	360	15.2	1500	900
The above parameters are for reference only and can be adjusted according to the actual situation of the customer.

Electric hydraulic components

1.The electrical control components adopt French Schneider

2.PLC adopts Japan Mitsubishi

3.The high-pressure part adopts Rexroth hydraulic components, and the others adopt Taiwan Jiugang

4.The main cylinder seal adopts imported products

5.Plate heat ex-changer:

Company Profile
Huanan Heavy Industry Technology Co., Ltd. was established in 1993. It is a private enterprise with good reputation, stable orders and relatively complete management that specializes in manufacturing extrusion equipment and metal forging and heat treatment processing.
After more than 20 years of unremitting efforts, In 2013, our company established a new production base in Enping City, Guangdong, covering an area of more than 50,000 square meters, with a registered capital of 10.8 million yuan, fixed assets of more than 100 million yuan, and more than 170 employees.
The products mainly involve the manufacturing of complete extrusion press equipment used in the copper and aluminum profile extrusion industry, as well as related accessories. With strong technical strength, complete equipment, and strict quality control, our company's production capacity can now reach the level of manufacturing complete copper and aluminum profile extrusion equipment of 160MN and below and related supporting accessories below.
The company has 4 production workshops, It is currently the most complete professional manufacturer of copper and aluminum profile extrusion machines and accessories in Guangdong Province.
Copper & Aluminum profile extrusion press manufacturing workshop Metal mold forging workshop Mechanical processing workshop Metal heat treatment workshop
Project Cases

Company Honor

FAQ
Q1: How is the quality of Huanan Brand machine and the service life?
Huanan Brand is one of the best equipment for extrusion manufacturers in China. According to the feedback of old customers, under normal circumstances, the life of the machine can reach 15 years or more. Many well-know aluminum manufacturers are also our cooperative customers.
Q2: How to choose the right type machine ?
Please tell to us what kind of products you make ?Provide the profile sectional drawing dimensions ,we will according your size to calculate the suitable machine size.
Q3. Will Huanan provide installation service?
When the equipment arrives at the customer's factory and meets the installation conditions, we will send technicians to the site to install it and train customer employees on how to use the equipment correctly.
Q4:What is the delivery time of Huanan Machines?
For ordinary small-sized machine such as 600-1000MT, 30 days; middle-sized machine such as1250-1800MT, 45-60 days, for big-sized machine such as 2000-3000MT, 180 days.More than 3000MT, half year to one year delivery date. We could also design and make the whole production line for our customer, around 3-10 months.
Q5: What services Huanan can do for you :
Huanan will do professional One-station services
(pre-sales, in-sales, after-sales service system):
Technical consultation and support;
Making a complete production proposal based on customer's needs;
Design/manufacturing/inspection/uploading/shipping/all original documents services
Installation/technology training and support/maintenance in a life time
