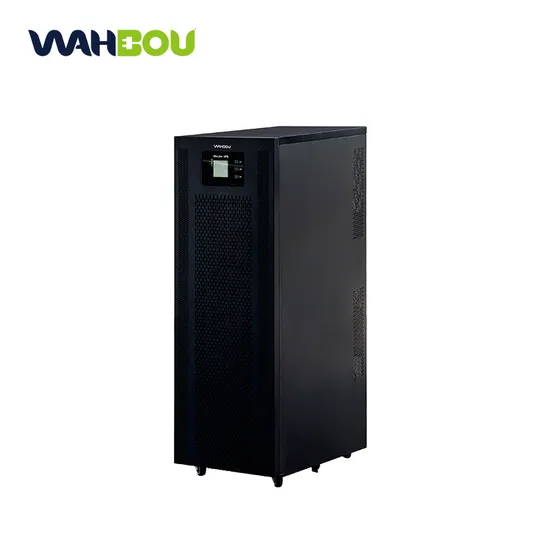

Wahbou High Frequency Three Phase Input Three Phase Output Xt07 80kVA Online UPS High Frequency Power Supply
| US$85.00-2,650.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
XT33 80KS
Protection
Overvoltage
Application
Communication
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Large Type
Equipment Mode
Decentralized
Brand
Wahbou
Output Power Factor
0.9
Input Voltage Range
208-478VAC
Working Frequency Range
40-70Hz(Settable)
Input Power Factor
>=0.99
Charger Current
Settable 1~6A(Customizable)
Transport Package
Neutral Carton Box
Specification
865x300x960mm
Trademark
WAHBOU or OEM
Origin
Guangdong, China
HS Code
8504402000
Production Capacity
100000 Sets/Year
Packaging & Delivery
Package Size
90.00cm * 30.00cm * 96.00cm
Package Gross Weight
86.000kg
Product Description
Wahbou High Frequency Three Phase Input Three Phase Output XT07 80kVA Online UPS High Frequency Power SupplyOur Advantages
Product Description
Product Parameters
| Model | VT33 60KS | VT33 80KS | |
| Rated Power | 60kVA/54kW | 80kVA/72kW | |
| Input | Voltage Range | 208-478Vac 3P4W+G | |
| Working Frequency Range | 45-55Hz at 50Hz/ 54-66Hz at 60Hz (self-adapting) | ||
| Input Power Factor | ≥0.99 | ||
| Output | Rated Voltage and Accuracy | 380/400/415Vac(1±1%) 3P4W+G | |
| Output Frequency | Synchronized with input ; mains frequency ≥ maximum ±10%, output frequency is 50(±0.2%)Hz ;50/60±0.2% (battery) | ||
| Rated Current | 15A | ||
| Output Power Factor | 0.9 | ||
| Output Harmonic Wave | ≤2% liner ; ≤5% non-liner | ||
| Crest Factor | 3: | 1 | |
| Output Overload | Load≤110%: 60 mins; Load≤125%: 10 mins; Load≤150%: 1 min; Load≥150% shutdown immediately | ||
| Conversion time between Mains Power and Battery | 0ms | ||
| Efficiency | normal mode ≥94.5% | ||
| Battery | Rated Voltage | default ±192Vdc | |
| Quantity | 32-40 | ||
| Charging Current | 20A max | ||
| Dimension (LxWxH) mm | 865x300x960 | ||
| Weight | 85.5kg | ||
| Working Temperature | 0ºC-40ºC | ||
| Altitude | <1500m | ||
| Storage | -25~55ºC | ||
| Relative Humidity | 0-95% (non-condensing) | ||
