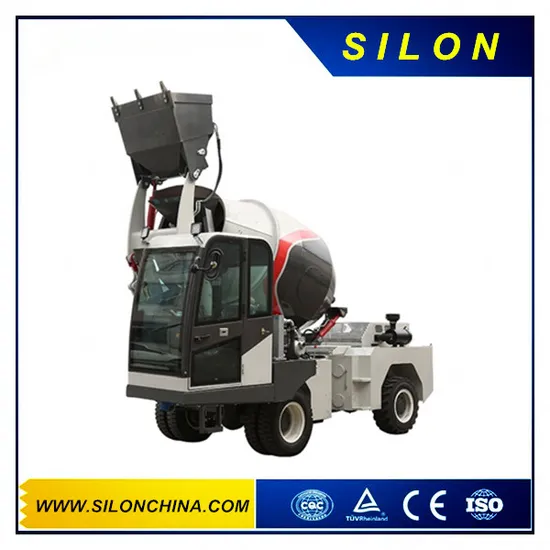

China Cheap Price 4.0 Rotary Drum Cement Concrete Mixer Truck/ Self Loading Concrete Mixer with EPA Engine
| US$43,000.00 | 1 Unit (MOQ) |
Basic Info.
Model NO.
sy4.0
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
4.0m3/H
Feeding Height
2000mm
Vibrating Amplitude
0.8mm
Certification
ISO9001: 2000, CE
Condition
New
Color
White
Concret Ouput
4.0m3
Front Shovel Capacity
5567L
Fuel Tank
280L
Type of Drive
4WD
Engine Model
Ycd4p22t-130
Rated Power
92kw
Drum Mixing Volume
4.0m3
Weight
8500kg
Speed
0-45km/H
Dimension
7220*2380 *3460 mm
Optional Engine
Cummins ( EPA)
Wheel Drive
4X4
Transport Package
Nude
Specification
CE, ROHS, SGS, CCC, ISO,
Trademark
SILON
Origin
Luoyang, China
HS Code
8705400000
Production Capacity
500 Units/Month
Product Description
Silon Concrte Feeding mixter Truck Features
1:Lead design, automatic feed mixing system.
2:Easy to operate.
3:Efficient output, saving time and effort, saving cost.
4:Mixing tanker and loader, the transport car is a perfect combination of three and one.
5:Guarantee 6 months, perfect after-sale service.
6:290-degree rotating mixing tank discharge.
Techncial Parameters
| Drum Capacity | 5567L |
| Discharing Height | 2.0m |
| Production Capacity | 4.0m3/h |
| Engine | YCD4P22T-130 |
| Transmmsion | Turquo Converter, 4WD |
| Walking Speed | Low Speed :0-25km/h High Speed: 0-45km/h |
| Cabin | Lef-Hand Drive ,Rops, Front Loading Shovle |
| Hydraulic System | Chinese Hydrulic System |
| Discharing Direction | 180 Degree Rotation (90 Degree Each) |
| Operation Lever | Electrionilly Control Four-Speed Joystick |
| Bucket Capacity | 500L |
| Chute | Hydraulic adjustable angle, in order to increase Discharing Length |
| Water Supplyer System | Hydraulic DriveN Auto-Priming Pump, washing vehicel with high pressure water pump,Electrionilly Control Auto-Priming Pump, Sprinker 100L/min |
| Brakes | Air Brake Dual Independence Circurs |
| Tyre | 12-16.5-12PR |
| Power System | 24V |
| Fuel Tanker | 280L |
| Hydraulic Oil Tanker | 280L |
| Opeartiton Weight | 9800kg |
| Dimension | 7220 × 2380 × 3460mm |
Detailes Photo of the mini Concrete Feeding Mixer Truck ( HK1.2)
Our Factroy and workshop:
Our Contact Information
Our Certificaiton
