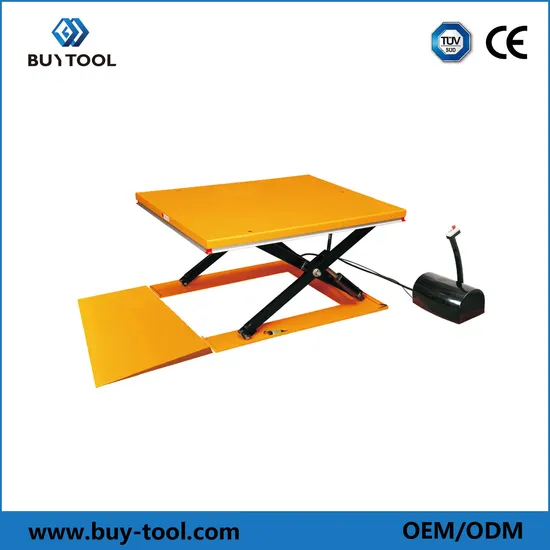

Hy1000 Hy2000 Ultralow Slope Single Hydraulic Scissor Lift
| US$999.00-1,199.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HY1001, HY1005, HY1501, HY2001
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Moves
Stationary
Driven Type
AC
Running Mode
Stationary
Feature
Explosion-Proof
Certification
CE
Capacity
1000kg, 1500kg, 2000kg
Min. Height
85-105mm
Max. Height
860-870mm
Table Size
1450*1140mm
Lift Time
25-35s
Color
Customizable
Net Weight
357-405kg
Certificate
Ce Approved
Scissor
Single Scissor Lift Table
Type
Stationary Lift Table
Accessories
Ramp
Power
380V/50Hz
Stroke
775mm
Product Name
Low Profile Lift Table
Delivery Time
One Month
Transport Package
1PC/Wooden Case
Specification
customizable
Trademark
Buytool
Origin
Made in China
HS Code
8427900000
Production Capacity
3000PCS/Month
Packaging & Delivery
Package Size
145.00cm * 114.00cm * 100.00cm
Package Gross Weight
365.000kg
Product Description
Ce Certified Hy1000 Hy2000 Single Scissor Lift Table for Warehouse Product DescriptionHeavy duty design with larger platform.
Loading ramp is a standard equipment.
Oiless bushings on pivot points.
These tables achieve a low closed height, eliminating the need for a pit installation.
They are manufactured to all European safety standards including EN1570: 1999.
Remote power pack with pedestal and controls, pretected to IP54.
Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
24V control box with UP and DOWN buttons and emergency stop.
External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. Power supply are AC308V/50HZ/3phase.
Hose burst safety valve to stop the lift table lowering in case of hose breakage.
Removable lifting eyes to facilitate handling and installation of the lift table.
Mechanical safety chocks for maintenance. Product Parameters
| Model | Capacity (kg) | Platform Size (mm) | Min.Height (mm) | Max.Height (mm) | Stroke (mm) | Lifting Time (second) | Power pack | Net Weight (kg) |
| HY1001 | 1000 | 1450×1140 | 85 | 860 | 775 | 25 | 380V/50HZ,AC 0.75kw | 357 |
| HY1002 | 1000 | 1600×1140 | 85 | 860 | 775 | 25 | 380V/50HZ,AC 0.75kw | 364 |
| HY1003 | 1000 | 1450 × 800 | 85 | 860 | 775 | 25 | 380V/50HZ,AC 0.75kw | 326 |
| HY1004 | 1000 | 1600 × 800 | 85 | 860 | 775 | 25 | 380V/50HZ,AC 0.75kw | 332 |
| HY1005 | 1000 | 1600 × 1000 | 85 | 860 | 775 | 25 | 380V/50HZ,AC 0.75kw | 352 |
| HY1501 | 1500 | 1600×800 | 105 | 870 | 775 | 30 | 380V/50HZ,AC 2.2kw | 362 |
| HY1502 | 1500 | 1600×1000 | 105 | 870 | 775 | 30 | 380V/50HZ,AC 2.2kw | 401 |
| HY1503 | 1500 | 1600 × 1200 | 105 | 870 | 775 | 30 | 380V/50HZ,AC 2.2kw | 415 |
| HY2001 | 2000 | 1600×1200 | 105 | 870 | 775 | 35 | 380V/50HZ,AC 2.2kw | 419 |
| HY2002 | 2000 | 1600×1000 | 105 | 870 | 775 | 35 | 380V/50HZ,AC 2.2kw | 405 |
Detailed Photos
Display Of Real Photography
Packaging & Shipping
Range Of Application
FAQ
Q: What about the quality of the products?
A: Our products are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of products before shipment;
5. If needed, inspection by buyer.
Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.
Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
