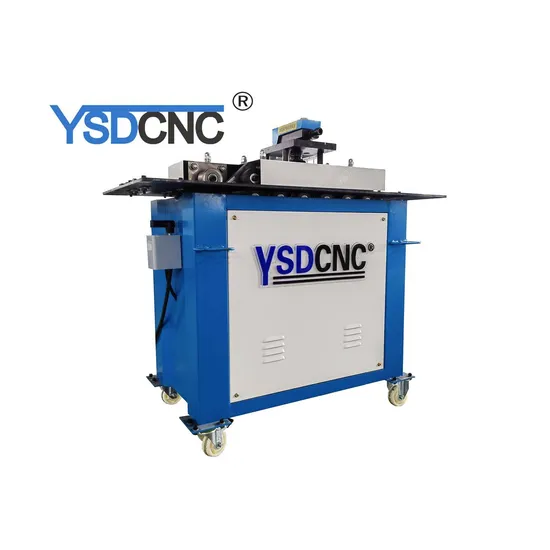

Ysdcnc Duct Forming Pittsburgh Lock Seam Machine Pittsburgh Lock Machine Lock Former Machine

Product Description

Product Description
Main Features It is a versatile machine and change a variety of models to meet different duct shapes made of bone type, Processing board
thick scope 0.2-1.2 millimeter, heavy series processing scope 0.2-1.5 millimeter, rolling wheels can freely change according
to customer requirements. All mechanical gears, shaft rolling wheels are made of high quality steel, through the high-frequency,
carburizing, quenching and other processes, to ensure mechanical durability, quality and stability, easy handling, to meet the
needs of different users.
Specification

Model	Power (kw)	Capacity (mm)	Weight (kg)	Package size (LxWxH)
SA-12HB	1.5	0.2-1.2	280	1030x580x1030(mm) 40*23*40inch
SA-15HB	2.2	0.8-1.5	300	1150x600x1100(mm) 45*23*43inch

Details Products

Forming machines are produced by high standard CNC machine tools, with high precision, biting flat, never run away from the characteristics.

Standard three-phase power 220V/380V, can be customized according to the requirements of 110/400/415/480V motor. Motor for the whole copper core motor.
Roller material: GCR15 (alloy steel), roller hardness of 58-63 ° Rocky hardness (wear long life), solid and durable.

High quality alloy steel material of roller shaft, gear 40CR.Process: heat treatment adjustment, high frequency quenching process.

Bearing: outer ring double block with security bracket NK bearing, bearing force to use a long time.

Our Service

1:The machine provides 36-month warranty and free online support and service from engineers. 2: Provide online technical supportand service for life, even after the warranty period, the engineer team can always
provide you with online service at no additional cost. (All our clients have this service, we think it is very necessary)
3: During the warranty period, we can send you spare parts for free replacement.
4: After the machine is completed, free whatsapp online inspection service will be provided.Bend the product according
to your requirements, then test it.
5: Pack and record the video, and submit it to you for acceptance service, or you can directly watch online on whatsapp.
6: We can also provide the following information, and it is very necessary.photo of the rating plate you apply on the
machine itself-basic manual for the machine in English.

Hello, our standard model has a large number of stock, regular shipping time 0~7 days. The custom model can be
completed in 7-25 days (according to the size of the machine, different time.

We are a 7-year member of , and we support third-party guarantee transactions of credit insurance transactions,
which can better protect your financial security.

The company provides a variety of transaction methods: EXW, FOB, CIF, DDU, DDP and other education methods
support customs declaration, export, transportation and delivery to the door and other one-stop services.

You can trade through TT, wire transfer, transfer, paypel, letter of credit, credit order and other transaction methods.


We can deliver to your forwarding warehouse, or directly to your door, and deliver the goods to your hands.We cooperate
with well-known international shipping companies such as COSCO Shipping, and we can also be responsible for the customs
clearance of your goods, delivery of goods to your door, etc.And we provide free shipping insurance. If there is any damage
during transportation, our insurance company will settle the claim for you, and we will send you free shipping. (If you have
any questions, please contact us as soon as possible, and we will guide you how to operate? We are your most trusted
partner, we are your eyes and hands.)

Our Company
Nanjing Shanduan CNC Machine Tool Co., Ltd. has 38 years of industry experience. We specialize in four main product lines:
air duct production lines, CNC bending machines, shearing machines, laser cutting machines, and shredders for energy
recovery. With over 300 employees, including 30 sales engineers and 35 service engineers, our factory spans 40 acres and
is equipped with 3 floor-type boring and milling machines, 6 gantry planers, 10 radial drilling machines, and 25 CNC machining
centers. In total, we have over 200 large and small-scale equipment.
With over 100,000 customer case experiences and product transportation to over 100 countries, we have a proven track
record in serving a wide range of clients. We are dedicated to assisting you in securing orders and providing high-quality
products and services. Our commitment to excellence has resulted in many satisfied customers who are eager to
become our agents.

FAQ
Is it in stock?
Hello, we have a large amount of stock for standard models, and the regular delivery time is 0~7 days. Customized
models can be completed in 7-30 days (depending on the size and voltage of the machine, the time is different.)
How to buy? Our company supports a variety of transaction methods, and you can deliver the goods to your door with
a deposit in advance.Various transaction methods such as payment to delivery or delivery to the factory. Consult for details: +8618851629789
How about the after-sales service?
15 minutes quick feedback mechanism. 1-to-1 technical guidance. One year warranty and lifetime service. Free
replacement of non-wearing parts during the warranty period, and lifelong online technical support provided outside
the warranty period. The factory provides spare parts, and the factory installation video provides after-sales service.
How about your quality?
Our company's products are produced according to national standards, and have passed TUV, SGS, BV, CE and other
certifications. Quality assurance, EU approval, the products sell well in more than 100 countries.
What other services do you have?
Free counter, free customs declaration, free installation training for export, free online technical guidance.
