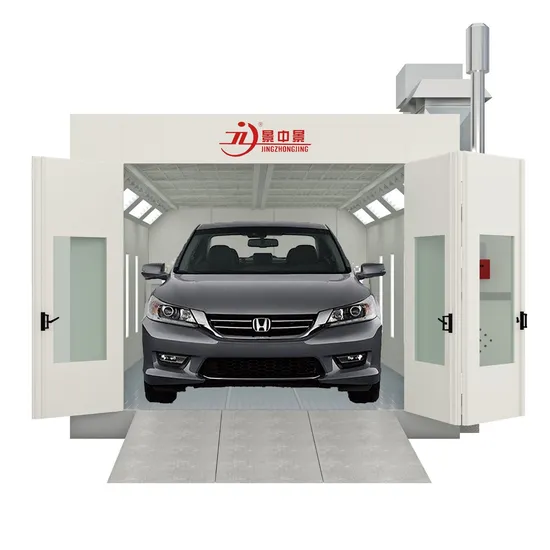

European Standard Water-Based Baking Oven Auto Painting Equipment Paint Spray Booth

Product Description

Water-Based Paint Booth Spray European Standard Baking Oven Auto Painting Equipment Product Parameters

Outside Dimension (mm)	18156*6906*5800(L*W*H)	Inside Dimension(mm)	18000*5000*5000(L*W*H)
Front Door(mm)	4000*4500(W*H)	Service door (mm)	800*2000(W*H)
Total Power	24KW
Cabin system	Wall panel	50mm EPS sandwich panel, steel sheet thickness: 0.426mm
	Ceiling panel	50mm rock-wool panel.
	Windows	4mm safety tempered glass
Air Make-up System	Air Inlet fan system	6*7.5kw centrifugal belt-drive fan, proof-explosion motor.
	Exhausted fan system	3*15kw centrifugal belt-drive fan, proof-explosion motor.
	Ai capacity for fresh air	22000m3/h *6
	Air capacity for exhausted air	19500m3/h *3
	Air Flowing speed	0.25m/s in empty booth
	Air Control method	One manual damper for exhausted system
	Exhausted ducting	6meters straight ducting, one 90°elbow for each unit fan system.
Purification System	Pre-filter	G3 grade
	Ceiling filter	EU5 / F5
	Floor filter	green fiber glass filter / G3 grade
	Exhausted fan Filters	M green fiber glass filter.
Heating System	Heat Exchanger	SUS304 material, argon arc welding.
	Heating burner:	3 sets Riello RG5S diesel oil burner(gas burner for option)
	Heating productivity	260000Kcal/h/ burner
	Spray to baking switch	20N BELIMO brand electrical damper
	Chimney ducting	6 meters stainless ducting for each heating system
	Max heating temperature	80degrees
	fuel consumption	10-15L /vehicle
Lighting System	Ceiling lights	22 Units, each 4 x 36W lamps, Total 3312 W
	Side lights	26 Units, each 2 x 36W lamps, Total 1872 W
	Illumination	900LUX
Controlling system	Micro-computerized programming system	Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge

Product Description
Detailed Images
♦ Using High Quality Materials
♦ Stuidy and Durable Basement
♦ Safe and Simple Operation

Company Profile
Jiangsu Jingzhongjing Industrial Paint Equipment Co., Ltd, is located in the Yangtze River Delta Economic Zone, China Industrial Painting Base, Yancheng city, Jiangsu Province. We have the plant area of 99000m2, garden-style industrial zone. We have the staff of 260, including 20 engineers with 15years designing experience. Our annual production capacity can achieve 2, 500 sets paint booth.
We adhere to the "heritage of big business style, classic gaming counterparts, - creating the world brand" core values. Pursuit high goals, has won wide recognition and praise from the government and the market.
Our products are JZJ Brand spray booth, sandblasting booth, shot blasting machines etc. Our products have passed the ISO9001, EU CE, the products have been shipped in the domestic 34 provinces and more than 50 countries like Germany, Japan, Russia etc.
Our products are well-known in the industrial of the automobile, aviation, wind power, nuclear power, engineering machinery, machine tool manufacturing, and other industries.
Welcome the customers from China and all over the world to join us!

Q: What standards are you carrying out for your products?
A: We produce according to the ISO 9001 and ISO 14001 rules.
Q: How to install the machine?
A: We will arrange 1-2 engineers to your factory to guide installation and assembly.
Q: What is your international market?
A: We have exported our products to about 50 countries and regions worldwide, such as the US, France, Singapore, Australia, the Middle East, Germany, Japan, Russia, Sweden, Finland and more
Q: What is your productivity?
A: We have two production basement - Jiangsu Jingzhongjing Industry Coating Equipment Co. Ltd and Guangzhou Jingzhongjing Industrial Painting Equipment Co. Ltd. We are specialized in automobile spray booth, automobile metal collision painting line, prep-station, shower test booth, sand blasting booth, shot blasting machine and more.
Our yearly productivity is 2,500 sets spray booth, so we can send you products quickly.
Q: Do you have the right to export?
A: Yes, we are registered in the customs and gained the right to export by ourselves.
