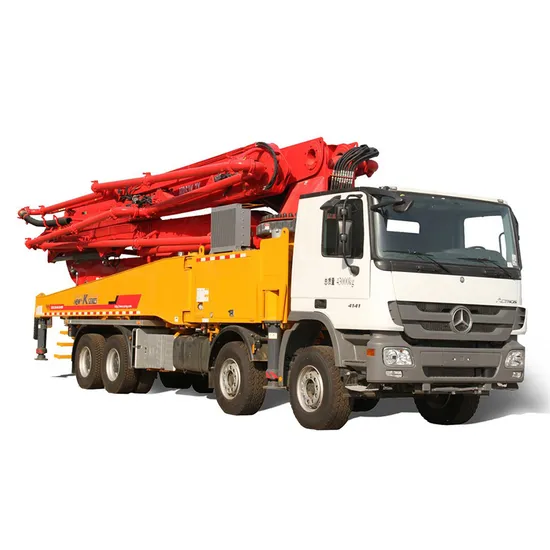

52m Hb52K China New Diesel Mini Small Truck Mounted Concrete Pump Truck for Sale
| US$80,000.00-250,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HB52K
Type
Concrete Pump
Shotcrete Type
Dry
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
120m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.0mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Dimension
13120×2500×3990mm
Operating Weight
34000kg
Transport Package
by Roro, Bulk Cargo or Container Transprot
Specification
52m
Trademark
NEWINDU
Origin
Jiangsu, China
HS Code
84295100
Production Capacity
50 Uint/ Month
Product Description
52m HB52K China New Diesel Mini Small Truck Mounted Concrete Pump Truck for SaleFeature
HB52K Truck-Mounted Concrete Boom Pumps
1. V7 series truck-mounted concrete pump is new generation equipment which is developed by SCHWING German technology.
2. It is highly reliable and durable with seven technical highlights. More advanced boom structure technology, More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system. Parameters
| Description | Unit | Parameter value | ||
| Outline dimension | mm | 13120×2500×3990 | ||
| Overall weight | kg | 34000 | ||
| Chassis | Model | ZZ5347V484MD1 | ||
| Max. speed | km/h | 90 | ||
| Max. grade-ability | % | 40 | ||
| Wheelbase | mm | 4800+1400 | ||
| Tire | 315/80R22.5 | |||
| Engine | Model | MC11.40-40 | ||
| Max. power | kW | 297 | ||
| Max. torque | N·m/(r/min) | 1900/1000~1400 | ||
| Displacement | L | 10.518 | ||
| Emission standard | Euro IV | |||
| Pumping system | Theoretical output | m3/h | 170 | |
| Concrete pumping pressure | MPa | 8 | ||
| Theoretical pumping times | Time/min | 23~26 | ||
| Delivery cylinder diameter ×stroke | mm | φ260×2000 | ||
| Max. diameter of pumping concrete | mm | ≤40 | ||
| Filling height | mm | 1580 | ||
| Concrete slump range | cm | 8~23 | ||
| Placing boom | Reach height | m | 51.5 | |
| Reach depth | m | 36.1 | ||
| Slewingradius | m | 46 | ||
| Slewing angle | ° | ±270 | ||
| Unfolding angle of the 1st section | ° | 90 | ||
| Unfolding angle of the 2nd section | ° | 180 | ||
| Unfolding angle of the 3rd section | ° | 180 | ||
| Unfolding angle of the 4th section | ° | 240 | ||
| Unfolding angle of the 5th section | ° | 210 | ||
| Unfolding angle of the 6th section | ° | 120 | ||
| Stabilizer span | Longitudinal span of stabilizer | mm | 9540 | |
| Transverse span of front stabilizer | mm | 9150 | ||
| Transverse span of rear stabilizer | mm | 10060 | ||
| Others | Lubrication method | Automatic lubrication | ||
| Control method | Manual/remote control | |||
| Volume of water box | L | 1200 | ||
