4.5kw Precision Mini Lathe Machine Metalworking Metal Workpieces Horizontal Machining Center

Product Description

Product Description

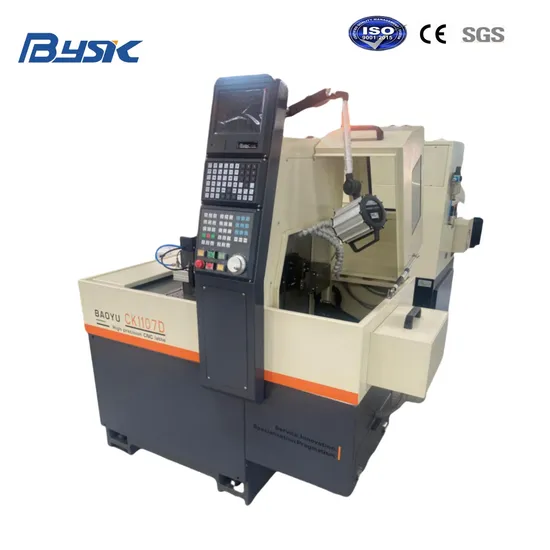

4.5kw Precision Mini Lathe Machine Metalworking Metal Workpieces Horizontal Machining Center
-CK1107D is a 3 axis sliding headstock lathe with 2 live heads
-Suitable for processing profile diameter ≤ Φ 7mm.
-Mainly suitable for Large-scale, Multi-variety and high-precision processing of slender shaft parts with large length/diamater ratio and small ,special-shaped parts.
Product Parameters

CK1107D Swiss type CNC Lathe Machine With 2 Power Heads

Power	Rated Voltage	Three-phase AC 380V
	Rated Frequency	50HZ
	Total Input Power	4.5kW
CNC System	BYSK	YZ150
	Minimum Set Unit	0.001mm
	X Axis Pulse Equivalent	0.0005mm
	Y Axis Pulse Equivalent	0.001mm
	Z Axis Pulse Equivalent	0.001mm
	Maximum Programming Size	±9999.999
	Cutting Speed	1--4000mm/min
	X Axis Rapid Feed Speed	15000mm/min
	Y Axis Rapid Feed Speed	15000mm/min
	Z Axis Rapid Feed Speed	15000mm/min
Main Spindle	Maximum Bar Diameter	Φ7mm
	Main Spindle Through-hole Diameter	Φ8mm
	Main Spindle Center Height from Ground	890mm
	Main Spindle Speed	0-5000r/min
	Main Spindle Motor Power	2kW
Travel	X Axis Travel	38mm(Diameter)
	Y Axis Travel	80mm
	Z Axis Travel	150mm
	X Axis Servo Motor Power	0.4kW
	Y Axis Servo Motor Power	0.4kW
	Z Axis Servo Motor Power	0.4kW
	Guide Rail Form	Linear Guide Rail

Gang Tooling System	Tools Arrangement	12pcs
	Turning& Milling Tools	8pcs
	Tool Size	8*8mm
	Front Drilling	6104Chuck 3pcs
	6104Chuck
Cooling System	Cutting Oil Motor Power	0.18kW
	Cooling Box Capacity	80L
Lubrication System	Motor Power	35W
	Capacity	1.5L
Pneumatic System	Input Compressed Air Pressure	0.4--0.6Mpa
Machine Size	Length * Width * Height	1415*700*1680
	Machine Weight	750kg

CK1107D Configurations
Item	Specification	Origins
CNC System	BYSK150 System	China Baoyu
Main Spindle Motor	2KW Absolute Value Servo Motor	Inovance+Lines
X Aixs Motor	0.4kW Absolute Value Servo Motor	Inovance+Lines
Y Axis Motor	0.4kW Absolute Value Servo Motor	Inovance+Lines
Z Axis Motor	0.4kW Absolute Value Servo Motor	Inovance+Lines
X Axis Screw Rod	185*2006	Taiwan Joint Venture
Y Axis Screw Rod	221*2006	Taiwan Joint Venture
Z Axis Screw Rod	300*2006	Taiwan Joint Venture
X Axis Guide Rail	HGH15	HIWIN/PMI
Y Axis Guide Rail	HGH15	HIWIN/PMI
Z Axis Guide Rail	HGH15	HIWIN/PMI

Detailed Photos
Body Materials
CNC Control System
Baoyu BYSK YZ150 :
Full functions, Easy operate,High cost-effective
We company already making control system have the experience over 20 years, and after long-term testing and feeback from the market , our control system is like as GSK, HNC,the functions is complete, and very easy to hand, almost get start half a day, G code , M code is generic.
But as a manufacturer of cnc lathe machine, we also accept the OEM&ODM, Like as print the customer's logo ,or change the system if customer request, like as the system of SYNTEC,FANUC,so on.
The cost of different control system is different, so pls contact us if you have the requirement of changing system.
Baoyu BYSK CNC-
We just want to do our best to meet customer's needs.

Inner Sturcture
Inner Structure Details Introduce:
--1.Left and right gang tooling structure, large quantity,fast tool change speed and good rigidity
--2.Mainly process all kinds of super slender parts
--3.Reasonable layout, small dimension and littlel floor area.
--4.The fixed guide sleeve can process slender shafts with a length of less than 150mm,keep the processed workpieces maintain relatively high coaxiality and finishing. It is very suitable for turning workpieces with the length times to multi diameter ratio.
--5. With 2 power heads, work more efficient.
Electrical Cabinet & Driver Cabinet
With Configurations
CK1107D CNC Lathe will configurated with oil film bar feeder, with high-pressure oil pump,oil mist machine, improve the performance of lathe,extend the life of lathe.
Processed Product Display

Some Suggestions
--Max profile diameter within 7mm, suggest model B07,CK1107. B07 is with dual spindle type, CK1107 is single spindle type.
--Max profile diameter within 13mm, suggest our model B13,CK1113.
--CK0620A2 particularly suitable for processing of complex-shaped parts such as linear/taper/arc threads, Configurated with center frame can process slender shaft parts.
--CK0625A is suitable processing of various precision parts such as instruments/meters/electronic connectors/optics/ automotive and motorcycle parts/small hardware.
--CK32A3 is multi-functional Turning&Milling CNC Lathe, CK32A3-B is with dual spindle based on CK32A3.
--X42 is slant-bed cnc lathe, suitable for processing of shaft/disc parts with complex/variety of sizes/high precision request.
--More details pls contact us, or send your drawings of profiles, we will give you professional recommendation.
Company Profile
Anhui Yuzhou Machine Tool Co.,ltd (BYSK Baoyu CNC ) is a comprehensive high-tech enterprise integarting R&D,Production,Sales &services of CNC system, CNC machine tool, automatic production line, Industrial robot, Internet of things and other products. BYSK CNC formerly known as Zhejiang Baoyu CNC Machine Tool Co.,ltd, and has a manufacturing base covering an area of 35,000 square meters in Taizhou,Zhejiang; It has a R&D center in Hangzhou, named as Hangzhou AOGE CNC Technology Co.,ltd. 2013 year, Anhui Yuzhou Machine Tool Co.,ltd bulit at Anhui Guangde city, covers 100,000 square meters.
We company specializes in the production of CNC SWISS-type/Sliding Headstock Lathes,High-Precision Gang-type CNC Lathes,Turning&Milling Compund Centers, Flat Bed CNC Lathe Machines,Slant-Bed CNC Lathes, Horizontal CNC Lathes, Vertical CNC Lathes,Single spindle CNC Machinery,Automatic Double-Spindle Lathes etc. Our Lathes all adopts absolute value servo and bus connection. It's over 10 on invention patens, utility models and design patens. It's products are widely appled in Communication Equipments,Connectors, 5G Products, Mobile Phones, Household Applications, War Industry, Spaceflight, Medical Devices, Car, Water Heating, Miniature Shaft, Optical Instrument, Timepiece, Glasses and various hardware accessories. Cost-effective products are ideal equipment for automatic batch production in all fields.
We adopts modern management concepts, deepends internal managements, we continuously improved the manufacturing process and services of products, it has successfully passed ISO9001(2016 Quality Management System), ISO14001(2016 Environment Management System), Measurement Management System Certificate, and obtained Good Standardization Certificate, Otherwise, we products also have passed CE Certificate and other authoritative certifications.
As an independent production enterprise, we always have the concept of improving the added value of individual products, Implemented the mission of "Provide high-quality products and best servises, and create the most hightest value for our customers", Carry out the business philosophy of " Service,Innovation,Specialization,Pragmatism", Finally realizes our vision of "Provide the most cost-effective machine tools for the world."
Packaging & Shipping
FAQ
1. Do you accept OEM/ODM?
Reply: Yes. OEM/ODM are welcomed.
2.How many years of production experience does your company have?
R: Over 10 years,We have several professional and experienced technical instructors to guide you for after-sales.
3. Is it possible to deliver quickly (or how many days is the delivery guaranteed, the delivery deadline)?
R: Yes, in common condition , lead time about 30- 45 work days
4.What are the after-sales services?
R: We have professional technical team, can solve your problem 24 hours online.
5. Does this product accept customized services? What specific aspects can be customized? (Such as color, shape, size, etc.;)
R: Yes , customized service is workable , like print your company logo etc.
6. Do you accept small quantity orders (or what is the minimum order quantity, etc.)?
R: Yes, 1 set machine also be available.
7. What are the characteristics of the material of this product?
R: High quality gray cast iron with CE Certificate.
8. What are the unique functions and features of this product?
R: Comparable to European quality Swiss type cnc lathe machine, With high cost-effective, and obtained multiple domestic certifications in China, in addition, As an independent production enterprisewe have ourself technical research team.
9. What are the application areas or uses of this product?
R: Widely appled in Communication Equipments,Connectors, 5G Products, Mobile Phones, Household Applications, War Industry, Spaceflight, Medical Devices, Car, Water Heating, Miniature Shaft, Optical Instrument, Timepiece, Glasses and various hardware accessories.
10. Is it in stock? Can it be wholesaled?
R: Some models have, need confirm
11. Are there any second-hand products for sale?
R: No,sorry
12. What cnc system you use?
R: Our cnc operate system is the BYSK190, this is our company's own brand, and has always been popular in the market because of its easy operation and comprehensive functions, in addition, LNC system also be optional.
13. Are you factory ? and where is your factory located ? How can i have a visit there ?
R: Yes it is. Our company is located at Jianshe Road No.1, Economical District, Guangde,Xuancheng City,Anhui Pronvince. You are warmly welcomed to visit us.
