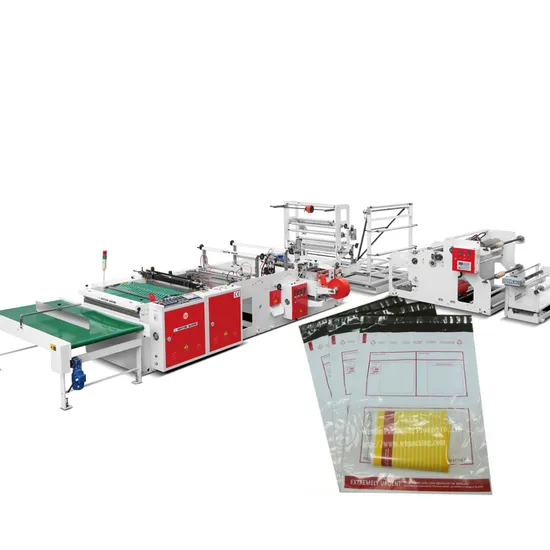

Chovyting Fully Autoamtic High Speed Courier Bag Making Machine DHL

Product Description

Main Features 1)Newly design DHL bag with longitudinal seal knife structure.
2)Newly design side sealing water circulate cooling device.
3)Top continuous sealing device.
Optional
1.Bottom seal and double seal knife.
2.OPP flower knife.
3.Hot sealing device(for producing DHL bag).
4.Perforation line device.
5.Adhesive tape device.
Technical Parameter

Type	CW-800SBD+DHL
Length of bag making (height of bag)	250-750mm
Width of bag making	250-600mm
Speed of bag making	DHL bag	70pcs/min
	Die cut bag	90pcs/min
	OPP bag	110pcs/min
Top folding	50-75mm
Bottom Gusset	20-60mm
Total power	10KW
Machine weight	2300kg
Machine dimension	6500X1600X1870mm
Air comperssor	5HP

Unwinding 1.The unwinder with automatic loading and with max.diameter of the unwinder is 800mm,
2.The unwinder shaft adopt plug-shaft.and air shaft alex
3.The Unwinder with automatic EPC device and photocell tracking
4.With automatic tension control and magnetic power 2.5KG
5.Equipped with Triangle folding device 1600mm ( up of unwinder / separate of unwinder ) Hot melt sprayer
1.Spray the hot melt line according to customers' request automatically
2.It is both available for adhesive tape and hot melt bag Cutting knife and belt 1. side sealing knife principal axis transmission belt cylinder lifting and down.
2. Side sealing knife with water cycle cooling system.
3. Side sealing knife adopt best of breed material, high temperature heating ametabolic.
4. Side sealing knife with concealed style heating tube, temperature steady
5. Turnover heavy side sealing knife, humanism structure design, turn up 60°from one size, easy to cleaning.
6. With one set double sides weld knife and one set bottom weld knife exchange with side weld knife
FAQ
1) Is your company a factory or a trading company?
We are a factory.
2) Where is your factory? How can i visit your company?
Our factory is located in Ruian, Zhejiang Province, China. It takes about 40 minutes from Shanghai to take the plane(5 hours for
train). All our clients from home and abroad are warmly welcomed to visit us.
3) What is the suitable material for your machines?
PE, OPP, laminated material ,etc are suitable for our machines
4) What kind of machine do you have ?
We are specializing in manufacturing various of plastic bag making machine, laminated bag making machine, slitter, film blowing
machine, etc...
5) How many years of your factory?
Our company is established since 1999.
6) What about the development of your company?
Titled as "National Key and New Products" and Pass identification of the provincial new product, honored as" Patent Model
Enterprise" as well.
7) How many exhibition do you take part in?
We start to took part in CHINAPLAS from 2008-2019,BANGLADESH, INSTANBUL, MOROCCO, MEXICO, EGYPT,
UZBEKIKSTAN, DUBAI E,THAILAND, INDIA EXBIHITION, K SHOW etc...
8) How many agent do your company have?
We have agents from Chile, Argentina, South Africa, Egypt, Israel, Lebanon, Syria etc...
9) How many workers of your company?
More than 150 workers.
